| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | UN38.3 IEC MSDS DG License |
| Model Number: | 451525 |
| Minimum Order Quantity: | 5000PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | export carton ,export plastic tray |
| Delivery Time: | 5-8 WORKING DAYS |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 50000PCS PER DAY |
| Battery Type: | Lithium Polymer Battery | Battery Voltage: | 3.7V |
|---|---|---|---|
| Battery Capacity: | 100mAh | Battery Size: | Thickness 4.5mm Width 15mm Length 25mm |
| Battery Cycle Life: | More Than 800 Cycles | Guarantee: | One Year |
| High Light: | high capacity lithium polymer battery,high power lipo battery |
||

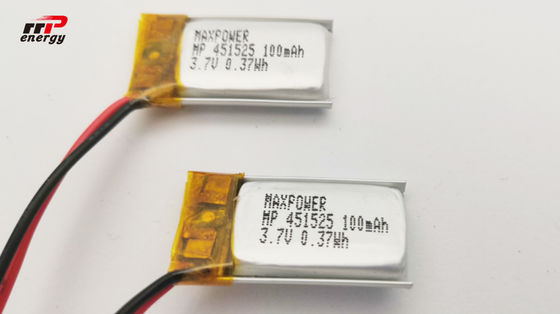

3.7V 451525 100mAh Lithium Polymer Battery Pack with PCM
Small size lipolymer battery pack with extra light weight
support 1C charge current and 1C discharge current
high teerature and low teerature battery design can be available
Seiko PCM with red and black wire to support OEM ODM project
100% in house testing with OQC report and Lab. testing data
MSDS UN38.3 and hongkong DG license to support sea air and courier delivery
3.7V 451525 100mAh 0.37Wh lithium Polymer battery specification :
| 451525 3.7V 100mAh | Specification |
| LiPolymer battery | |
| Rated capacity | 105mAh 0.2C discharge |
| Min. Capacity | 100mAh 0.2C discharge |
| Normal Voltage | 3.7V |
| initial resistance | less than 400ohms |
| O.C.V | More than 3.7V |
| Charge ending voltage | 4.2V +/-0.03V |
| Discharge ending voltage | 3.0V |
| standard charge method | 0.2C constant current charge to 4.2V |
| then constant voltage charge till charged | |
| current declines to 0.02C | |
| charge current | standard charge 0.2C |
| Rapid charge 0.5C | |
| charge time | standard charge 5.5-6.5hours |
| rapid charge 1.5-2.5hours | |
| Max.Charge current | 0.5C(10-45 degree) |
| Standard discharge current | 0.2C constant current end voltage 3.0V |
| Max.discharge current | 1.0C (0-55 degree ) |
| Cell iedance | max. 300mohms 4.2V AC 1k Hz measured |
| Operation teerature | -10-55 degree |
451525 100mAh 3.7V lithium Polymer battery drawing and dimension info.:
3.7V 100mAh battery application :
Medical devices battery ,scaler battery pack,back up battery ,ups battery pack.
RC Models battery pack,RC hobbies battery pack,robot battery pack,emergency
lighting battery pack etc.
3.7V small size liPolymer battery similar models list as below .
More lithium polymer battery models and sale testing ,contact maxpower Lucy directly.
Lucy whatsApp: 0086-13714669620
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
| Lithium Polymer model | Capacity (mAh) | voltage | fresh stock quantity(PCS) |
| 301630 | 110 | 3.7V | 6760 |
| 301730 | 75 | 3.7V | 54141 |
| 302030 | 140 | 3.7V | 25 |
| 302035 | 170 | 3.7V | 20798 |
| 302040 | 200 | 3.7V | 1184 |
| 352131 | 180 | 3.7V | 7893 |
| 402030 | 200 | 3.7V | 12376 |
| 402030 | 200 | 3.7V | 12859 |
| 402030 | 180 | 3.7V | 3964 |
| 402030 | 170 | 3.7V | 7032 |
| 402323 | 150 | 3.7V | 4861 |
| 411530 | 150 | 3.7V | 129 |
| 421530 | 150 | 3.7V | 237 |
| 422030 | 200 | 3.7V | 892 |
| 451220 | 70 | 3.7V | 17914 |
| 451430 | 150 | 3.7V | 346 |
| 451535 | 200 | 3.7V | 355 |
| 451730 | 200 | 3.7V | 10165 |
| 451830 | 200 | 3.7V | 542 |
| 501332 | 170 | 3.7V | 14211 |
| 501520 | 100 | 3.7V | 10 |
| 501622 | 140 | 3.7V | 1042 |
| 502025 | 200 | 3.7V | 139 |
| 522025 | 200 | 3.7V | 540 |
| 551430 | 200 | 3.7V | 21 |
| 551525 | 150 | 3.7V | 1268 |
| 581525 | 180 | 3.7V | 497 |
| 601525 | 180 | 3.7V | 1098 |
| 601525 | 180 | 3.7V | 256 |
| 602020 | 180 | 3.7V | 276 |
| 681818 | 145 | 3.7V | 1890 |
| 701818 | 150 | 3.7V | 40 |
| 701821 | 180 | 3.7V | 7735 |
| 702020 | 200 | 3.7V | 4 |
| 823448 | 150 | 3.7V | 193 |
