| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | CE UL CB UN38.3 MSDS IEC ENC BIS |
| Model Number: | 18650 2500mAh |
| Minimum Order Quantity: | 1000PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton ,Box ,Tray. |
| Battery Type: | Li-ion Cell | Capacity: | 2500mAh |
|---|---|---|---|
| Voltage: | 3.7V | Weight: | 45.5g |
| Guarantee: | One Year | Life Cycle: | 700-800 Cycles |
| Size: | D18.6mm*H69.5mm | Initial Iedance: | Max 20mΩ |
| Max Discharge Current: | 3C 7500mA | Quick Charge: | 1C 2500mA |
| High Light: | 18650 2500mAh 3.7V Lithium Ion Batteries,18650 Lithium Batteries For GPS Tracker,2500mAh 3.7V Lithium Ion Batteries |
||

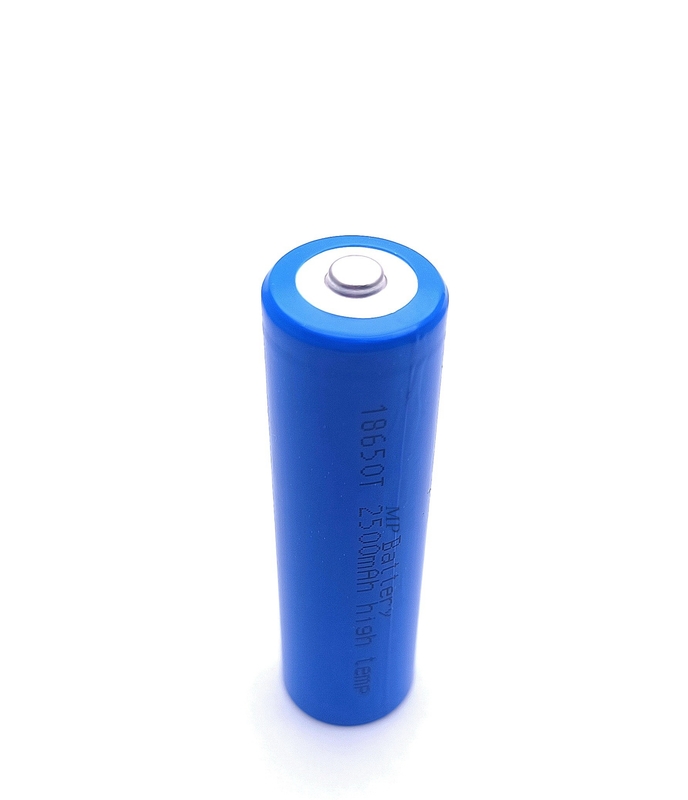

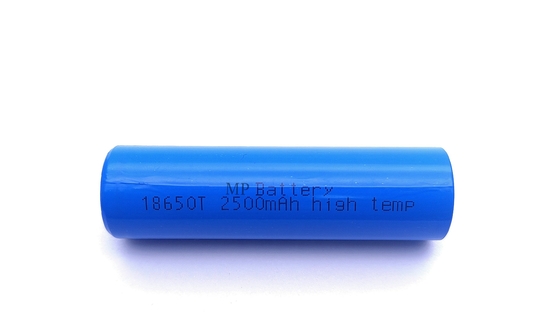

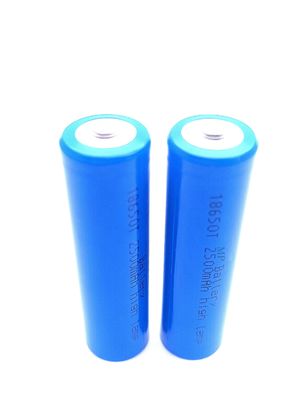

18650 2500mAh 3.7V Rechargeable cylindrical Lithium Ion Batteries 3.7V 85℃ operation
condition with CE BIS IEC2133 CB certification
Specification of the 18650 2500mAh battery:
| NO | Items | Description |
| Normal Specification | ||
| 1 | Nominal voltage | 3.7V |
| 2 | Normal capacity | 2500Ah |
| 3 | Minimum capacity | 2450Ah |
| 4 | Internal resistance | ≤20mΩ(with ptc) |
| 5 | Cell | 18650--3.7V/2500mAh |
| Standard Charge | ||
| 6 | Battery charging teerature range | 0~45℃ |
| Battery discharging teerature range | -45～85℃ | |
| 7 | Normal charge/discharge current | 1C(2500mAh) |
| 8 | Allowed maximum charge current | 1C(2500mah 10～45℃) |
| Allowed maximum discharge current5 | C(7500mah (40℃>T≥10℃) | |
| Standard Discharge | ||
| 9 | Discharge cut-off voltage | 3.0±0.05 V |
| Mechanical Characteristics | ||
| 10 | Size | Height : 65.5 mm Max Diameter :18.3mm Max |
| 11 | Weight | 42g |
| 12 | Cycle life(100%DOD) | ≥500cycle With standard charge and discharge |
| Storage | ||
| 13 | Storage Teerature&a; Humidity Range | Short: within one month -20~35℃, 45~75%RH |
| Long term: above one month -10~30℃, 45~75%RH | ||
More pics.
Application :
GPS tracker, Torches , Flash light ,power tools , LED light , Emergency lighting, Toys ,
Robot ,Medical device ,sweeper , E-Bike ,Consumer devices ETC.
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact me freely, wish 13years experience in battery area can help you out
in your project.
