| Place of Origin: | China |
| Brand Name: | MaxPower/OEM/China TOP brand |
| Certification: | CE UL CB UN38.3 MSDS IEC ENC BIS |
| Model Number: | 18650 2600mAh 11.1V |
| Minimum Order Quantity: | 1000PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton ,Box ,Tray. |
| Battery Type: | Li-ion Cell | Capacity: | 2600mAh |
|---|---|---|---|
| Voltage: | 3.7V | Weight: | 150g |
| Guarantee: | One Year | Life Cycle: | 1000 Cycles |
| Internal Resistance: | ≤170 MΩ(with PTC、CID) | Size: | D21mm*H68.5mm*55.5mm |

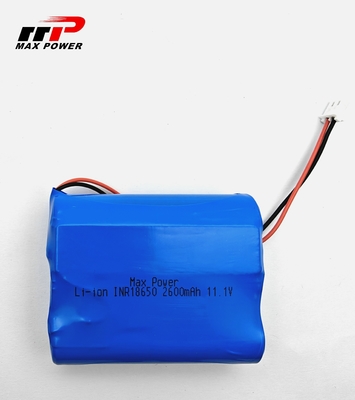

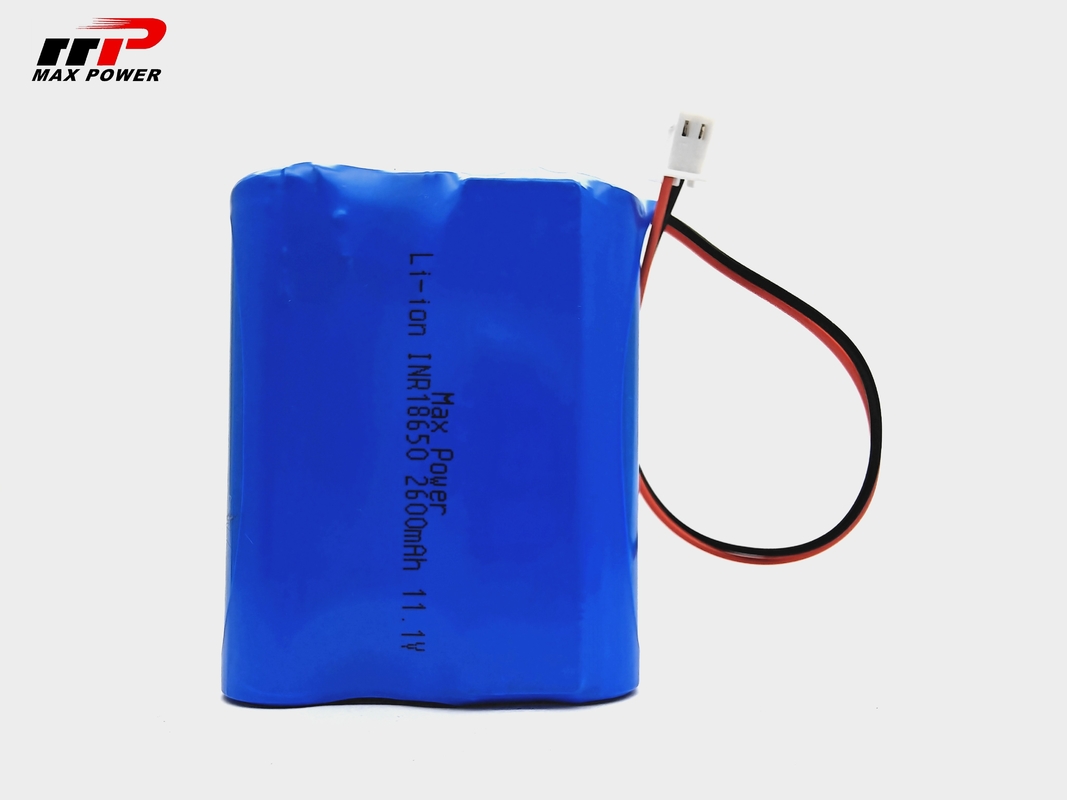

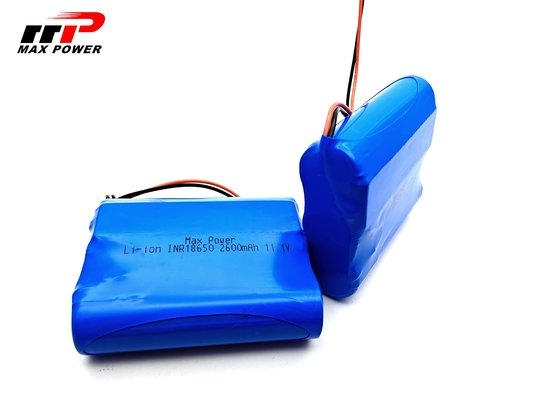

2600mAh 18650 11.1V Lithium Ion Rechargeable Batteries high teerature cell
18650 2600mAh 11.1V Rechargeable cylindrical Lithium Ion Batteries CE BIS IEC2133 CB UL
Specification of the 18650 2600mAh 11.1V battery:
| NO | ITEMS | SPEC |
| 1 | Cell and pack supplier | Max power industrial co.,ltd |
| 2 | Diameter*Height: (Lithium Ion 18650 size) | 18*65mm |
| 3 | Pack size: | 68.5* 55.5*21mm |
| 4 | wire: | 140+/-5mm |
| 5 | Nominal Voltage: | 11.1V |
| 6 | Nominal Capacity: | 2600mAh |
| 7 | max constant charging current: | 2600mA |
| 8 | max discharging current: | 3000mA |
| 9 | Discharge cut off voltage: | 8.1V |
| 10 | Initial iedance | Max 170mΩ |
| 11 | Standard charging ways: | CC / CV |
| 12 | Cycle life | >300 |
| 13 | battery cell | Li-ion / Lithium Ion rechargeable |
| 14 | Weight | Approx 150g |
More pics.
Application :
Aircraft, spacecraft, high-speed trains, automobiles, motorcycles, power supplies, lighting, emergency light and
electric tools ETC.
POWER CELL(high rate for power tools)
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 14500 | 14500 | 850 | 3.6 | ≤70 | 2.75 | 1.7A(2C) | above 300 | -20~60 |
| 2 | 18650 | 18650P | 2000 | 3.6 | ≤20 | 2.75 | 20.0A(10C) | above 300 | -20~60 |
| 3 | 18650T | 2000 | 3.6 | ≤40 | 2.75 | 6.6A(3C) | above 500 | -40~90 | |
| 4 | 18650P5 | 2200 | 3.6 | ≤20 | 2.75 | 11.0A(5C) | above 5300 | -20~75 | |
| 5 | 18650P8 | 2500 | 3.6 | ≤18 | 2.5 | 30A(12C) | above 250 | -20~80 | |
| 6 | 18650M6 | 2600 | 3.6 | ≤35 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 7 | 18650M7 | 2600 | 3.6 | ≤30 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 8 | 18650P9 | 2900 | 3.6 | ≤40 | 2.5 | 8.7A(3C) | above 1000 | -20~60 | |
| 9 | 18650M9 | 3200 | 3.6 | ≤40 | 2.5 | 9.3A(3C) | above 1000 | -20~60 | |
| 10 | 21700 | 21700F2E | 5000 | 3.62 | ≤25 | 2.5 | 14.4A(3C) | above 1000 |
-20~60 |
Energy Cell:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 18650 | 18650F56 | 2200 | 3.7 | ≤60 | 3 | 2.2A(1C) | above 300 | -20~60 |
| 2 | 18650R8 | 2600 | 3.7 | ≤60 | 3 | 2.6A(1C) | above 300 | -20~60 | |
| 3 | 18650F30 | 3000 | 3.7 | ≤60 | 3 | 4.5A(1.5C) | above 300 | -20~50 | |
| 4 | 18650L9 | 3350 | 3.6 | ≤60 | 2.5 | 4.8A(1.5C) | above 300 | -20~50 | |
| 5 | 21700 | 21700F2 | 5000 | 3.62 | ≤40 | 2.5 | 7.5A(1.5C) | above 300 | -20~50 |
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact JACKIE freely, wish 13years experience in battery area can help you out
in your project.
