| Place of Origin: | CHINA |
| Brand Name: | MaxPower |
| Certification: | UL IEC UN38.3 |
| Model Number: | 3.6v 80mAh |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 20pcs/box, 480pcs/ctn |
| Delivery Time: | 3-30days according the qty |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300000pcs/day |
| Material: | NI-MH | Dimension: | 3.6v NIMH Battery |
|---|---|---|---|
| Capacity: | 80mAh | Voltage: | 3.6V |
| Type: | NI-MH Rechargeable Battery | Internal Iedance: | ≤300mΩ |
| Advantage: | Ready To Use | ||
| High Light: | Customized NiMH Button Cell,80mAh NiMH Button Cell,Button NIMH Rechargeable Batteries |
||

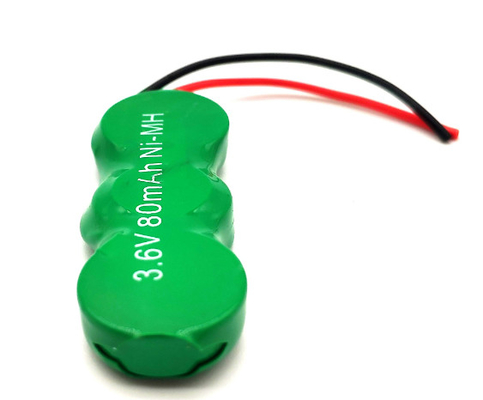

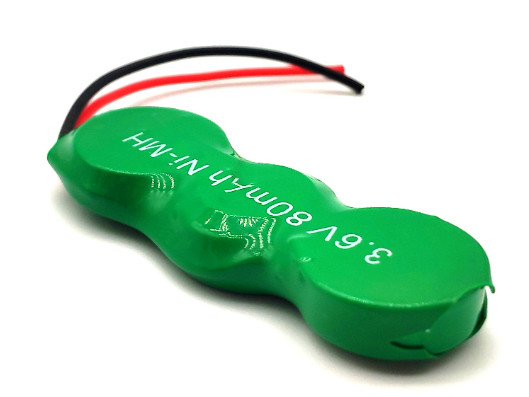

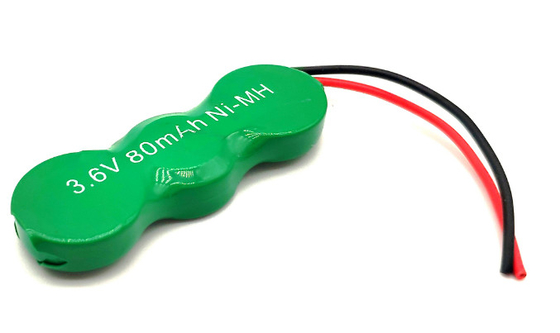

Customized Ni-MH 3.6V 80mAh Cell NiMH Rechargeable Button Battery pack
1. Low self discharge and ready to use type nimh button coin cell nimh battery
2. The rechargeable button battery with pins wires or connectors to meet different application
3. Safety battery struction and maintenance free cyle life more than 500 cycles
4. Fast delviery support the overseas air sea and courier delivery
5. stable voltage output keep fast charge and high discharge long working hours
Specification of flat nimh battery pack 3.6v 80mAH
Sale delivery: 3 -4days.
Mass production period: 10-15days
2. Discharge characteristic
3. Safety test
Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C) ≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until the cell teerature returns to ambient teerature.(cross section of the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then leave for 24hrs,check battery before / after drop
| Mode | Normal Voltage(V) | Capacity(mAh) | Dimension(max) | Standard Charge | Trikle Charge current(mA) | Reference Weight(g) | ||
| Diameter(mm) | Height(mm) | Current(mA) | Time(H) | |||||
| -B20H | 1.2 | 18 | 11.6 | 3.2 | 1.8 | 14 | 0.6 | 1.5 |
| -B40H | 1.2 | 40 | 11.6 | 5.2 | 4 | 14 | 1.5 | 1.8 |
| -B80H | 1.2 | 80 | 15.3 | 6.1 | 8 | 14 | 3.0 | 3.5 |
| -B110H | 1.2 | 110 | 15.3 | 7.7 | 11 | 14 | 4.0 | 4.5 |
| -B160H | 1.2 | 160 | 23.4*15.1 | 5.2 | 16 | 14 | 5.0 | 6.0 |
| -B250H | 1.2 | 250 | 25.0 | 6.3 | 25 | 14 | 8.0 | 10.0 |
| -B300H | 1.2 | 300 | 25.0 | 7.3 | 30 | 14 | 9.0 | 11.5 |
| -B330H | 1.2 | 330 | 25.0 | 8.4 | 33 | 14 | 10.0 | 12.5 |
| Size | Model No. | Nominal Voltage (V) | Nominal Capacity(mAh) | Dimension with Tube | Weight Approx.(g) | |
| Diameter(mm) | Height(mm) | |||||
| AAA | H-2/3AAA300 | 1.2 | 300 | 10.5 | 29.0 | 8.5 |
| H-2/3AAA350 | 1.2 | 350 | 10.5 | 29.0 | 9 | |
| H-AAA650A | 1.2 | 650 | 10.5 | 44.5 | 12 | |
| H-AAA700A | 1.2 | 700 | 10.5 | 44.5 | 12.5 | |
| H-AAA900 | 1.2 | 900 | 10.5 | 44.5 | 14 | |
| H-AAA1000 | 1.2 | 1000 | 10.5 | 44.5 |
16 |
|
5. nimh Timer battery replacement :
