Cylindrical Cell 3V Lithium Manganese Dioxide Lithium Primary Batteries

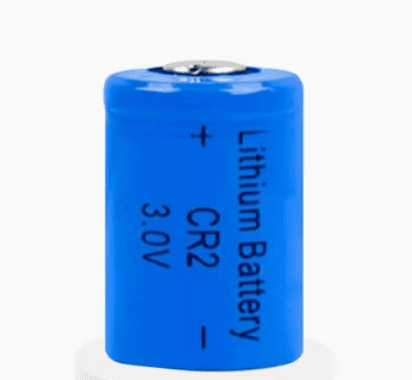

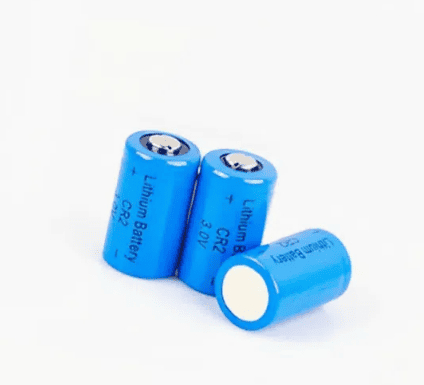

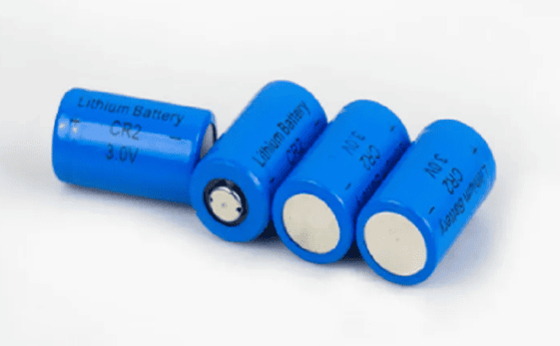

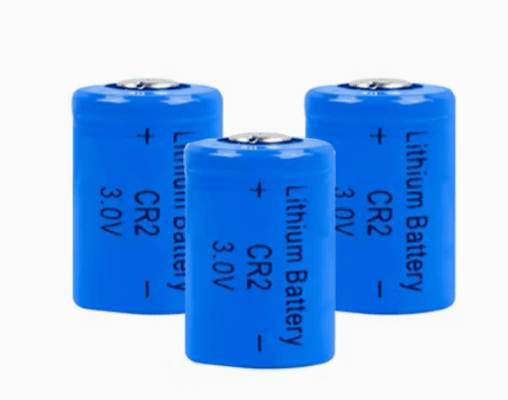

Lithium/Manganese Dioxide (LiMnO2) Battery CR2 also called CR15270
It is Non-Rechargeable Cell .
1.The battery with laser and hermetic glass-to-metal welding sealed
that keep the CR2 battery with unique
performance in wet environment.
2.Extra longer battery life. 5-year leak-free shelf life,
Fast flash performance consistent, very short recovery time
3. Superior drain capability 800mA and 1500mA pulse discharge
Stable discharge characteristics
4. OEM&ODM customized battery pack service ,Supports various battery pack design configurations
5. Low self-discharge( (less than 2% after 1 year of storage at room temperature)
6. Full official certificate to overseas market and delivery via courier sea or air delivery door to door service
| NO |
Battery Type |
primary lithium battery CR2 |
| 1 |
Model No. |
Li-MnO2 CR2 CR15270 |
| 2 |
Nominal Voltage |
3.0V |
| 3 |
Nominal Capacity@0.2C |
800mAh |
| 4 |
Open Circuit Voltage |
3.10V |
| 5 |

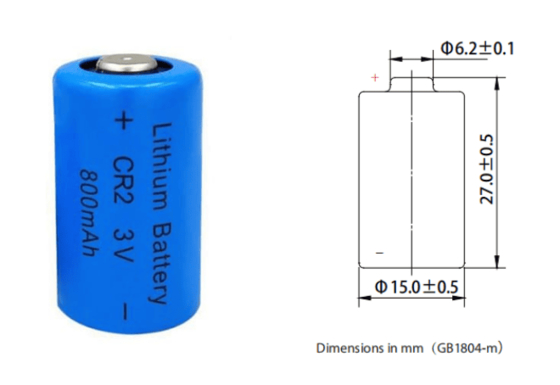

Dimension |
Diameter: 15.5X Height :27mm |
| 6 |
Max. Continuous Current |
800mA |
| 7 |
Max. Pulse Current |
1500mA |
| 11 |
Weight |
13g |
| 12 |
Working temperature |
-40℃~85℃ |
| 13 |
Battery HS Code |
8507600090 |
| 14 |
Quality Guarantee |
12months |
| 15 |
Self-discharge Rate |
Less than 1% per year |
| 16 |
Battery Certificate |
MSDS KC CE CB IEC62133 UL PSE |
Contact us directly for quotation and data sheet :
Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
| Rechargeable or not |
non-rechargeable Primary lithium battery |
| Service |
OEM ODM accept customized battery pack |
| Place of Origin |
China |
| Sample Lead Time |
5-7 days |
| Bulk order L/T |
Within 20-25 days
|
Li Mno2 CR2 battery cell Packing compactly and shipping safely
Inner box+carton box,or as customzied requirement
Cylindrical Li-MnO2 Battery With High Power
| Model |
Specification |
Size φmm*mm |
Weight(g) |
Voltage V |
Capacity/Current(mAh/mA) |
Max. discharge Current(mA) |
working temprature ℃ |
Cut off Voltage V |
| CR14250E |
1/2AA |
φ14.5*25.2 |
8.5 |
3 |
650/ 5 |
250 |
-40~+70 |
2.0 |
| CR14505E |
AA |
φ14.5*50.5 |
17 |
3 |
1400/ 5 |
1000 |
-40~+70 |
2.0 |
| CR17335E |
2/3A |
φ17.0*33.5 |
17 |
3 |
1500/ 5 |
1000 |
-40~+70 |
2.0 |
| CR17450E |
AG |
φ17.0*45.0 |
26 |
3 |
2200/ 10 |
1000 |
-40~+70 |
2.0 |
| CR17505E |
A |
φ17.0*50.5 |
30 |
3 |
2400/ 10 |
1000 |
-40~+70 |
2.0 |
| CR26500E |
C |
φ26.2*50.5 |
55 |
3 |
5000/ 10 |
1000 |
-40~+70 |
2.0 |
| CR34615E |
D |
φ34.0*61.5 |
125 |
3 |
12000/ 10 |
2000 |
-40~+70 |
2.0 |
| CR14250H |
1/2AA |
φ14.5*25.2 |
12 |
3 |
900 |
7 |
-40~+70 |
2.0 |
| CR14250B |
1/2AA |
φ14.5*25.2 |
12 |
3 |
800 |
7 |
-40~+70 |
2.0 |
Li-MnO2 123A Batteries
| model |
Size φmm*mm |
Weight(g) |
Voltage V |
Capacity/Current(mAh/mA) |
Max. discharge Current(mA) |
working temprature ℃ |
Cut off Voltage V |
| CR2 |
φ15.5*27.0 |
13 |
3 |
850/ 5 |
800 |
-40~+70 |
2.0 |
| CR-P2 |
φ35*19.5*36 |
42 |
6 |
1500/ 5 |
1000 |
-40~+70 |
4.0 |
| CR123A |
φ17.0*34.5 |
16 |
3 |
1500/ 5 |
1000 |
-40~+70 |
2.0 |
| 2CR5 |
φ34*17*45 |
39 |
6 |
1500/ 5 |
1000 |
-40~+70 |
4.0 |
More CR battery model list ,Contact maxpower Lucy directly for quotation and catalogue.
Email: Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
