| Place of Origin: | China |
| Brand Name: | Maxpower |
| Certification: | CE UL CB KC BIS |
| Model Number: | 523450 3.7V 1000mAh |
| Minimum Order Quantity: | 5000PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton , export tray , Small white box |
| Supply Ability: | 100000PCS |
| Material: | Lithium Polymer Battery | Capacity: | 1000mAh |
|---|---|---|---|
| Voltage: | 3.7V | Size: | Thickness 5.2mm Width 34mm Length 50mm |
| Guarantee: | One Year | Type: | High Temperature Design |
| High Light: | IEC62133 Lithium Polymer Battery,523450 lithium ion polymer rechargeable battery,IEC62133 rechargeable li ion polymer battery |
||

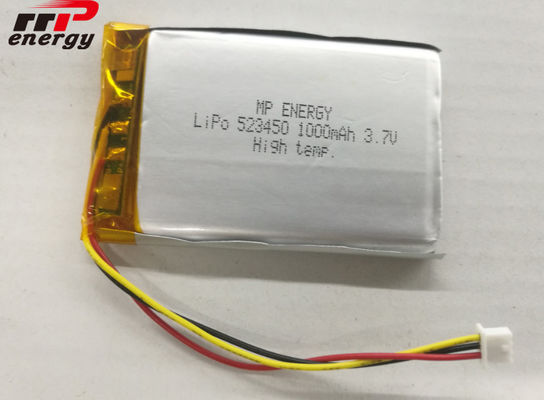

IEC62133 Rechargeable Lithium Polymer Battery GPS 523450 3.7V 1000mAh
523450 1000mAh Lithium Polymer Battery 3.7V GPS Battery High temperature
1.Battery certificate CB IEC62133 MSDS UN38.3 BIS full certificate document
2.High temperature LiPolymer Battery with fast charge technology
3.3.7V 1000mAh with customized size and shape
4.Imported Seiko PCM with one year quality guarantee
5.High power discharge and fast charge design can be available
6.MSDS UN38.3 certificate to support safty delivery via sea and air
LiPolymer battery Cell 523450 high temperature GPS battery 3.7V 1000mAh Specification.:
| No. | Item | Specificatio |
| PACK performance PACK | ||
| 1 | Rated Capacity | 1030mAh , 0.2C Discharge |
| 2 | Minimum Capacity | 1000mAh , 0.2C Discharge |
| 3 | StandarddischargingCurrent | 0.2C |
| 4 | Normal Voltage | 3.7V |
| 5 | InitialImpedance | ≤180mΩ |
| 6 | O.C.V | ≥3.7V |
| 7 | Charge Ending Voltage | 4.2V |
| 8 | DischargeEnding Voltage | 3.0V |
| 9 | Standard charging method | 23±2℃ 0.2C constant current charge to 4.2V, then constant voltage 4.2V charge till charged current declines to 0.02C 23±2℃ 0.2C CC |
| 10 | Charge current | Standard charge:0.2C |
| Rapid charge:0.5C | ||
| 11 | charging Time | Standard charge:5.5～6.5 h |
| Rapid charge:1.5～2.5 h | ||
| 12 | Max. Charging Current | 0.5C |
| 13 | Standard discharging Current | Constant current 0.2 C end voltage 3.0V( |
| 14 | Max. Discharging Current | 1C |
| 15 | Operating environment | Charging: 10℃~45℃max.85%RH |
Application :
Vehicle Tracking System,VTS,GPS
Lighting fixture,tire pressure tester
Gas monitor ,Vacuum Cleaner ,Sweeper
buckup power,Ebike, scooter
wearable devices,headphone,consumer devices
