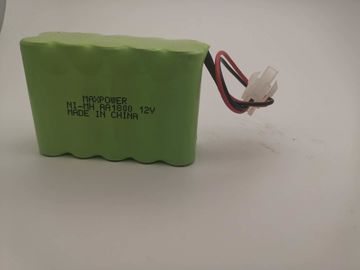

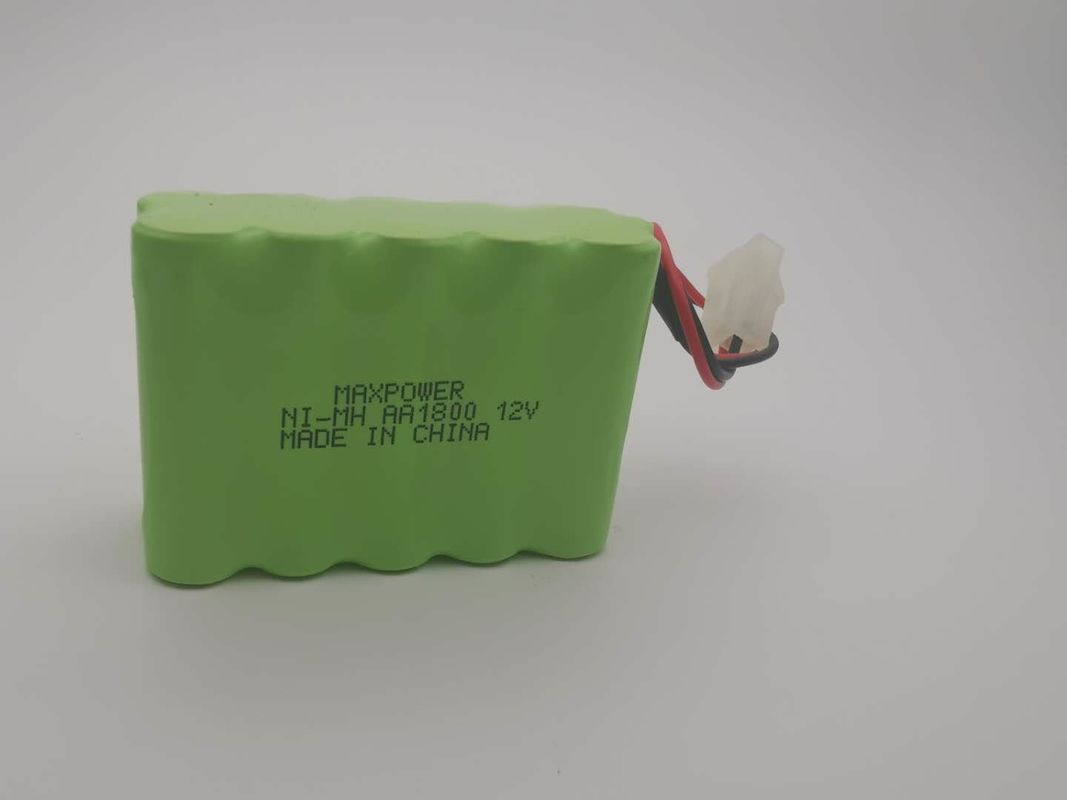

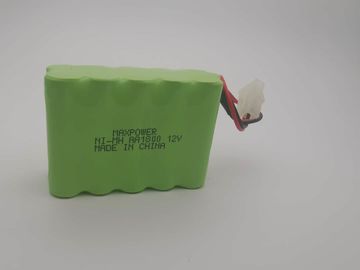

Low Te Rechargeable Nimh Battery Pack AA 1800 12V 500 Cycles With Trick Charge

Low Te Rechargeable Nimh Battery Pack AA 1800 12V 500 Cycles With Trick Charge

  • Low Te Rechargeable Nimh Battery Pack AA 1800 12V 500 Cycles With Trick Charge
  • Low Te Rechargeable Nimh Battery Pack AA 1800 12V 500 Cycles With Trick Charge
Low Te Rechargeable Nimh Battery Pack AA 1800 12V 500 Cycles With Trick Charge
Product Details:
Place of Origin: CHINA
Brand Name: MAXPOWER
Certification: UL , KC , IEC62133
Model Number: AA2000 mAh 12V
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Negotiation
Packaging Details: Standard Export Carton
Delivery Time: 10000 PCS Per Day
Contact Now
Detailed Product Description
Type: NI-MH Rechargeable Battery Size: AA
Application: Power Tools Warranty: 13 Months
Cycle Life: More Than 500 Cycles Color: Green
High Light:

rechargeable nimh aa batteries

,

charging nimh batteries

Low Te Rechargeable Nimh Battery Pack AA 1800 12V with trick charge for Emergency lighting with UL, KC ,IEC 62133



Type Rechargeable Nickel Metal Hydride Battery



      Model AA1800mAh 12V

Cell Size AA

Nominal voltage 12V

Typical Weight about 270g(ref)



Capacity (20, discharge at 0.2Cto ccv=10.0V)

Typical 1830mAh(ref)

Minimum 1800mAh



Charge condition(20℃)

Charging Condition charge at 180mA for 16h

Fast Charge 900mA~1800mA(0.5C~1C)

-△V: 50mV/Pack

dT/dt:0.8℃/min (0.5C)

dT/dt:0.9℃/min (1C)

Tmax: (45~55)

Time: charge capacity reach to 105% nominal capacity

Trickle charge 90mA~180mA (0.05 C ~0.1 C)

Max over-charge current 180mA charge for 48 hrs



Discharge condition

Discharge cut off voltage 10.0V

Maximum Discharge Current 1800mA(1C)



Storage Teerature(65±20%RH)

Storage(1year) -20℃~25℃

Storage(six month) -20℃~35℃

Storage(1 month) -20℃~45℃

Storage(7days) -20℃~55℃



Operation teerature(65±20%RH)

Discharge -30℃~60℃

Charge 0℃~45℃

Fast charge 10℃~45℃

Trickle charge 0℃~45℃

1,PERFORMANCE

Unless otherwise stated, tests should be done within one month of delivery under the following conditions

Ambient Teerature:20±5℃ Relative Humidity:65±20%RH

Notes: Standard Charge/Discharge Condition:

Charge:180mA(0.1 C)×16 hrs Discharge:360mAh (0.2 C) to 10.0V/Pack

Description Unit Specification Conditions Remarks
Open circuit voltage v ≥12.5 Standard Charge , 1hr rest Pack
Internal iedance(Ri) ≤450 Standard Charge , 1hr rest (1KHZ) Pack

Low Rate Discharge

(0.2C)

minute ≥300 Standard Charge , 1hr rest before discharge Allow to 3 cycles

High Rate Discharge

(0.5C)

minute ≥112 Standard Charge , 1hr rest before discharge Allow to 3 cycles

High Rate Discharge

(1C)

minute ≥51 Standard Charge , 1hr rest before discharge Allow to 3 cycles
Overcharge N/A

No leakage nor

explosion

0.1 C charge for 48 hrs
Charge retention mAh ≥1080(60%)

Standard charge

Storage: 28 days at Ambient Teerature or 7 days at 45℃ Standard discharge


IEC Cycles Test Cycle ≥500 IEC 61951-2 (2011)/7.5.1.2 (see note 1)
Short Circuit N/A Leakage &a;deformation may occur, but no explosion is allowed After standard charge.,short circuit the cell at 20+/-5℃ until the cell teerature returns to ambient teerature. (The resistance of the inter- connecting circuitry shall not exceed 0.1 ohm.)

Vibration

Resistance

N/A

change of voltage:

﹤0.2V/Pack

change of internal

﹤50mΩ/Pack

Charge at 0.1C for 16hrs and then leave for 24hrs check battery before after vibration Alitude: 1.5mm Vibration:3000CPM (any direction for 60mins)

Iact

Resistance



N/A

change of voltage:

﹤0.2V/Pack

change of internal

﹤50mΩ/Pack

Charge at 0.1C for 16hrs and then leave for 24hrs check battery before/ after drop Height: 100cm Thickness of the wooden board: 30mm Direction is not specified Test for 3 times











Notes:

1. Approximate charge time from discharged rate, for reference only IEC 61951-2(2011)

IEC61951-2(2011) /7.5.1.2Cycle Life Test:

Cycle No. Charge Rest Discharge
1 0.1C,16h none 0.25 C,2h 20min
2—48 0.25 C,3h 10min none 0.25 C,2h 20min
49 0.25 C,3h 10min none 0.25 C to 1.0V/cell
50 0.1 C,16h 1h-4h 0.2 C to 1.0V/cell
Cycle 1 to 50 shall be repeated until the discharges duration on any 50th cycle becomes less than 3hrs




2. EXTERNAL APPEARANCE

The cell / battery shall be free from cracks, scars, breakage, rust, discoloration, leakage and deformation.



3. ELECTRICITY RETAINS:

Normal conditions with electricity retain 60%, if have special demands, confirm after negotiate.



4. WARRANTY

One year limited warranty against workmanship and material defects.



5. WARNING

5.1 Do not reverse charge batteries.

5.2 Do not short circuit batteries, permanent damage to batteries may result.

5.3 Do not subject batteries to adverse condition such as extreme teerature, deep cycling and excessive.

5.4 Store batteries in a cool dry place. Always discharge batteries before bulk storage or shipment.

5.5 Do not solder directly to cells or batteries.

5.6 If find any noise, excessive teerature or leakage from a battery, please stop its use.

5.7 Do not incinerate or mutilates batteries, may burst or release toxic material..

5.8 Do not mix new batteries in use with semi-used batteries, over-discharge may occur.

5.9 Do not remove the outer sleeve from a battery pack nor cut into its housing.

5.10 Never put a battery into water or seawater.

6. CAUTION

6.1 Batteries should be charged prior to use.

6.2 For charging methods please referred to our technical handbook.

6.3 Use the correct charger for Ni-MH batteries.

6.4 Avoid batteries being used in an airtight coartment. Ventilation should be provided inside the battery coartment, otherwise batteries may generate hydrogen gas, which could cause an explosion if exposed to an ignition source.

6.5 Do not attet to take batteries apart or subject them to pressure or iact. Heat may be generated or fire may result. The alkaline electrolyte is harmful to eyes and skin, and it may damage clothing upon contact.

6.6 Keep away from children. If swallowed, contact a physician at once.

6.7 When using a new battery for the first time or after long term storage, please fully charge the battery before use.

6.8 When using a new battery in use with semi-used batteries, over-discharge may occur.

6.9 When the battery is hot, please do not touch it and handle it, until it has cooled down.

6.10 When find battery power down during use, please switch off the device to avoid over discharge.

6.11 Unplug a battery by holding the connector itself and not by pulling at its cord.

6.12 After use, if the battery is hot. Before recharging it, allow it to cool in a well-ventilated place out of direct sunlight.



7. STORAGE

7.1 In order to ensure the battery to maintain the capacity level, we suggest Ni-MH battery and battery pack should be stored under the condition of the -20 ~ 35 ℃, low humidity, no corrosive gases.

7.2 Ni-MH battery to avoid the high teerature or high humidity storage, otherwise it would lead to the battery leakage, rust, and the lower capacity.

7.3 The long-term storage may lead to NIMH batteries and battery packs to reduce the capacity and need 1-3 charge / discharge cycles to reach the maximum discharge capacity.

7.4 Three months after placing the battery need to be charge/discharge for one cycle.



Type:Rechargeable Nickel Metal Hydride

 Cylindrical Cell

Nominal Dimension :Φ=14.5mm

(With sleeve) H=49.0mm

Applications: Recommended discharge current

180mA to 1800mA

Nominal Voltage: 1.2V

Capacity:

Minimum: 1800mAh

Typical: 1830mAh

When discharged at 0.2C to 1.0V at 20

Charging Condition: 180mA for 16 hrs at 20

Fast Charge: 900mA ~1800mA (0.5C~1C)



Charge termination control recommended

Control parameters: -△V: 5mV

dT/dt: 0.8℃/min (0.5 C)

dT/dt: 0.9℃/min (1 C)

Tmax: 45~55℃

Time: 105% nominal input

For reference only

Service life: 500 cycles (IEC standard)

Continuous: 180mA maximum current for 48 h

Overcharge: No conspicuous deformation

or leakage

Weight: about 27.0g

Internal Resistance: Max 40mΩ Standard Charge

1hr rest at 1000HZ

Max. Charging Voltage: 1.5V at 180mA charging

ambient Teerature: Standard charging: 0 to 45℃

Fast charging: 10 to 45℃

Discharging: -20 to 60℃

Storage: -20 to 35
