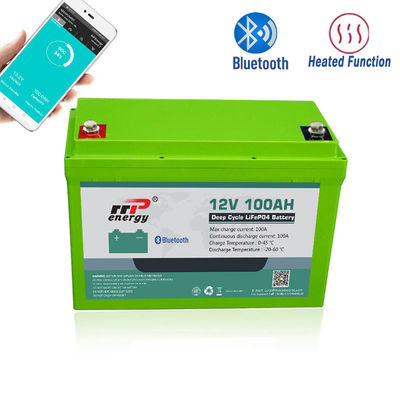

12V 100Ah Lifepo4 Lithium Iron Battery Pack Deep Cycle Times For Solar Energy System
12V 100Ah Lithium Iron Battery Pack
,BMS Lithium Iron Battery Pack
,Deep Cycle 12V 100Ah Lifepo4 Battery
lithium iron phosphate battery 12v 100ah 1280wh
Longer Service life max 3000 cycles and 5-8 years lifespan
80% efficient Capacity Usage
Built-in BMS ensure 100% charging &a; Discharging safety
Bluetooth to keep every records for the battery status .
| Battery Type | Rechargeable LiFePo4 battery |
| Battery Voltage | 12.8V |
| Battery Capacity | 100Ah |
| Battery charge Current | 100A |
| Battery discharge current | 100A |
| Battery charge cut off voltage | 14.4V |
| Battery discharge cut off voltage | 10V |
| Charge method | CC-CV(Constant voltage with limited current ) |
| Internal Resistance | Less than 30mOhms |
| BMS Function | over charge over discharge over current protection Balance Function Self heated function Bluetooth communication function can be available |
| Operation Teerature | -20-60 degree |
| Quality Guarantee | 2 years |
| Self heated Function | Charging teerature -5℃,self heated functon working till teeratue above 5 degree |
| Application | Solar system wind system Storage battery RV Backup power Wheelchairs and scooters |
| Sale lead time | 8-10 working days |
| Mass Production lead time | 18-20 working da |
1. Lighter in weight, heavier on power
2. Use a grade prismatic cells. More than 3000 cycle times.
3. Max discharge continuous current 100A
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. Our batteries have passed different safety tests.
6. IP65 Waterproof ratings.
Built in BMS overall protection
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
RFQ about the 12V 100ah lifepo4 battery pack :
Q: Can these battery pack be coatible with my inverter?
do you have a coany list of the inverter which is coatible?
A: Yes sir, our battery pack can coatible with most brand of
inverter on the market, contact us and let me tell you more.
Q:Can it be series or parallel for use?
A: Yes sir, it can support max. 4 in series or parallel
connection for use ( 12V series ) and no any additional device.
Q: What about the delivery time and shipping?
A: some of times in stock, we can make 3-7days fast delivery.
For USA,Canada,Austraila and most of European country , we provide tax included
courier door to door services.
Q: How to contact you to place the 12V battery order?
A: you could contact us as below
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
More lifepo4 battery models 12V 150ah 200ah 300ah ,contac us for E-catalogue with price list .
| LiFePO4 Battery Model | Voltage(V) | Capacity(Ah) | Energy(Wh) | Dimension(mm) | Weight(kg) | Terminal | ||
| Length | Width | Height | ||||||
| 6-4.5 | 6.4 | 4.5 | 28.8 | 70 | 47 | 101 | 0.34 | F1 |
| 12-4.5 | 12.8 | 4.5 | 57.6 | 90 | 70 | 101 | 0.75 | F1 |
| 12-7.5 | 12.8 | 7.5 | 96 | 151 | 65 | 94 | 1.1 | F1 |
| 12-12 | 12.8 | 12 | 153.6 | 152 | 99 | 96 | 1.7 | F2 |
| 12-18 | 12.8 | 18 | 230.4 | 181 | 77 | 167 | 2.6 | M5 |
| 12-20 | 12.8 | 20 | 256 | 181 | 77 | 167 | 2.8 | M5 |
| 12-26 | 12.8 | 26 | 332.8 | 166 | 175 | 125 | 4.2 | M5 |
| 12-33 | 12.8 | 33 | 422.4 | 195 | 130 | 180 | 4.8 | M6 |
| 12-40 | 12.8 | 40 | 512 | 197 | 165 | 170 | 5.75 | M6 |
| 12-45 | 12.8 | 45 | 576 | 197 | 165 | 170 | 7.52 | M6 |
| 12-50 | 12.8 | 50 | 640 | 257 | 132 | 200 | 8.12 | M6 |
| 12-55 | 12.8 | 55 | 704 | 228 | 138 | 228 | 8.12 | M6 |
| 12-60 | 12.8 | 60 | 768 | 260 | 168 | 208 | 8.82 | M6 |
| 12-65 | 12.8 | 65 | 832 | 260 | 168 | 208 | 9.3 | M6 |
| 12-75 | 12.8 | 75 | 960 | 260 | 168 | 208 | 10.8 | M6 |
| 12-80 | 12.8 | 80 | 1024 | 260 | 168 | 208 | 11.3 | M6 |
| 12-100S | 12.8 | 100 | 1280 | 306 | 168 | 210 | 13.6 | M8 |
| 12-100 | 12.8 | 100 | 1280 | 330 | 173 | 212 | 13.6 | M8 |
| 12-120 | 12.8 | 120 | 1536 | 410 | 177 | 225 | 15.5 | M8 |
| 12-150 | 12.8 | 150 | 1920 | 483 | 170 | 238 | 16.5 | M8 |
| 12-200 | 12.8 | 200 | 2560 | 522 | 240 | 224 | 29.6 | M8 |
| 12-250 | 12.8 | 250 | 3200 | 522 | 240 | 224 | 33 | M8 |
