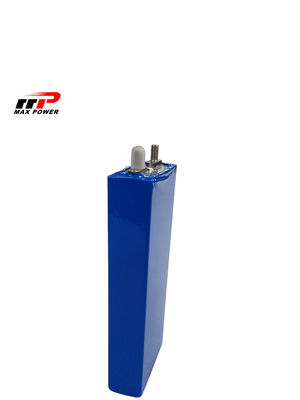

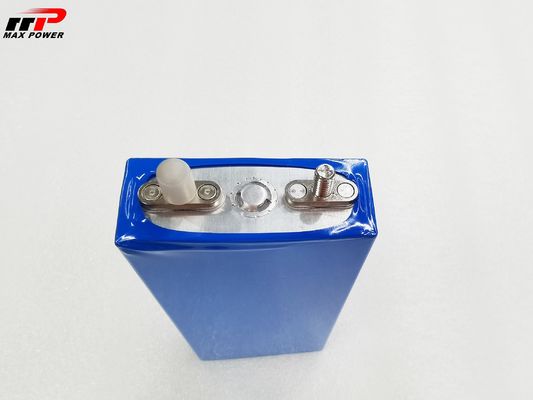

IEC Prismatic 3.2V 25Ah Lithium Lifepo4 Battery 2000 Cycles
25Ah Lithium Lifepo4 Battery
,3.2V Lithium Lifepo4 Battery
,IEC Prismatic LiFePo4 Battery
Energy generation Prismatic lifepo4 cells 3.2V 25Ah storage lithium battery
Long life and deep cycle lifepo4 battery cell 25Ah with more than 2000 cycles
Low self discharge rate green energy lithium battery support deep cycle working
100% in house testing safety and aging testing with more than 2 years quality guarantee
Customized battery pack wtih build in BMS and smart APP Lithium battery pack available
Reay to use and easy install and replace with the SLA lead acid battery directly
Wide temeprature working range with MSDS UN38.3 CB IEC support overseas delivery
Storage lifepo4 battery IEC CB Lithium battery 3.2V 25Ah Specification :
| 3.2V 25Ah LiFePo4 Battery storage | ESS Prismatic lifepo4 battery Specification |
| LiFePo4 Battery Manufacture | MaxPower Industrial Co.,Ltd |
| H.S. Code | 850600090 |
| Normal Capacity | 25Ah |
| Normal Voltage | 3.2V |
| Energy | 80wh |
| Dimension | Thickness 27mm width 70mm Length 180mm |
| Internal Resistance | Less than 4mOhms |
| Charging Voltage | 3.65V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Weight | 670g |
| Charge current | 1C |
| max charge current | 2C |
| Charging time | Standard 2 hours ,Fast charger one hour |
| Continuous discharge Current | 2C |
| max continuous discharge current | 3C |
| Peak discharge current | 5C |
| Discharge Cut Off Voltage | 2.5V |
| Terminal torsion | less than 5.5 N.m |
| Water Dust Resistnace | IP55 |
| Operation Teerature | -20-60 degree |
| Quality Guarantee | Two years |
| Application | Storage system ,RV, ESS,Golf Cart Battery, Solar System battery , EV ,EBIKE UPS |
| Caer ,marine ,overland/Van,golf cart ,lighting | |
| Sale lead time | 6-8 working days |
| Mass Production lead time | 10-15 working days |
Lifepo4 3.2V 25Ah discharge current :
LiFePo4 battery life cycle curve :
More lifepo4 battery models ,contact Lucy directly .
Lucy whatsApp: 0086-13714669620
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
| LiFePo4 Model No. | Prismatic LiFePo4 Battery Dimension |
| 3.2V 20Ah | 27x70x145mm |
| 3.2V 25AH | 27x70x180mm |
| 3.2V 40Ah | 168*116*46mm |
| 3.2V 50Ah | 30x135x185mm |
| 3.2V 80Ah | 37*130*170mm |
| 3.2V 100Ah | 32*173*195mm |
| 3.2V 105Ah | 37*130*200mm |
| 3.2V 200Ah | 280*180*69mm |
| 3.2V 280Ah | 72*174*205mm |
| 3.2V 300Ah | 308*360*53mm |
| 3.2V 400Ah | 285*450*71mm |
