Name: Ncr 18500 18490 3.7v 2000mah Li Ion Rechargeable Battery Low Teerature
Brand: MAXPOWER INDUSTRIAL CO.,LTD
SKU: 18490 18500 2000mAh
Price: 2.00 USD
Availability: InStock

Home Products Lithium Ion Rechargeable Batteries

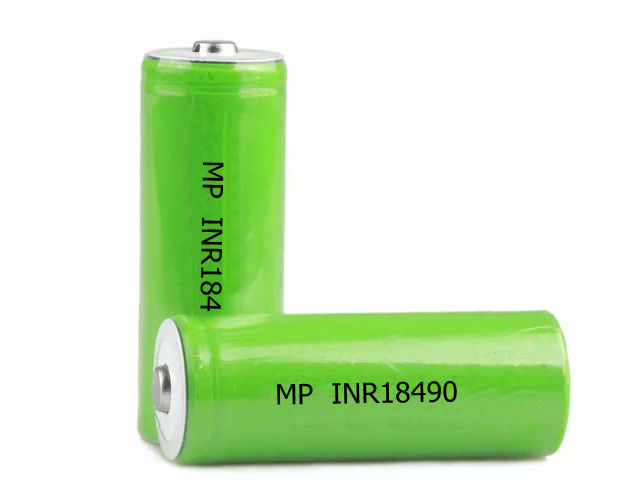

Ncr 18500 18490 3.7v 2000mah Li Ion Rechargeable Battery Low Teerature

Product Details:

Place of Origin:	China
Brand Name:	MaxPower
Certification:	CE UL CB UN38.3 MSDS IEC ENC BIS
Model Number:	18490 18500 2000mAh

Payment & Shipping Terms:

Minimum Order Quantity:	1000PKS
Price:	Negotiation
Packaging Details:	Carton ,Box ,Tray.

Contact Now

Detailed Product Description

Battery Type:	Li-ion Cell	Capacity:	2000mAh
Voltage:	3.7V	Cell Weight:	35g
Guarantee:	More Than 2 Years	Life Cycle:	1000 Cycles
Internal Resistance:	≤21 MΩ	Size:	D18.3mm*H48.9mm
Low Teerature:	-40 To 60 Degree
Highlight:	3.7v 2000mah Li Ion Rechargeable Battery , aa Li Ion Rechargeable Battery , Ncr 18500 18490 Li Ion Battery

aa lithium batteries rechargeable

3.7V 18490 18500 Li Ion Rechargeable Battery Low teerature lithium battery Cell

Original grade A quality level with high energy capacity 2000mAh
support 2C 2A high rate discharge and fast charge
Normal type Li-ion Cell with very low teerature operating work -40℃--60℃
Can directly replace the original brand NCR18500 Battery cell
Accept the low MOQ order and free sale testing
UL CE ROSH KC IEC62133 CCC UN38.3 MSDS BIS certification

Rechargeable cylindrical lithium battery 18490 18500 2000mAh 3.7V cell:

Technical Parameters	Specification
Nominal Capacity	2000mAh (0.2C5 ,2.5V discharge)
Minimum Capacity	1940mAh (0.2C5 ,2.5V discharge)
Rated Capacity	0.2C,2.50V discharge
	0.2C,2.50Vdischarge≥100%
	1.0C,2.50V discharge
	1.0C,2.50Vdischarge ≥92%
	3C,2.50V discharge
	3C,2.50Vdischarge ≥90%
Nominal Energy	7.2Wh(0.2C,2.5V discharge)
Nominal Voltage	3.6V(0.2C,2.5V discharge)
Standard Charge	Method:CC-CV
	Charging Voltage:4.2V
	Charging Current:0.5C(1000mA)
Maximum Charge Current	Cut-off Current:0.01C(20mA)
Maximum Charge Current	1.0C(2000mA)
Standard Discharge	Method:CC
	Discharge Cut-off Voltage:2.5V
	Discharging Current:0.2C(400mA)
Maximum Discharge Current	2.0C(4000mA)
Weight	≤34.5±2.0 g
Operating Teerature, Charge	0~45℃
Operating Teerature, Discharge	-40~60℃
Storage Teerature	1 month:-20~45℃
	3 months:-20~35℃
	1 year:-20~25℃

The draw of the 18490,18500 cell:

Ncr 18500 18490 3.7v 2000mah Li Ion Rechargeable Battery Low Teerature 0

More lithium battery cell models spec.are available :

Model	25HR	30HQ	26ME	34Q2	35ME	18350	18490
Nominal Capacity	2500	3000	2600	3350	3500	1000	2000
Minimum Capacity	2450	2900	2550	3250	3350	950	1940
Initial AC Iedance	15 mΩ	15 mΩ	20 mΩ	16 mΩ	16 mΩ	30 mΩ	44 mΩ
Maximum Disharge Current	20A	15A	12.75A	10A	10A	5A	2 A
Maximum Charge Current	4A	3A	1.275A	3.25A	3.25A	1A	4 A
Weight	45 g	49 g	47.5 g	50 g	50 g	23 g	34.5g
Cycle Life	500 times	250 times	500 times	500 times	500 times	300 times	250 times

Ncr 18500 18490 3.7v 2000mah Li Ion Rechargeable Battery Low Teerature 1

NCR18500 18490 3.7v 2000mAh advantages:

* High energy density

* High voltage

* Pollution-free

* Long cycle life

* No memory effect

* Low self-discharge

* High rate charge/discharge

Li-ion battery applications:

* AGV car/AGV robot/Automatic guideless vehicle

* digital Cameras, radio/audio equipments, walkie-talkie, datalogger, data acqistion systems

* Security system, alarm system, industrial monitors/controllers

* Flashlight, LED light and other Lighting equipments

* Logistics storage equipments

* Medical equipments

* electronic communication devices

* Robots, Electric toy, kids car battery

* Locator, tracker and other vehicle-mounted products

* Other electric equipments

Hot saling model:

models	capactity	models	capactity	note
18650	1200mAh	18350	700mah
18650	1300mAh	36600	7500mah	(militery use)
18650	1500mAh	32600	5000mah	(militery use)
18650	1800mAh	18500	1900mah
18650	2000mAh	18500	1200mah
18650	2200mAh	16310	850mah
18650	2500mAh	10840	650mah
18650	2600mAh	16650	1600mah
18650	3400mah	14650	1000mah
