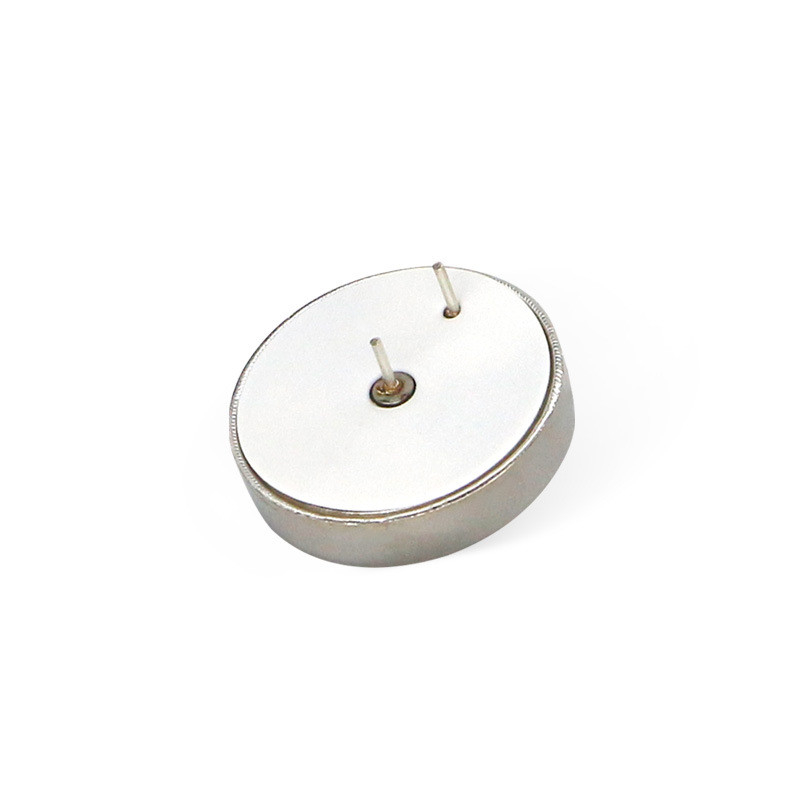

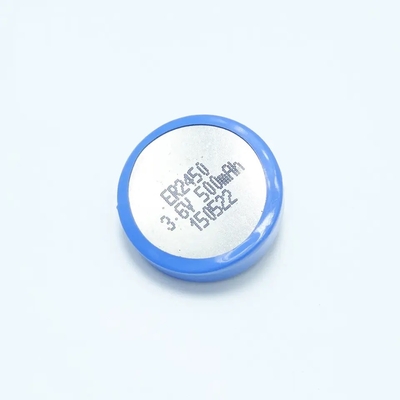

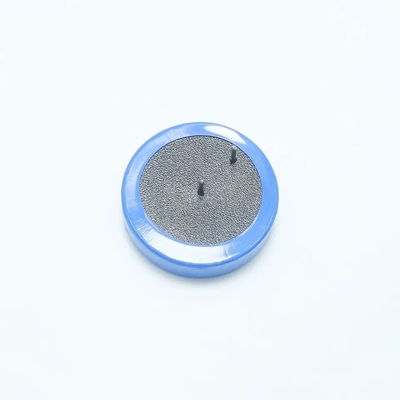

ER2450 3.6V 500mAh lithium button cell LiSOCl2 Battery
High energy type 3.6V 500mAh Circular Li-SCOI2 Battery ER2450
1. High energy density
2. High working voltage for single battery cells
3. Pollution-free
4. Long cycle life
5. No memory effect
6. Capacity, resistance, Voltage, platform time consistency is good
7.With short-circuit production function, safe and reliable
8.Factory price&a; High quality
9. Good consistency, low self discharge

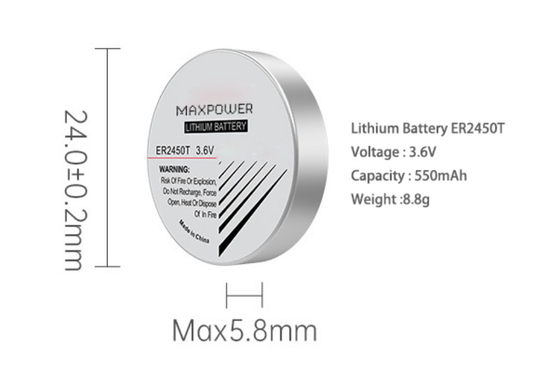

Lithium battery ER2450T 3.6V 500mAh Specification :
| Model |
ER2450 |
| Cell Size |
Other |
| Nominal Voltage(V) |
3.6V |
| Discharge Cut-off Voltage |
2.0V |
| Nominal Discharge Current |
0.5mA |
| Nominal Capacity |
500mAh |
| Max Dimension |
φ24.5×5.5mm |
| Max weight |
9g |
| Standard Discharge |
Discharge to 2.0V 0.5mA |
| Max. Constant Discharge Current |
10mA |
| Max. Pulse Current |
20mA |
| Ambient Teerature Range |
-55~ +85°C |
| Storage Life |
≥10 year |
| Self-discharge |
Yearly self-discharge ≤ 1% |
3.6V button lithium battery ER2450T Stable voltage output Curve :
Support the working teerature -55 degree to 85 degree can close substitude the ER2268 battery directly .
1. CMOS memory, RTC(real time clock) and couter backup.
2. AMR utility meters: Electricity meter, gas meter and water meter etc.
3. Wireless alarm sensors: Smoke alarm systems, teerature monitors etc.
4. Remote monitor systems: GPS, sea buoys, lifejacket lights, lifecraft lights, cargo-locating systems etc.
5. Automotive and electronics: Automotive security systems, tire-pressure monitoring systems etc.
6. Military electronics: Radio communication, night vision equipment, tracking and positioning system, etc.
Related Models: ER1860/ER32L65/ER32L100/ER14250/ER14505/
ER34615/ER18505/ER26500, etc.
Bobbin Type :
| Model |
Size |
Capacity(mah) |
| ER10280 |
|
450 |
| ER10450 |
AAA |
750 |
| ER13150 |
|
450 |
| ER14250 |
1/2AA |
1200 |
| ER14335 |
2/3AA |
1650 |
| ER14505 |
AA |
2700 |
| ER17505 |
A |
3400 |
| ER18505 |
|
3800 |
| ER26500 |
C |
9000 |
| ER34615 |
D |
2000 |
| ER341245 |
DD |
38000 |
| ER32L65 |
1/10D |
1000 |
| ER32L100 |
1/6D |
1700 |
| ER9V |
9V |
1200 |
Spiral Type:
| Model |
Size |
Capacity(mah) |
| ER14250M |
1/2AA |
750 |
| ER14335M |
2/3AA |
1300 |
| ER14505M |
AA |
2000 |
| ER17335M |
2/3A |
1700 |
| ER17505M |
A |
2800 |
| ER18505M |
|
3500 |
| ER26500M |
C |
6000 |
| ER34615M |
D |
13000
|
High Teerature Type :
| Model |
Size |
Capacity(mah) |
| ER14250S |
1/2AA |
750 |
| ER14505S |
AA |
2000 |
| ER26500S |
C |
6000 |
| ER34615S |
D |
13000 |
