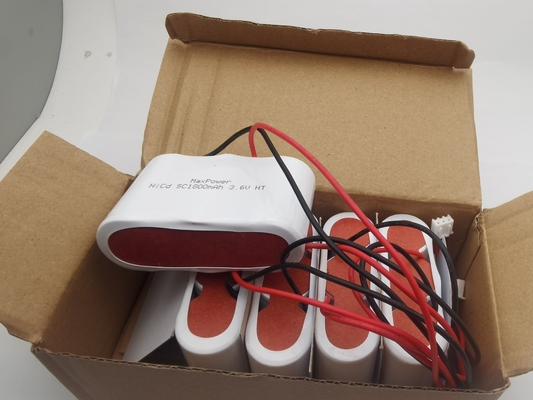

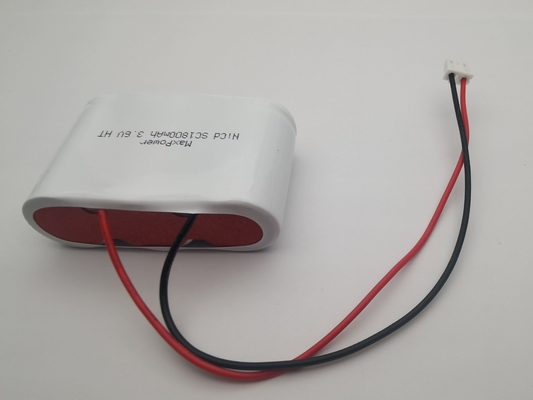

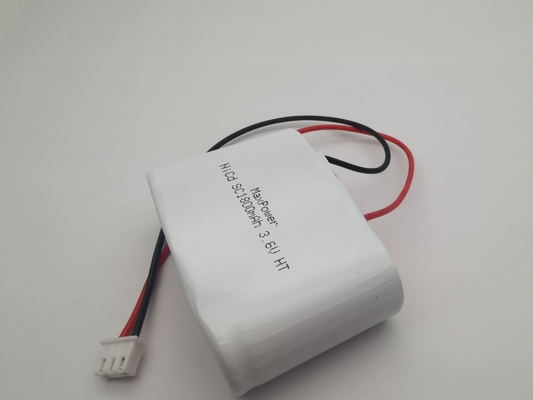

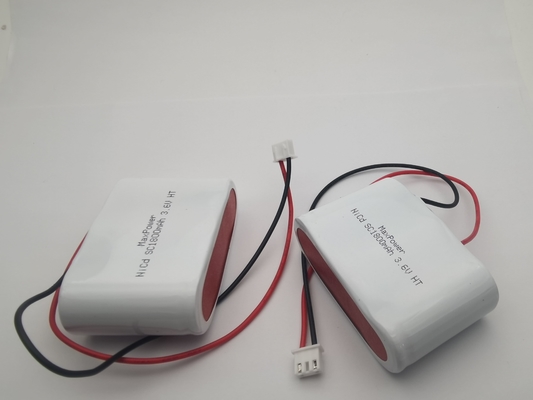

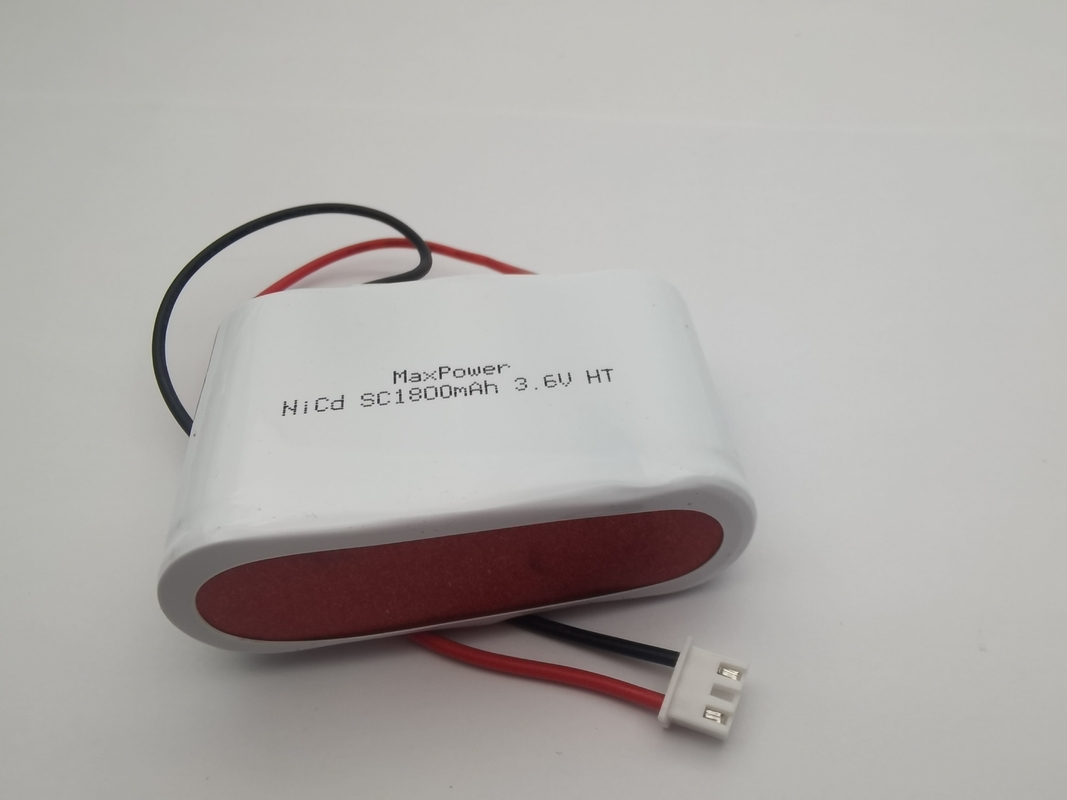

NI-CD Battery Pack for Emergency Light Battery with High Temperature SC 3.6V 1800mAh
Emergency duration time : 90 mins support to work wide temperature :-20 to 70 degree
1. The nicd battery pack can support 3-20W Duration Time2-3Hours Led Lamp Emergency Power Supply Pack
Emergency Conversion Kit Driver Battery for All LED Light
2. over charged nicd cell design with security and stronger quality to support durable lighting
3. High temperature nicd battery Cell design support wide working temperature range
4. The lightsource is brighter with the nicd battery pack less hear and less power consumption
5.Ultra long battery life ,power off sustainable light for 90 minutes for your safety lighting escort
6.Full certificate UL1642 and UL2054 MSDS CE CB IEC62133 KC and COC and OQC report
7.Accept the custom battery pack with plastic case or plate and water-proof design
8. Extra long life over 500 cycles the capacity percentage keep over 85% after 5 years
You could contact maxpower Lucy directly for quotation and data sheet today .
Email: Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
The Sub-C 1800mAh 3.6V nicd battery pack brief specification:
| NO |
Battery Type |
Rechargeable nicd battery pack |
| 1 |
Model No. |
nicd SC 1800mAh 3.6V |
| 2 |
Nominal Voltage |
3.6v |
| 3 |
Nominal Capacity@0.2C |
1800mAh |
| 4 |
Charging Current |
180mA for 16 hours |
| 5 |
Full charged Condition |
-△V: 50mV/Pack |
| 6 |
Max. Charging Current |
0.5-1C |
| 7 |
Discharging Current |
1.8A |
| 8 |
Max. Continuous Current |
1C 1.8A or 2A |
| 9 |
Max. Pulse Current |
1800ma or 2000ma |
| 10 |
Discharging Cut-off Voltage |
3.0V |
| 11 |
Weight |
160g |
| 12 |
Working temperature |
-20℃~75℃ |
| 13 |
Battery HS Code |
8507500000 |
| 14 |
Quality Guarantee |
12months |
| 15 |
Cycle life |
500 cycles to 1000 cycles |
| 16 |
Battery Certificate |
MSDS KC CE CB IEC62133 |
| 17 |
Emergency Time |
90 mins |
| Rechargeable or not |
Yes, rechargeable |
| Service |
OEM ODM accept customized battery pack |
| Place of Origin |
China |
| Sample Lead Time |
5-7 days |
| Bulk order L/T |
Within 20-25 days |
| Application |
Emergency driver ,Emergency Lighting,Emergency fixture at the Hospital,Corridor,Garage,Hotel,School,Supermarket,etc |
How to test the emergency lighting nicd battery pack?
Test process: the battery pack is left at 55℃ for 8hours
The battery pack is charged at 0.05C constant current for 24 hours, left for 10min, and discharged at 0.5C constant current to 3.15V,
Test requirements: 0.5C discharge capacity> = 1530mAh (85% nominal capacity)
| NiCd Battery |
1# |
2# |
3# |
| Testing Method |
discharge time |
discharge capacity |
discharge time |
discharge capacity |
discharge time |
discharge capacity |
| 0.5C discharge to 3.15V |
122min |
1832mAh |
122min |
1836mAh |
121min |
1816mAh |
55℃ Charge and discharge test, 0.5C discharge capacity is 1816~1836mAh. Charging efficiency: 100%~102%
SC1800T (1X3)3.6V battery 55℃ high temperature charging efficiency test results are qualified, in line with shipment requirements.
You could conact us today to get the price and original testing report.
We accept the customized battery pack 3.6V with baton shape or you requested configuaration.
More nicd nimh battery packs that we designed for the LED and emergency lighting field .
| Rechargeable NICD NIMH Battery For Emergency Lighting Exit fixture |
| AA900mAh-3.6V |
AA1000mAh-1.2V |
| AA900mAh-3.6V |
AAA400mAh-4.8V |
| AA1000mAh-1.2V |
A1200mAh-4.8V |
| C3000mAh-6.0V |
AA1100mAh-7.2V |
| C3000mAh-12.0V |
AAA300mAh-4.8V |
| C3000mAh-6.0V |
A1200mAh-4.8V |
| C3000mAh-12.0V |
AA900mAh-3.6V |
| C2500mAh-4.8V |
AA600mAh-4.8V |
| D4000mAh-4.8V |
AAA400mAh-4.8V |
| D4000mAh-4.8V |
F7000mAh-6.0V |
