| Place of Origin: | China |
| Brand Name: | /OEM |
| Certification: | PSE, KC, CB, UL |
| Model Number: | INR18650-3000mAh 30Q |
| Minimum Order Quantity: | 1000PCS/ORDER |
|---|---|
| Price: | negotiate |
| Packaging Details: | 200pcs/pallet/ctn |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500000pcs/day |
| Material: | Li-ion | Color: | Blue |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 3000mAh |
| Cycle Life: | 1000times | Size: | Height : 64.85 ± 0.15mm Diameter : 18.33 ± 0.07mm |
| High Light: | li ion rechargeable batteries,lithium ion aa rechargeable battery |
||

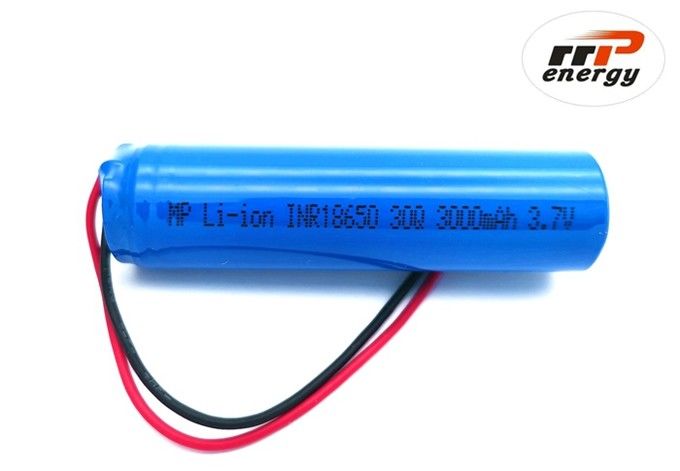

INR18650 30Q 3.7V 3000mAh 15C discharge Li Ion Battery Pack for power tools With UL KC CB PSE.
Specification:
* Model: INR18650-30Q
* Size: 18650
* Style: Flat Top
* Chemistry: INR
* Nominal Capacity: 3000mAh
* Continuous Discharge Rating: 15A
* Pulse Discharge Rating: 25A
* Nominal Voltage: 3.6V
* Protected: with seiko pcb and wire
* Rechargeable: Yes
* Approximate Dimensions: 18.33mm x 64.85mm
* Approximate Weight: 52g
| No | Item | Specification |
| 1 | Nominal discharge capacity | 3,000mAh |
| Charge: 1.50A, 4.20V,CCCV 150mA cut-off, | ||
| Discharge: 0.2C, 2.5V discharge cut-off | ||
| 2 | Nominal voltage | 3.6V |
| 3 | Standard charge | CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off |
| 4 | Rapid charge | CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off |
| 5 | Charging time | Standard charge : 180min / 150mA cut-off |
| Rapid charge: 70min (at 25℃) / 100mA cut-off | ||
| 6 | Max. continuous discharge(Continuous) | 15A(at 25℃), 60% at 250 cycle |
| 7 | Discharge cut-off voltage(End of discharge) | 2.5V |
| 8 | Cell weight | 48.0g max |
| 9 | Cell dimension | Height : 64.85 ± 0.15mm |
| Diameter : 18.33 ± 0.07mm | ||
| 10 | Operating teerature(surface teerature) | Charge : 0 to 50℃ |
| (recommended recharge release < 45℃) | ||
| Discharge: -20 to 75℃ | ||
| (recommended re-discharge release < 60℃) | ||
| 11 | Storage teerature(Recovery 90% after storage) | 1.5 year -30~25℃(1*) |
| 3 months -30~45℃(1*) | ||
| 1 month -30~60℃(1*) |
More pic of the INR18650-3000mAh 30Q PACK
Packing Info.
Color box /Blister box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing;
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Garrantee:
Related Iort cell list:
| MODEL NO. | Voltage | Capacity | Resistance | Size | Charge&a;Discharge | Weight | ||
| (V) | (mAh) | (mΩ) | OD | Height | Charge | Discharge | (G) | |
| ICR10220 | 3.7 | 130 | ≤150 | 10.0 | 22.0 | 0.5C-1C | 0.5C-1C | 4.1 |
| ICR10440 | 3.7 | 350 | ≤120 | 10.0 | 44.0 | 0.5C-1C | 0.5C-1C | 9.0 |
| ICR14430 | 3.7 | 650 | ≤100 | 13.8 | 42.8 | 0.5C-1C | 0.5C-1C | 17.0 |
| ICR14500 | 3.7 | 900 | ≤80 | 14.0 | 50.0 | 0.5C-1C | 0.5C-1C | 19.5 |
| ICR17280 | 3.7 | 600 | ≤100 | 16.3 | 28.0 | 0.5C-1C | 0.5C-1C | 15.0 |
| ICR17335 | 3.7 | 700 | ≤100 | 16.3 | 33.5 | 0.5C-1C | 0.5C-1C | 18.0 |
| ICR18500 | 3.7 | 1400 | ≤70 | 18.1 | 50.0 | 0.5C-1C | 0.5C-1C | 33.0 |
| ICR18650 | 3.7 | 2000 | ≤50 | 18.1 | 64.8 | 0.5C-1C | 0.5C-1C | 45.0 |
| ICR18650P | 3.7 | 2000 | ≤40 | 18.1 | 65.0 | 0.5C-1C | 3C-5C | 45.0 |
| ICR18650P | 3.7 | 2200 | ≤40 | 18.1 | 65.0 | 0.5C-1C | 3C-5C | 45.0 |
| ICR18650 | 3.7 | 2600 | ≤70 | 18.1 | 64.8 | 0.5C-1C | 0.5C-1C | 45.0 |
| ICR26650 | 3.7 | 3500 | ≤30 | 26.0 | 65.5 | 0.5C-1C | 0.5C-1C | 85.0 |
| ICR26650P | 3.7 | 5000 | ≤30 | 26.0 | 65.5 | 0.5C-1C | 0.5C-1C | 85.0 |
| ICR18650P | 3.7 | 1500 | ≤15 | 18.1 | 64.8 | 1C | 10c-15C | 47.0 |
| ICR26650P | 3.7 | 2200 | ≤15 | 26.0 | 64.8 | 1C | 10c-15C | 64.0 |
For more info. Please feel free to contact me in any way below, hope 12years of battery area working experance can help you out.
