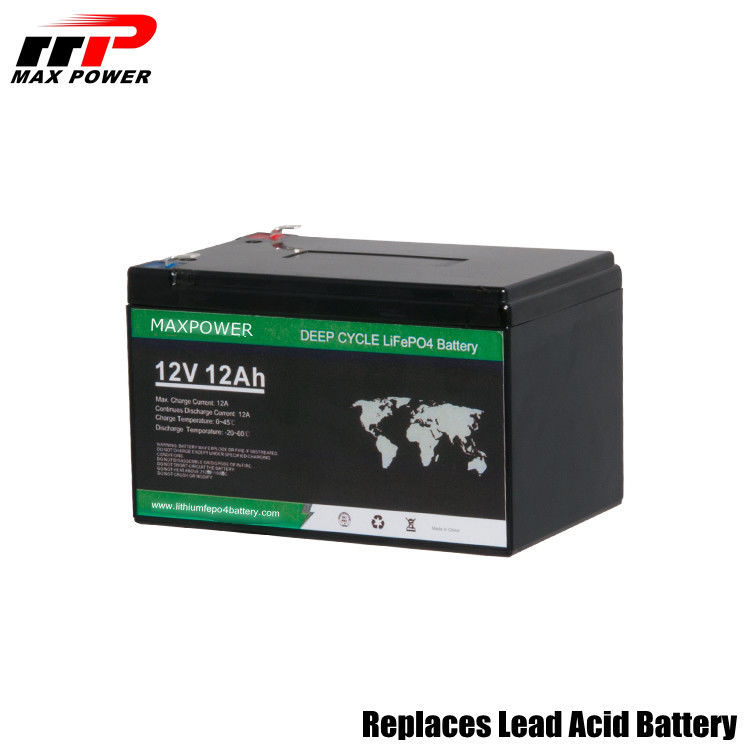

Name: 12V 12Ah 153.6Wh LiFePO4 Cell Lithium Iron Phosphate Rechargeable Battery power storage long durable
Brand: MAXPOWER INDUSTRIAL CO.,LTD
SKU: 12V 12Ah
Price: 50.50 USD
Availability: InStock

Home Products Lithium LiFePO4 Battery

12V 12Ah 153.6Wh LiFePO4 Cell Lithium Iron Phosphate Rechargeable Battery power storage long durable

Product Details:

Place of Origin:	China
Brand Name:	MaxPower
Certification:	MSDS UN38.3 DG License
Model Number:	12V 12Ah

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiation
Packaging Details:	export carton , export wooden case
Delivery Time:	5-8 working days
Payment Terms:	L/C, T/T, Western Union,Paypal
Supply Ability:	10000 PCS Per Day

Contact Now

Detailed Product Description

Battery Type:	Rechargeable Lithium Iron Phosphate Battery	Voltage:	12.8V
Capacity:	12Ah	Size:	LWH=15199100 Mm
Weight:	1.42 Kg	Guarantee:	2 Years
Cell Configuration:	2P4S	Additional Function:	Balancing Function
Highlight:	12v lifepo4 battery , prismatic lifepo4 battery

12V 12Ah 153.6Wh LiFePO4 Battery Deep Cycle storage ESS battery replaces

lead acid battery TBD certification

Solar system Battery 12V 12Ah Grade A quality level rechargeable Lithium Battery Cell
Full automatic production to ensure the battery cell with good matched level
Free maintenance green energy accept customized battery pack
MSDS DG License to support overseas sea air and courier door to door service

ESS storage battery Prismatic Lithium battery Specification :

Items	Parameter
Charging Method	CC-CV
Charging Voltage	14.4±0.2V
Over Charging Protect	3.65±0.025V
Standard Charging Current	2.4A (0.2C)
Max. Charging Current	12A (1C)
Cut-off Charging Current	0.24A (0.02C)
Standard Discharging Current	2.4A (0.2C)
Max. Discharging Current	12A
Discharging cut-off Voltage	10V
Over Discharging Protect	2.5±0.08V
Over Discharge Current	22±5A
Internal Resistance	<180mOhm
balancing voltage	3.60±0.05V
balancing current	36±5mA
Standard Charge Teerature	0~45℃
Standard Discharge Teerature	-20~60℃
Storage Humidity	65%RH not condensed
Storage Teerature	-20~60℃
Weight	About 1.42Kg

System Block Diagram

12V 12Ah 153.6Wh LiFePO4 Cell Lithium Iron Phosphate Rechargeable Battery power storage long durable 0

12V 12Ah Lithium LiFePo4 Battery Application :

Storage Power Battery , Solar system Battery , Wind systm Battery ,

EV Battery , AGV Battery , Solar Energy battery , Motorcycle Battery,

Medical equipment Battery , Electric boat Battery

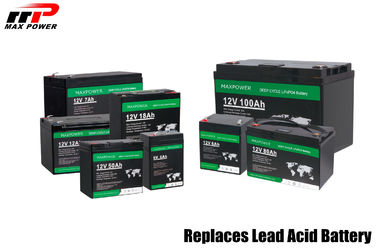

Related models for replaces Lead Acid batteries:

LiFePO4 Battery Packs (Replaces Lead Acid Batteries)
Item	Model	Voltage (V)	Capacity (Ah)	Cell Configuration	Cell Type	Max. Discharging Current (A)	Max. Charging Current (A)	Size (LWH) (mm)	Weight (kg)
1	-6V/6AH	6	6	1P2S	IFR32700 6000mAh	6	6	7047100	0.38
2	-12V/6AH	12	6	1P4S	IFR32700 6000mAh	6	6	9070101	0.7
3	-12V/7AH	12	7	2P4S	IFR26650 3600mAh	7	7	1516594	0.88
4	-12V/12AH	12	12	2P4S	IFR32700 6000mAh	12	12	18177170	1.42
5	-12V18Ah	12	18	3P4S	IFR32700 6000mAh	18	18	18177170	2.3
6	-12V24Ah	12	24	4P4S	IFR32700 6000mAh	24	24	180x77x168	2.756
7	-12V/36AH	12	36	6P4S	IFR32700 6000mAh	36	36	256x165x210	4.084
8	-12V/50AH	12	50	1P4S	EA01 50Ah	50	50	229138208	5.96
10	-12V/60AH	12	60	1P4S	EA06 59Ah	59	30	256x165x210	5.58
11	-12V/80AH	12	80	5P4S	GX 17Ah	30	30	330173216	7.72
12	-12V/100AH	12	100	2P4S	EA01 50Ah	100	100	256x165x210	10.5
14	-12V/120AH	12	120	2P4S	EA06 59Ah	120	60	256x165x210	10.86
15	-12V/150AH	12	150	3P4S	EA01 50Ah	150	75	330173216	15.66
16	-12V/180AH	12	180	3P4S	EA06 59Ah	180	90	330173216	16.54
17	-12V/200AH	12	200	4P4S	EA01 50Ah	200	100	490171240	20.88
18	-12V/300AH	12	300	6P4S	EA01 50Ah	200	150	520267220	31.32
19	-24V/100AH	24	100	2P8S	EA01 50Ah	100	50	490171240	19.48
20	-24V/150AH	24	150	3P8S	EA01 50Ah	150	75	520267220	29.22

For more please feel free to contact us and hope more than 13years of expearance in battery area can help you out:

12V 12Ah 153.6Wh LiFePO4 Cell Lithium Iron Phosphate Rechargeable Battery power storage long durable 1
