| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | CE,MSDS UN38.3 DG License |
| Model Number: | 12V 18Ah |
| Minimum Order Quantity: | 1 PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | export carton , export wooden case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union,Paypal |
| Supply Ability: | 10000 PCS Per Day |
| Battery Type: | Rechargeable Lithium Iron Phosphate Battery | Voltage: | 12V |
|---|---|---|---|
| Capacity: | 17.6Ah | Size: | L*W*H=181*77*170 Mm |
| Weight: | 2.3 Kg | Cell: | IFR32700 6000mAh |
| Cell Configuration: | 3P4S | Additional Function: | Balancing Function |
| High Light: | 12v lifepo4 battery,solar lifepo4 battery |
||

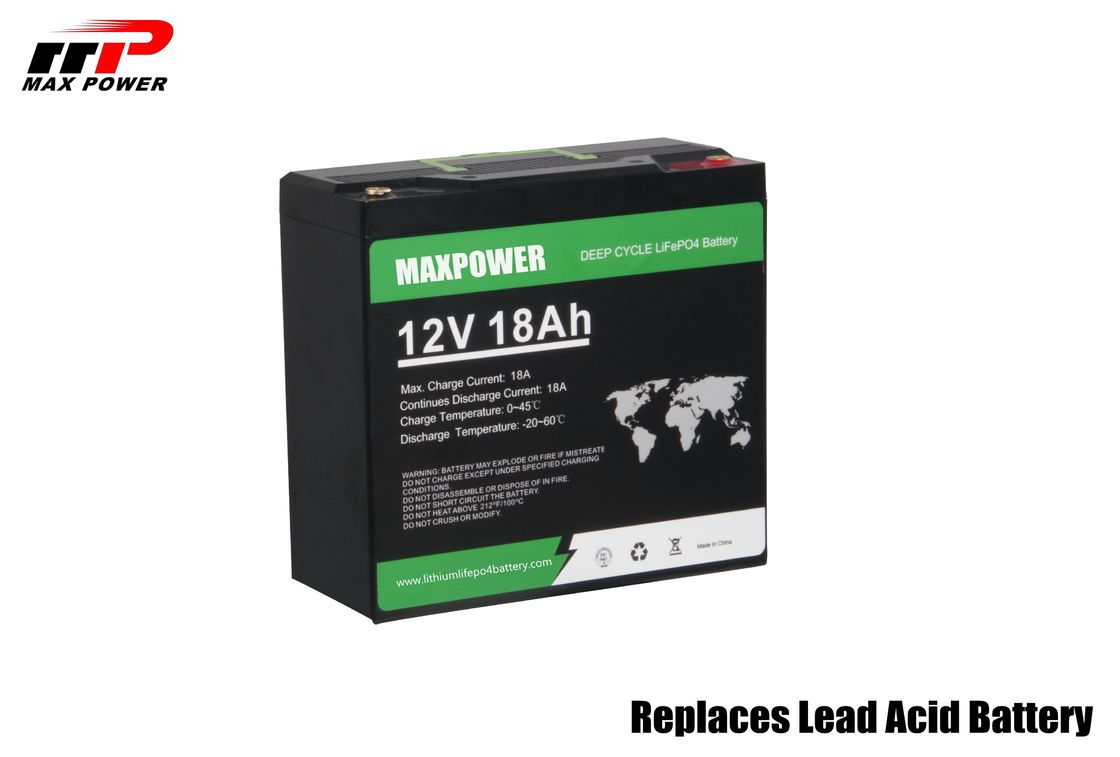

LiFePO4 Battery 12V 18Ah 230.4Wh storage Battery Deep Cycle ESS battery
SLA Replacement CE
ESS storage battery Prismatic Lithium battery Specification :
| Items | Parameter |
| Charging Method | CC-CV |
| Charging Voltage | 14.4±0.2V |
| Over Charging Protect | 3.65±0.025V |
| Standard Charging Current | 3.6A (0.2C) |
| Max. Charging Current | 18A (1C) |
| Cut-off Charging Current | 0.36A (0.02C) |
| Standard Discharging Current | 3.6A (0.2C) |
| Max. Discharging Current | 18A |
| Discharging cut-off Voltage | 10V |
| Over Discharging Protect | 2.5±0.08V |
| Over charge Current | 55±5A |
| Over discharge Current | 55±5A |
| Internal Resistance | <150mOhm |
| balancing voltage | 3.50±0.05V |
| balancing current | 36±5mA |
| Standard Charge Teerature | 0~45℃ |
| Standard Discharge Teerature | -20~60℃ |
| Storage Humidity | 65%RH not condensed |
| Storage Teerature | -20~60℃ |
| Weight | About 2.3Kg |
System Block Diagram:
Charging PACK:
Use suitable charger with the specified voltage and current. We strongly recommend Maxpower smart battery charger.
We can recommend the usage or specification of the charger manufacturing. If you want to get the information about it,
please contact us.
12V 18Ah Lithium LiFePo4 Battery Application :
Storage Power Battery , Solar system Battery , Wind systm Battery ,
EV Battery , AGV Battery , Solar Energy battery , car Battery,
Medical equipment Battery , Electric boat Battery
Related models for replaces Lead Acid batteries:
| LiFePO4 Battery Packs (Replaces Lead Acid Batteries) | |||||||||
| Item | Model | Voltage (V) |
Capacity (Ah) |
Cell Configuration | Cell Type | Max. Discharging Current (A) | Max. Charging Current (A) | Size (L*W*H) (mm) |
Weight (kg) |
| 1 | -6V/6AH | 6 | 6 | 1P2S | IFR32700 6000mAh | 6 | 6 | 70*47*100 | 0.38 |
| 2 | -12V/6AH | 12 | 6 | 1P4S | IFR32700 6000mAh | 6 | 6 | 90*70*101 | 0.7 |
| 3 | -12V/7AH | 12 | 7 | 2P4S | IFR26650 3600mAh | 7 | 7 | 151*65*94 | 0.88 |
| 4 | -12V/12AH | 12 | 12 | 2P4S | IFR32700 6000mAh | 12 | 12 | 181*77*170 | 1.42 |
| 5 | -12V18Ah | 12 | 18 | 3P4S | IFR32700 6000mAh | 18 | 18 | 181*77*170 | 2.3 |
| 6 | -12V24Ah | 12 | 24 | 4P4S | IFR32700 6000mAh | 24 | 24 | 180x77x168 | 2.756 |
| 7 | -12V/36AH | 12 | 36 | 6P4S | IFR32700 6000mAh | 36 | 36 | 256x165x210 | 4.084 |
| 8 | -12V/50AH | 12 | 50 | 1P4S | EA01 50Ah | 50 | 50 | 229*138*208 | 5.96 |
| 10 | -12V/60AH | 12 | 60 | 1P4S | EA06 59Ah | 59 | 30 | 256x165x210 | 5.58 |
| 11 | -12V/80AH | 12 | 80 | 5P4S | GX 17Ah | 30 | 30 | 330*173*216 | 7.72 |
| 12 | -12V/100AH | 12 | 100 | 2P4S | EA01 50Ah | 100 | 100 | 256x165x210 | 10.5 |
| 14 | -12V/120AH | 12 | 120 | 2P4S | EA06 59Ah | 120 | 60 | 256x165x210 | 10.86 |
| 15 | -12V/150AH | 12 | 150 | 3P4S | EA01 50Ah | 150 | 75 | 330*173*216 | 15.66 |
| 16 | -12V/180AH | 12 | 180 | 3P4S | EA06 59Ah | 180 | 90 | 330*173*216 | 16.54 |
| 17 | -12V/200AH | 12 | 200 | 4P4S | EA01 50Ah | 200 | 100 | 490*171*240 | 20.88 |
| 18 | -12V/300AH | 12 | 300 | 6P4S | EA01 50Ah | 200 | 150 | 520*267*220 | 31.32 |
| 19 | -24V/100AH | 24 | 100 | 2P8S | EA01 50Ah | 100 | 50 | 490*171*240 | 19.48 |
| 20 | -24V/150AH | 24 | 150 | 3P8S | EA01 50Ah | 150 | 75 | 520*267*220 | 29.22 |
For more please contact me freely and hope more than 13years of battery area can help you out:
