| Place of Origin: | MADE IN CHINA |
| Brand Name: | /OEM |
| Certification: | CE KC UN38.3 |
| Model Number: | 48500F-T210A |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negociatable |
| Packaging Details: | 1pcs/box, 10pcs/ctn |
| Delivery Time: | 3-7days for sales |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs/day |
| Material: | Lithium LiFEPO4 | Capacity: | 500Ah |
|---|---|---|---|
| Normal Voltage: | 48V | SIZE: | (960*630*362mm)±5mm |
| CYCLE LIFE: | ≥2500 | Internal Iedance: | Less Than 50mΩ |
| CELL: | 2770180--3.2V/25Ah | PACKAGING: | 15S20P |
| High Light: | solar lifepo4 battery,prismatic lifepo4 battery |
||

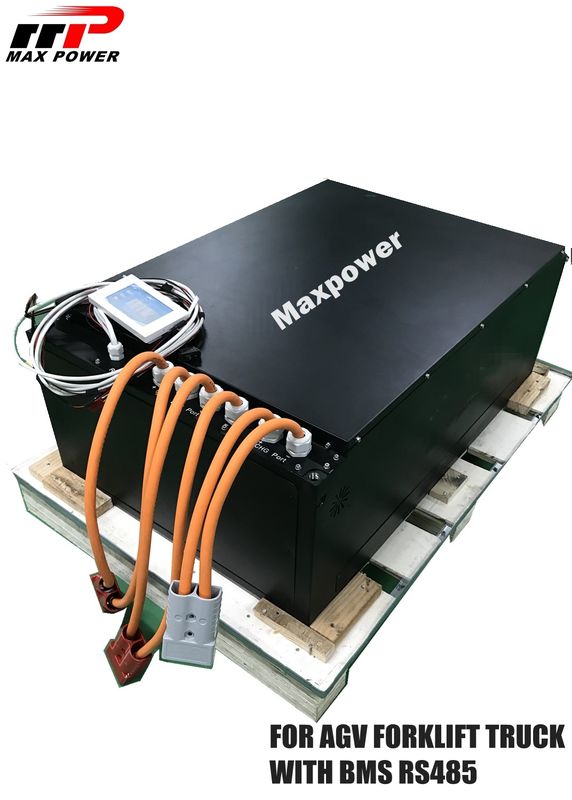

Long life cycles LiFePO4 Battery 48V 500Ah 48500F-T210A for AGV Forklift truckwith BMS RS485
Cell Type : IFR 2770180--3.2V/25Ah
Chemistry : Li-FePO4
Cell configuration : 15S20P
Additional Function : Interface RS485
Protection :
A. Over Charge Protection
B. Over Discharge Protection
C. Over Current Protection
D. Battery teerature
E. Short Protection
F. Balance
Function:
1.charge: 200A, discharge: 600A
2. With LCD display, show 4lines content of SOC/SOH/Cell Voltage/Pack Voltage/ Curent/Teerature/
Warning condition/Protection condition
3. With weak current switch(motherboard switch)
4. No COMMS in static condition, one hour later will go into hibernation, can charge,discharge, push-button,
communication wake-up.
Long cycle life design with more than 2 years
Accept cutomized lifepo4 battery pack
MSDS UN38.3 IEC CB certificate can be available for safety delivery
Air delviery sea deliver and door to door courier service by DG cargos are available
1. 500Ah 48V LIFePo4 Battery Specification:
| NO | Items | Description |
| Normal Specification | ||
| 1 | Nominal voltage | 48V |
| 2 | Normal capacity | 500Ah |
| 3 | Minimum capacity | 490Ah |
| 4 | Internal resistance | ≤100mΩ |
| 5 | Cell | 2770180--3.2V/25Ah |
| 6 | Series and parallel number | 15S20P |
| Standard Charge | ||
| 7 | Battery operation teerature range | 0~45℃ |
| 8 | Normal charge voltage | 54.75±0.2V |
| 9 | Recommended float charge voltage | 51.75±0.2V |
| 10 | Standard charge current | 200A |
| 11 | Allowed maximum charge current | 250A |
| Standard Discharge | ||
| 12 | Battery operation teerature range | -20~60℃ |
| 13 | Output voltage range | 54.75~37.5V |
| 14 | Standard discharge current | 200A@Battery initial Te 25±5℃ |
| 16 | Maximum discharge current | 600A/18min |
| 17 | Pulse discharge current Withstand | 1200A/3s |
| 18 | Discharge cut-off voltage | 37.5V |
| Mechanical Characteristics | ||
| 19 | Size | (960*630*362mm)±5mm |
| 20 | Weight | About 300Kgs |
| 21 | Cycle life(100%DOD) | ≥2500次 With standard charge and discharge |
| Storage | ||
| 22 | Storage Teerature&a; Humidity Range | Short: within one month -20~35℃, 45~75%RH |
| Long term: above one month -10~30℃, 45~75%RH | ||
3.Draw of outline:
Circuit Protection:
The batteries are supplied with a LiFePO4 Battery Management System (BMS) that can monitor
and optimized each single cylindrical cell during charge &a; discharge, to protect the battery pack
overcharge, over discharge, short circuit, over-teerature, over-current and balance. Overall,
the BMS helps to ensure safe and accurate running.
| No. | VOLTAGE | TYPICAL CAPACITY | COMMUNICATION | CHARGE | DISCHARGE | DIMENSION(MM) |
| 1 | 24V | 60Ah | CANBUS | 1C | 1C | 360*270*130 |
| 2 | 24V | 80Ah | RS485 | 1C | 1.25C | 365*240*220 |
| 3 | 24V | 80Ah | CANBUS,Self-heating | 2C | 1C | 444.5*290*151 |
| 4 | 48V | 20Ah | RS485 | 2C | 1C | 470*170*120 |
| 5 | 48V | 60Ah | CAN | 1C | 1C | 390*436*185 |
| 6 | 48V | 80Ah | RS485 | 1C | 1C | 436*390*250 |
| 7 | 48V | 100Ah | RS485 | 1C | 0.5C | 650*450*250 |
| 8 | 48V | 150Ah | CANBUS, BMS active equalization | 1.5C | 1.5C | 515*400*290 |
| 9 | 80V | 400Ah | RS485 | 0.5C | 1C | 1093*585*760 |
| 10 | 220V | 80Ah | RS485&a;CANBUS | 1C | 0.5C | 700*650*400 |
Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
Q: Can you print my logo on the battery cover?
A: Yes, custom logo service and branding is available.
Q: Is sale order acceptable?
A: Yes, for most of the batteries, sale orders for testing quality is reasonable and acceptable.
Q: How should I place an order?
A: Alibaba trade assurance order and offline orders are both acceptable.
Q: How should I pay? What modes of payment do you accept?
A: T/T, Paypal, Western Union &a; Trading Assurance acceptable.
Q: Are renowned international brand battery cells available?
A: Yes international brand cells are available, please contact us for details.
Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
