| Place of Origin: | CHINA |
| Brand Name: | /OEM |
| Certification: | UL IEC EN61951 |
| Model Number: | AA2500 |
| Minimum Order Quantity: | 3000pks |
|---|---|
| Price: | negociate |
| Packaging Details: | 20pcs/box, 480pcs/ctn |
| Delivery Time: | 3-30days according the qty |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300000pcs/day |
| Material: | NI-MH | SIZE: | AA |
|---|---|---|---|
| Capacity: | 2500mAh | Voltage: | 1.2V |
| Type: | NI-MH Rechargeable Battery | Internal Iedance: | ≤18mΩ |
| Advantage: | Ready To Use | ||
| High Light: | 2500mAh Low Self Discharge Battery,1.2V Low Self Discharge Battery,KC Nimh AA Rechargeable Batteries |
||

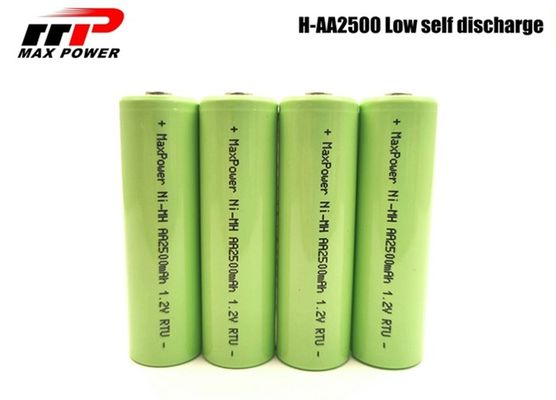

NIMH AA2500mAh 1.2V Ready-to-Use very low self discharge Nimh battery
with UL IEC/EN61951 certification.
Ready To Use and low self discharge technology to keep high capacity retention
Low self-discharge, environmentally friendly.
Very stable and high discharge performance
Nickel plated,high intensity steel shell, high charge efficiency, anti-corrosion, durable for using.
OQC report and Lab testing offered before battery delivery to keep tracking records
Safety anti-explosion leakproof,bottom insulation ring, auto safty valve.maintenance free.
Cyle life more than 500 cycles, No memory effect.
HIgh cost performance
MSDS UN38.3 CB IEC DG License for overseas air sea and courier delivery
1. Specification of the battery pack:
| Item | Specification | Conditions |
| Nominal Voltage | 1.2 V | |
| Open circuit voltage | ≥ 1.25V | Within 1 hr after standard charge |
| Nominal Capacity | 2500 mAh | |
| Minimum Capacity | ≥2500 mAh(0.2C) | Standard charge and Standard discharge |
| ≥2500 mAh(0.3C) | Standard charge and Rapid discharge | |
| Internal Iedance | ≤18mΩ | Within 1 hr after standard charge |
| Charge-retention Rate | Charge retention rate ≥Nominal capacity 60%(600mAh) | Storage a period of 28 days after standard charge, then Standard discharge (0.2C) to 1.0V |
| Cycles Test | ≥ 500 Cycles | IEC61951-2:2003 |
A.Safety-- gas hole: advanced secondary explosion-proof design
B. Nical plated steel shell and positive cap: irove the charging efficiency, anti-corrosion
C. Enviromental friendly material: All materials passed the ROHS certification.
Sale delivery: 3 -4days.
Mass production period: 10-15days
2. Discharge characteristic
3. Safety test
Over discharge: 0.1C charge for 48hrs No conspicuous deformation and/or leakage.
Charge reserve: Standard charge Storage: 28 days Standard discharge (0.2C) ≥180min
Humidity: Standard charged, stand for 10 days at 33±3℃ and 80±5% of relative humidity No leakage
External Short Circuit: After standard charge, short-circuit the cell at 20 ℃ ± 5 ℃ until the cell teerature returns to ambient teerature.(cross section of the wire or connector should bemore than 0.75mm2) No fire and no
explosion
Vibration Resistance: Charge of voltage should be under 0.08V/pack, change of iedance should be under20milli-ohm/cell.
Drop Test: △V<0.02V/cell △Ri<5%/cell Charge at 0.1C for 16hrs,and then leave for 24hrs,check battery before / after drop
| Size | Model No. | Nominal Voltage (V) | Nominal Capacity (mAh) | Dimension with Tube | Weight Approx.(g) | |
| Diameter (mm) | Height(mm) | |||||
| AA | H-2/3AA600 | 1.2 | 600 | 14.5 | 29.0 | 13 |
| H-2/3AA700 | 1.2 | 700 | 14.5 | 29.0 | 14 | |
| H-7/5AA1800 | 1.2 | 1800 | 14.5 | 67.0 | 28 | |
| H-AA300A | 1.2 | 300 | 14.5 | 50.5 | 16 | |
| H-AA400A | 1.2 | 400 | 14.5 | 50.5 | 17 | |
| H-AA800A/B | 1.2 | 800 | 14.5 | 50.5 | 21 | |
| H-AA2000A | 1.2 | 2000 | 14.5 | 50.5 | 30 | |
| H-AA2100A | 1.2 | 2100 | 14.5 | 50.5 | 29.5 | |
| H-AA2400A | 1.2 | 2400 | 14.5 | 50.5 | 31.6 | |
| H-AA2700A | 1.2 | 2700 | 14.5 | 50.5 | 31.6 | |
Application:
Used for GPS, cordless phone, solor lighting, electric productions,shavers, torch light...
Package:
Can do OEM foil rolling, PVC tube, shrink pack, blister card packing, color box or plastic box package
