| Place of Origin: | China |
| Brand Name: | MaxPower/OEM/China TOP brand |
| Certification: | CE UL CB UN38.3 MSDS IEC ENC BIS |
| Model Number: | 18650 3200mAh |
| Minimum Order Quantity: | 1000PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton ,Box ,Tray. |
| Battery Type: | Li-ion Cell | Capacity: | 3200mAh |
|---|---|---|---|
| Voltage: | 3.7V | Weight: | 49g |
| Guarantee: | One Year | Life Cycle: | 1000 Cycles |
| Internal Resistance: | ≤60 MΩ(with PTC、CID) | Size: | D18.6mm*H65.3mm |
| High Light: | UN38.3 Lithium Ion Rechargeable Batteries,3200mAh Lithium Ion Rechargeable Batteries,3200mAh 18650 Lithium Ion Batteries |
||

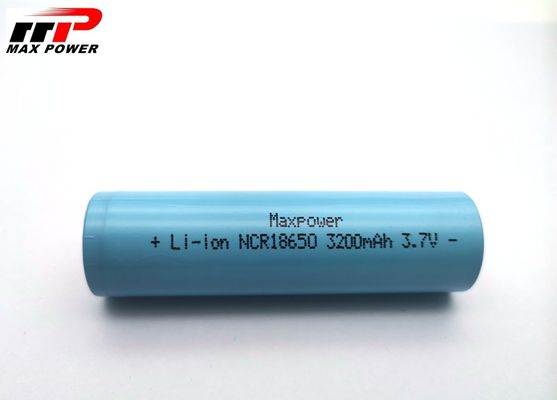

3200mAh 18650 Lithium Ion Rechargeable Batteries Cleaner Robot Power Cell
18650 3200mAh 3.7V Rechargeable cylindrical Lithium Ion Batteries 3.7V CE BIS IEC2133 CB UL
Specification of the 18650 3200mAh battery:
| Technical Parameters | Specification | Condition/Note | |
| Capacity | Typical | 3200mAh | Standard charge/discharge |
| Minimum | 3100mAh | ||
| Nominal Voltage | 3.6V | ||
| Internal Iedance | ≤40mΩ AC 1kHz | ||
| Standard Charge | 0.5C(1550mA) | Constant current | |
| 4.2V | Constant voltage | ||
| 50mA | End condition(Cut off) | ||
| Rapid Charge | 1.0C(3100mA) | Constant current | |
| (Not for cycle) | 4.2V | Constant voltage | |
| 50mA | End condition(Cut off) | ||
| Standard Discharge | 0.2C(620mA) | Constant current | |
| 2.5V | End voltage(Cut off) | ||
| Max. Continuous Discharge Current | 3C(9300mAh) | ||
| Weight | 46.0 ± 1.0g | ||
| Max. Dimension | Diameter (Ф) 18.6mm | ||
| Height (H) 65.2mm | |||
| Operating Teerature(Charge) | Teerature | Max. Continuous Charge Current | |
| 0℃ ≤ T ≤ 15℃ | 0.2C(620mA) | ||
| 15℃ <T ≤ 30 ℃ | 0.5C(1550mA) | ||
| 30℃ <T ≤ 45 ℃ | 1.0C(3100mA) | ||
| Operating Teerature(Discharge) | Teerature | Max. Continuous(Discharge Current) | |
| -20℃ ≤ T ≤0℃ 0.2C(620mA) | 0.2C(620mA) | ||
| 0℃ <T ≤ 10℃ 0.5C(1550mA) | 0℃ <T ≤ 10℃ 0.5C(1550mA) | ||
| 10℃ <T ≤ 45℃ 3.0C(9300mA) | 10℃ <T ≤ 45℃ 3.0C(9300mA) | ||
| 45℃ < T ≤ 50℃ 1.0C(3100mA) | 45℃ < T ≤ 50℃ 1.0C(3100mA) | ||
| Storage Teerature | One month | -20℃ ~ 50℃ | |
| Three months | -20℃ ~ 45℃ | ||
| One year | -20℃ ~ 25℃ | ||
| Overheat Protection Teerature | 65℃ | ||
| Stop discharging | when cell surface teerature ≥ 65℃ | ||
More pics.
Application :
vacuum cleaner, vacuum robot, Torches , Flash light ,power tools , LED light , Emergency lighting, Toys ,
Robot ,Medical device ,sweeper , E-Bike , electric toothbrush,Consumer devices ETC.
POWER CELL(high rate for power tools)
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 14500 | 14500 | 850 | 3.6 | ≤70 | 2.75 | 1.7A(2C) | above 300 | -20~60 |
| 2 | 18650 | 18650P | 2000 | 3.6 | ≤20 | 2.75 | 20.0A(10C) | above 300 | -20~60 |
| 3 | 18650T | 2000 | 3.6 | ≤40 | 2.75 | 6.6A(3C) | above 500 | -40~90 | |
| 4 | 18650P5 | 2200 | 3.6 | ≤20 | 2.75 | 11.0A(5C) | above 5300 | -20~75 | |
| 5 | 18650P8 | 2500 | 3.6 | ≤18 | 2.5 | 30A(12C) | above 250 | -20~80 | |
| 6 | 18650M6 | 2600 | 3.6 | ≤35 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 7 | 18650M7 | 2600 | 3.6 | ≤30 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 8 | 18650P9 | 2900 | 3.6 | ≤40 | 2.5 | 8.7A(3C) | above 1000 | -20~60 | |
| 9 | 18650M9 | 3200 | 3.6 | ≤40 | 2.5 | 9.3A(3C) | above 1000 | -20~60 | |
| 10 | 21700 | 21700F2E | 5000 | 3.62 | ≤25 | 2.5 | 14.4A(3C) | above 1000 |
-20~60 |
Energy Cell:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 18650 | 18650F56 | 2200 | 3.7 | ≤60 | 3 | 2.2A(1C) | above 300 | -20~60 |
| 2 | 18650R8 | 2600 | 3.7 | ≤60 | 3 | 2.6A(1C) | above 300 | -20~60 | |
| 3 | 18650F30 | 3000 | 3.7 | ≤60 | 3 | 4.5A(1.5C) | above 300 | -20~50 | |
| 4 | 18650L9 | 3350 | 3.6 | ≤60 | 2.5 | 4.8A(1.5C) | above 300 | -20~50 | |
| 5 | 21700 | 21700F2 | 5000 | 3.62 | ≤40 | 2.5 | 7.5A(1.5C) | above 300 | -20~50 |
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact me freely, wish 13years experience in battery area can help you out
in your project.
