| Place of Origin: | China |
| Brand Name: | MAXPOWER |
| Certification: | CE,ROHS, UL, EN50020 |
| Model Number: | -ER10450 750mAh 3.6V |
| Price: | negotiable |
|---|---|
| Packaging Details: | white / gift box |
| Delivery Time: | 7-10 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2, 000, 000PCS |
| Highlight: | camera lithium batteries,lithium mno2 battery |
||
|---|---|---|---|

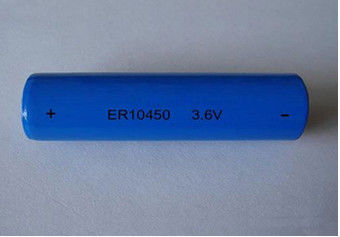

750 MAH Li-Socl2 Battery 3.6V For , Lighting - Night vision
Quick Detail:
Rated Capacity: 750mAh
Nominal Voltage: 3.6V
Size : 10.4 *45.3 mm (Diameter*Height)
Primary Lithium battery
Operating Teerature: -55 ℃ to 150 ℃
Long shelf life: 15-20 years
Energy Type
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) |
Standard Discharge Current(mA) |
Max.Discharge Current(mA) |
Weight (g) | Diameter (mm) | Height (mm) | |
| Continuous | Pulse | |||||||
| ER14250 | 3.6 | 1200 | 0.5 | 50 | 100 | 10.0 | 14.5 | 25.2 |
| ER14335 | 3.6 | 1600 | 1.3 | 50 | 100 | 13.0 | 14.5 | 33.5 |
| ER14505 | 3.6 | 2400 | 2.0 | 100 | 200 | 19.0 | 14.5 | 50.5 |
| ER17335 | 3.6 | 1900 | 2.0 | 100 | 200 | 18.0 | 17.5 | 33.5 |
| ER17505 | 3.6 | 3400 | 2.0 | 100 | 200 | 27.0 | 17.5 | 50.0 |
| ER18505 | 3.6 | 3500 | 2.0 | 100 | 200 | 32.0 | 18.8 | 50.5 |
| ER26500 | 3.6 | 8500 | 3.0 | 200 | 400 | 55.0 | 26.2 | 50.0 |
| ER34615 | 3.6 | 19000 | 5.0 | 230 | 500 | 106.0 | 34.0 | 61.5 |
High Power Type
| Model | Nominal Voltage (V) | Nominal Capacity (mAh) | Standard Discharge Current(mA) |
Max.Discharge Current(mA) |
Weight (g) | Diameter (mm) | Height (mm) |
| ER14250M | 3.6 | 750 | 4.0 | 200 | 400 | 10.0 | 14.5 | 25.0 |
| ER14505M | 3.6 | 2000 | 10.0 | 400 | 800 | 22.0 | 14.5 | 50.5 |
| ER17505M | 3.6 | 2800 | 10.0 | 600 | 1000 | 30.0 | 17.5 | 50.5 |
| ER18505M | 3.6 | 3000 | 10.0 | 600 | 1000 | 32.0 | 18.5 | 50.5 |
| ER26500M | 3.6 | 6500 | 10.0 | 1000 | 1500 | 55.0 | 26.2 | 50.0 |
| ER34615M | 3.6 | 14500 | 10.0 | 2000 | 3000 | 107.0 | 34.0 | 61.5 |
Description:
High energy density
High voltage
Has wide working teerature from minus 60 ℃ to 150 ℃.
With annual capacity fading less than 1% stored at room teerature
With long life usage up to 15~20 years
Absolute secure (UL certificate available)
Very widely used for different applications
Widely applied for PLC, Automotive electronics, GPS, Remote monitoring, Wireless safety system, wireless sensor, security and emergency system, Intelligent water meter, gas meter, electricity meter, Medical equipment, Portable device, backup memory power, mine, missile, Radar and etc.
Appendix 1 : Discharge curves
Discharge Performance(25℃)
Appendix 2 : Voltage Vs Teerature
Discharge Performance
Appendix 3 : Capacity Vs Current
Discharge performance
Applications:
PLC, Automotive electronics, GPS, Remote monitoring, Wireless safety system, wireless sensor, security and emergency system, Intelligent water meter, gas meter, electricity meter, Medical equipment, Portable device, backup memory power, mine, missile, Radar and etc.
Specifications:
|
Bitmap |
MAXPOWER INDUSTRIAL CO.LTD |
|
-LiSOCL2 750mAh 3.6V Lithium battery |
|
|
Model |
-ER10450 750mAh 3.6V |
|
Nominal Voltage |
3.6V |
|
Rated Capacity |
750mAh |
|
Max Dimension |
10.4*45.3mm (Diameter*Height) |
|
Max continuous discharge current |
15mA |
|
Max pulse current |
50 mA |
|
Standard discharge |
Discharge to 2.0V 1mA |
|
Weight |
Approx. 12 g |
|
Working teerature |
-60 ℃ to 150 ℃ |
|
Storage teerature |
-10 ℃ to 40 ℃ |
|
Storage life |
≥10 year (Annual self-discharge ≤ 1%) |
Coetitive Advantage:
Long shelf life up to 15-20 years
The top manufacturer in China with 20 years experience
High cost/price performance
Quick delivery with 7 days after order confirmed
Excellent post-sales service
5 year quality warranty
