High Capacity Lithium Ion Rechargeable Batteries
rechargeable lithium ion batteries
,lithium ion aa rechargeable battery

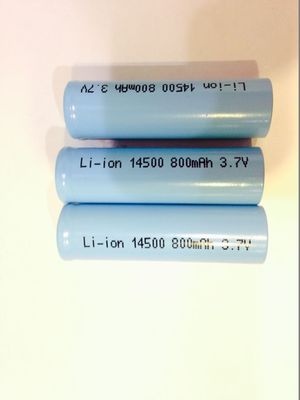

14500 Lithium Ion Rechargeable Batteries 800mAh 3.7V BackUp Power UL
Quick details:
1. Diameter*Height: 14*05mm (Lithium Ion 14500 size)
2. Nominal Voltage: 3.7V
3. Nominal Capacity: 800mAh
4. Discharge cut off voltage: 3.0V
5. Standard charging ways: CC / CV
6. Li-ion / Lithium Ion / Lithium-Ion rechargeable battery cell
Description:
Rechargeable 14500 Lithium Ion battery for backup Power
1000 cycle life
Ultra high energy density, light weight
High working voltage
High discharge platform
Long Storage life
Environmental friendly,clean Green energy
High quality PCM protection IC from Japan
Coetitive Advantages:
24 months warranty after shipment
Good factory price
prot delivery
Excellent post-sales service
Application:
BackUp Power,E - Bike, E - Bicycle, Medical device,Electric Bike,Emergency lighting,medical equipment,Portable electronic products,Electric Bicycle,Cordless drill,power tools , street lights,Electric sweeper,body care meter,communication device,consumer electronic instrument.
Specifications:
|
MAXPOWER INDUSTRIAL CO.LTD - 14500 3.7V 800mAh battery specification |
|
|
Model |
- 14500 800mAh 3.7V |
|
Diameter*Height |
14*50mm |
|
Nominal Voltage |
3.7V |
|
Nominal Capacity |
800mAh |
|
Iedance |
<40 mΩ |
|
Discharge cut-off voltage |
3.0V |
|
Maximum Charge voltage |
4.2V |
|
Standard charge current |
Constant Current 0.2C Constant Voltage 4.2V 0.01 C5A cut-off |
|
Standard discharge current |
Constant current 1C5A end voltage 3.0V |
|
Maximum Continuous Discharge Current |
6300mA |
|
Working teerature |
Charge:0-45 degree |
|
Discharge:-20-60 degree |
|
|
Storage teerature |
minus 20 - 45degree |
|
Normal teerature capacity |
800mAh |
|
Cycle life |
1000 cycles |
Cylindrical Li-ion Rechargeable Batteries
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 |
