| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | IEC CB UN38.3 MSDS |
| Model Number: | LTO Battery 60AH |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Carton, UN Carton , Customized package |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, Western Union, T/T,paypal,xtransfer |
| Supply Ability: | 30000PCS PER Day |
| Battery Type: | Lithium Titanium Oxide Battery | Voltage: | 2.3V LTO Battery |
|---|---|---|---|
| Capacity: | 60AH | Dimension: | T*W*L:13*263*266mm |
| Weight: | 1745g | Cycle Life: | More Than 20,000 Cycles |
| High Light: | 60Ah Lithium Titanium Oxide Battery,EV ESS Pouch LTO Battery,long cycling LTO Battery 60Ah |
||

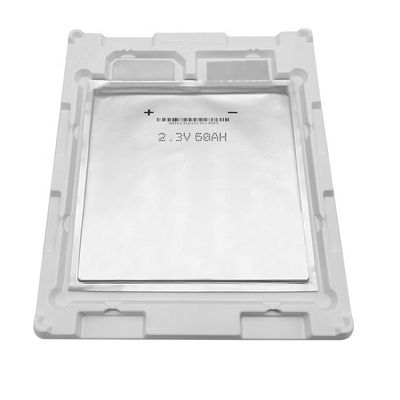

LTO Battery Lithium Titanium Oxide Battery Pounch cell 60Ah
NMC-G Graphite 2.2V 60Ah 8C/20C Discharge Rate Pouch LTO Battery
support 8C Continuous 20C Peak
good safety and long cycling performance for EV and ESS application.
Support fast charger takes only 10 minutes
High safety with extra long life design more than 20,000 cycles
Accept LTO Battery Module and customized battery pack
| Name | High-performance lithium titanate battery | |
| Rated Capacity | 60Ah | |
| Rated Voltage | 2.3V | |
| Resistance(AC) | <0.5mg | |
| Weight | 1.75kg | |
| Energy Density | ≥79Wh/kg | |
| ≥170Wh/L | ||
| Power Density | 1400W/kg | |
| 3200W/L | ||
| Dimension | T×W×H(mm) | 13×266×263 |
| Standard Discharging | Constant Current/Cut-off Voltage |
1-8C/1.5V |
| Standard Charging | Constant Current/Cut-off Voltage |
1-5C/2.8V |
| cycle life | >20,000+ cycles at 100% DOD | |
| Operating teeratureT | -30℃—60℃ | |
| Storage teerature T | -10℃—45℃ | |
The overall structure is coosed of 16 60Ah electric cores in series,using automatic ultrasonic welding (tensile strength>2000N), welding processEnd plateconsistency is good, welding resistance is small (less than 0.5mΩ)
