| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | IEC CB UN38.3 MSDS |
| Model Number: | LTO Battery 16AH |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Carton, UN Carton , Customized package |
| Delivery Time: | 7working days |
| Payment Terms: | L/C, Western Union, T/T,paypal, |
| Supply Ability: | 30000PCS PER Day |
| Battery Type: | Lithium Titanium Oxide Battery | Voltage: | 2.3V LTO Battery |
|---|---|---|---|
| Capacity: | 16AH | Dimension: | T*W*L:13*110*216mm |
| Weight: | 672g | Cycle Life: | More Than 20,000 Cycles |
| High Light: | 16Ah Lithium Titanium Oxide Battery,IEC 2.3V LTO Battery,16AH Capacity LTO Battery |
||
-40 °c ----- 85 °c wide range working teerature LTO Battery 16Ah Lithium Titanium Oxide Battery
Technical Parameters
| Item | Parameter | |
| Model | 13110216 | |
| System Name | LMO/LTO | |
| Nominal Capacity | 16 Ah | |
| Nominal Voltage | 2.4 V | |
| Energy density | 38.4Wh(0.038 度电) | |

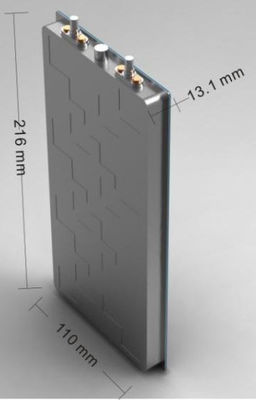

| Dimension | 110 mm*13.1mm *216mm | |
| Weight | 672 g | |
|
Operating Voltage |
Charge Cut-off Voltage | 2.7 V |
| Discharge Cut-off Voltage | 1.5 V | |
|
Standard Charging And
Discharging Current |
Charge Current | 1C(16 A) |
| Discharge Current | 1C(16 A) | |
| Max Charging Current | 4C(64 A) | |
| Max Discharging Current | 10C(160 A) | |
| Life-Cycle | ≥20000 次 | |
|
Operating Teerature |
-20℃-55℃(Special requirements can be
customized) |
|
| Storage Teerature | -10℃ — 45℃ | |
Charge And Discharge Curve At Room Teerature
55 ℃ High Teerature Discharge Curv
