| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | UL CE IEC62133 |
| Model Number: | LiFePo4 12V 24AH |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Price: | 100USD |
| Packaging Details: | PVC Package , Plastic case |
| Supply Ability: | 100000 PCS |
| Size: | Length :180mm Width: 166mm Height :76mm | Weight: | 3 Kg |
|---|---|---|---|
| Voltage: | 12V | Capacity: | 24Ah |
| Accessories: | Battery Charger | ||
| Highlight: | 12v lifepo4 battery,prismatic lifepo4 battery |
||

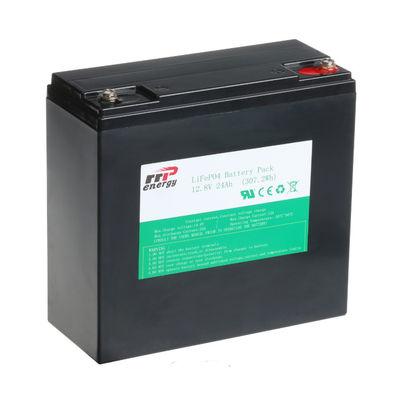

12V 24Ah Lithium LiFePO4 Battery Custom lithium battery Pack
1.Max Charge current : 20A
Max Discharge Current : 30A
2.Max Charge Voltage : 14.6+/- 0.1V
Cutt off Voltage : 10+/-0.1V
3.Long cycle life to be 2000 cycles
4. 2 years quality guarantee
5. High safety with individual battery protection system
Maintenance-Free ,Absorbent Glass Mat Technology
♦Low Self Discharge
♦Long Designed service Life ,Deep Cycle
♦Excellent Discharge Performance
♦Environment Friendliness
♦Wide suitability of ambient teerature range
12V Lithium battery Pack LiFePo4 20Ah battery Specification:
|
Index.
|
12V 20Ah battery Specification info |
Parameter
|
| 1 | Charging Method | CC-CV |
| 2 | Charging Voltage | 14.4±0.05V |
| 3 | Over Charging Protect | 3.650±0.025V |
| 4 | Standard Charging Current | 3.9A (0.2C) |
| 5 | Max. Charging Current | 15A |
| 6 | Cut-off Charging Current | 0.39A (0.02C) |
| 7 | Standard Discharging Current | 3.9A(0.2C) |
| 8 | Max. Discharging Current | 15A |
| 9 | Max Peak Discharging Current | 30A(1S) |
| 10 | Discharging cut-off Voltage | 10V |
| 11 | Over Discharging Protect | 2.5±0.08V |
| 12 | Over Charge Current | 40±5A |
| 13 | Over Discharge Current | 40±5A |
| 14 | Cell balancing voltage | 3.60±0.05V |
| 15 | Cell balancing current | 36±5mA |
| 16 | Internal Resistance | <180mOhm |
| 17 | Standard Charge Teerature | 0~45℃ |
| 18 | Standard Discharge Teerature | -20~60℃ |
| 19 | Storage Humidity | 65%RH not condensed |
Application:
Ebike Lithium Battery,e-wheelchair,Golf trolley
UPS,Street lighting,Portable electric appliance
Medical equipments
12V lithium battery packs with coact package delivery
MSDS UN38.3 DG license supported for sea air or courier delivery
