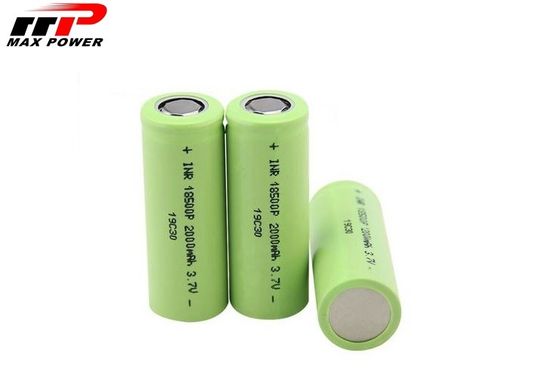

3.7V 18500 Li Ion Rechargeable Battery Pack Quick Discharge
18490 18500 2000mAh 3.7V Quick Discharge Li Ion Rechargeable Battery
18500 2000mAh 3.7V 1C 2Ah discharge rate Rechargeable cylindrical Lithium Ion Batteries super low teerature -40℃--60℃
for digital camara with CE BIS IEC2133 CB
- Lithium Ion Battery 18500 2000mAh 3.7V (series models are as below)
- High top Or Flat Top is available
- Normal type Li-ion Cell with very low teerature operating work
- The logo with MaxPower or OEM brand
- Accept the trial order around 1K with courier door to door service
- UL CE ROSH KC IEC62133 CCC UN38.3 MSDS BIS certification is aviliable for many li-ion battery models
- We accept the Customized battery pack and design OEM and ODM project.
Specification of the 18490 18500 2000mAh 3.7V cell:
| Technical Parameters |
Specification |
| Nominal Capacity |
2000mAh (0.2C5 ,2.5V discharge) |
| Minimum Capacity |
1940mAh (0.2C5 ,2.5V discharge) |
| Rated Capacity |
0.2C,2.50V discharge |
| 0.2C,2.50Vdischarge≥100% |
| 1.0C,2.50V discharge |
| 1.0C,2.50Vdischarge ≥92% |
| 3C,2.50V discharge |
| 3C,2.50Vdischarge ≥90% |
| Nominal Energy |
7.2Wh(0.2C,2.5V discharge) |
| Nominal Voltage |
3.6V(0.2C,2.5V discharge) |
| Standard Charge |
Method:CC-CV |
| Charging Voltage:4.2V |
| Charging Current:0.5C(1000mA) |
| Maximum Charge Current |
Cut-off Current:0.01C(20mA) |
| 1.0C(2000mA) |
| Standard Discharge |
Method:CC |
| Discharge Cut-off Voltage:2.5V |
| Discharging Current:0.2C(400mA) |
| Maximum Discharge Current |
2.0C(4000mA) |
| Weight |
≤34.5±2.0 g |
| Operating Teerature, Charge |
0~45℃ |
| Operating Teerature, Discharge |
-40~60℃ |
| Storage Teerature |
1 month:-20~45℃ |
| 3 months:-20~35℃ |
| 1 year:-20~25℃ |
The draw of the 18490,18500 cell:
NCR18500 18490 3.7v 2000mAh advantages:
* High energy density
* High voltage
* Pollution-free
* Long cycle life
* No memory effect
* Low self-discharge
* High rate charge/discharge
Li-ion battery applications:
* AGV car/AGV robot/Automatic guideless vehicle
* digital Cameras, radio/audio equipments, walkie-talkie, datalogger, data acqistion systems
* Security system, alarm system, industrial monitors/controllers
* Flashlight, LED light and other Lighting equipments
* Logistics storage equipments
* Medical equipments
* electronic communication devices
* Robots, Electric toy, kids car battery
* Locator, tracker and other vehicle-mounted products
* Other electric equipments
Hot saling model:
| models |
capactity |
models |
capactity |
note |
| 18650 |
1200mAh |
18350 |
700mah |
|
| 18650 |
1300mAh |
36600 |
7500mah |
(militery use) |
| 18650 |
1500mAh |
32600 |
5000mah |
(militery use) |
| 18650 |
1800mAh |
18500 |
1900mah |
|
| 18650 |
2000mAh |
18500 |
1200mah |
|
| 18650 |
2200mAh |
16310 |
850mah |
|
| 18650 |
2500mAh |
10840 |
650mah |
|
| 18650 |
2600mAh |
16650 |
1600mah |
|
| 18650 |
3400mah |
14650 |
1000mah |
|
Regular saling models:
| No. |
Type |
Models |
Capacity (mAh) |
Nominal Voltage (V) |
diameter ±0.05(mm) |
Height ±0.5(mm) |
|
| 1 |
Lithium Cylindrical |
13490 |
650 |
3.7 |
12.9 |
48.5 |
|
| 2 |
Lithium Cylindrical |
14430 |
650 |
3.7 |
13.9 |
42.5 |
|
| 3 |
Lithium Cylindrical |
14500 |
700 |
3.7 |
13.9 |
64.5 |
|
| 4 |
Lithium Cylindrical |
14650 |
800 |
3.7 |
13.9 |
64.5 |
|
| 5 |
Lithium Cylindrical |
14650 |
1100 |
3.7 |
13.9 |
64.5 |
|
| 6 |
Lithium Cylindrical |
17280 |
600 |
3.7 |
16.65 |
27.5 |
|
| 7 |
Lithium Cylindrical |
17335 |
750 |
3.7 |
16.65 |
33.5 |
|
| 8 |
Lithium Cylindrical |
17500 |
1100 |
3.7 |
16.65 |
48.5 |
|
| 9 |
Lithium Cylindrical |
17650 |
1200 |
3.7 |
16.65 |
64.5 |
|
| 10 |
Lithium Cylindrical |
17650 |
1600 |
3.7 |
16.65 |
64.5 |
|
| 11 |
Lithium Cylindrical |
18490 |
1200 |
3.7 |
18.05 |
48.5 |
|
| 12 |
Lithium Cylindrical |
18490 |
1400 |
3.7 |
18.05 |
64.5 |
|
| 13 |
Lithium Cylindrical |
18650 |
1400 |
3.7 |
18.05 |
64.5 |
|
| 14 |
Lithium Cylindrical |
18650 |
1800 |
3.7 |
18.05 |
64.5 |
|
| 15 |
Lithium Cylindrical |
18650 |
2000 |
3.7 |
18.05 |
64.5 |
|
| 16 |
Lithium Cylindrical |
18650 |
2200 |
3.7 |
18.05 |
64.5 |
|
| 17 |
Lithium Cylindrical |
18650 |
2600 |
3.7 |
18.05 |
65.5 |
|
| 18 |
Lithium Cylindrical |
18740 |
1600 |
3.7 |
18.05 |
71.5 |
|
| 19 |
Lithium Cylindrical |
21750 |
3200 |
3.7 |
21.5 |
74.5 |
|
| 20 |
Lithium Cylindrical |
22430 |
2000 |
3.7 |
22.05 |
42.5 |
|
| 21 |
Lithium Cylindrical |
26650 |
3000 |
3.7 |
26.05 |
64.5 |
|
| High Rate Series Li-ion 18650 re-chargeable battery |
|
| No. |
Type |
Models |
Capacity (mAh) |
Nominal Voltage (V) |
diameter ±0.05(mm) |
Height ±0.5(mm) |
Discharge Rate(10C) |
| 1 |
Lithium Cylindrical |
18650P-1100 |
1100 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 2 |
Lithium Cylindrical |
18650P-1200 |
1200 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 3 |
Lithium Cylindrical |
18650P-1300 |
1300 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 4 |
Lithium Cylindrical |
18650CP-1400 |
1400 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 5 |
Lithium Cylindrical |
18650CP-1500 |
1500 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 6 |
Lithium Cylindrical |
18650CP-1600 |
1600 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 7 |
Lithium Cylindrical |
18650CP-1700 |
1700 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 8 |
Lithium Cylindrical |
18650CP-1800 |
1800 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 9 |
Lithium Cylindrical |
18650CP-1900 |
1900 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 10 |
Lithium Cylindrical |
18650CP-2000 |
2000 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 11 |
Lithium Cylindrical |
18650CP-2100 |
2100 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
| 12 |
Lithium Cylindrical |
18650CP-2200 |
2200 |
3.7 |
18.05 |
64.5 |
10C 15C 20C |
For more please contact me freely:
