| Place of Origin: | China |
| Brand Name: | MaxPower |
| Certification: | UN38.3 MSDS CE CB |
| Model Number: | 12.8V 200Ah |
| Minimum Order Quantity: | 10PKS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard export carton , Export Pallet |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, Western Union, T/T,Paypal |
| Supply Ability: | 30000PCS PER Day |
| Battery Type: | Lithium LiFePo4 Battery | Voltage: | 12.8V |
|---|---|---|---|
| Capacity: | 200Ah | Dimension: | 522*238*217*217mm, Support Customized Size |
| Weight: | 23.5kg | Guarantee: | 3 Years |
| High Light: | 4S34P Lithium LiFePO4 Battery,32700 Lithium LiFePO4 Battery,4S34P Rechargeable Li Ion Battery |
||

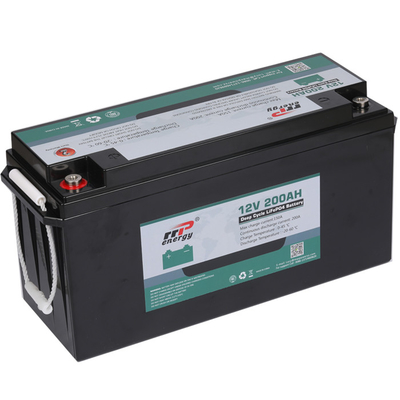

Rechargeable 32700 4S34P Lithium LiFePO4 Battery 72V 48V 36V 24V 12V
72V 48V 36V 24V 12V LiFePO4 Rechargeable Li-Ion 32700 4S34P 12V 200Ah Lithium LiFePO4 Battery
Designed for Caing car RV Marine boat Yacht
1. Rechargeable Deep Cycle Battery Pack safety design
2. Grade A lifepo4 battery cell
3. Light weight and high discharge power
4. Can go for more than 3500 cycles.
5. MSDS UN38.3 DG license for overseas delivery support
12.8V 200Ah Lithium Ion phosphate Lifepo4 Battery box Specification:
| Electrical | Nominal Voltage | 12.8V |
| Characteristics | Nominal Capacity | 200Ah@0.2C |
| Energy | 2560Wh | |
| Internal Resistance | ≤35mΩ | |
| Cycle Life | 2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
| Self Discharge | ≤3.5% per month at 25℃ | |
| Standard Charging | Max.Charging Voltage | 14.0~14.6V |
| Charging Mode | At 0℃~45℃ teerature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C | |
| Charging Current | 100A | |
| Max.Charging Current | 100A | |
| Standard Discharging | Discharging Current | 200A |
| Max. Continuous Current | 200A | |
| Max.Pulse Current | 400A(<3S) | |
| Discharging Cut-off Voltage | 10 | |
| Operating Condition | Charge Teerature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Teerature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity | |
| Storage Teerature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity | |
| Water Dust Resistance | IP55 | |
| Structure | Cell &a; Format | IFR32700 N60,4S34P |
| Casing | Plastic | |
| Dimension(L*W*H*TH) | 522*238*217*217mm | |
| Package Dimension | 570*310*297mm | |
| Weight | Approx. 23.5Kg | |

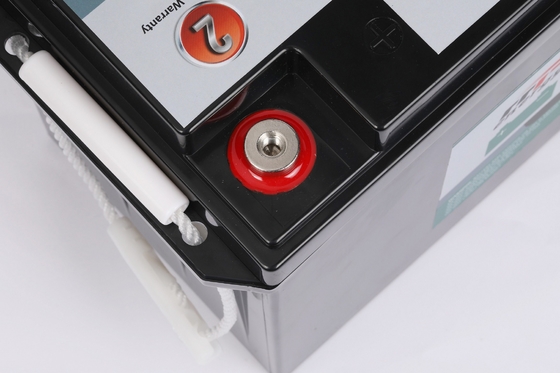

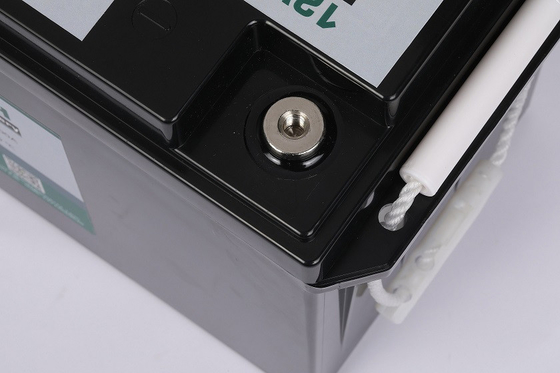

| Terminal | M8 |

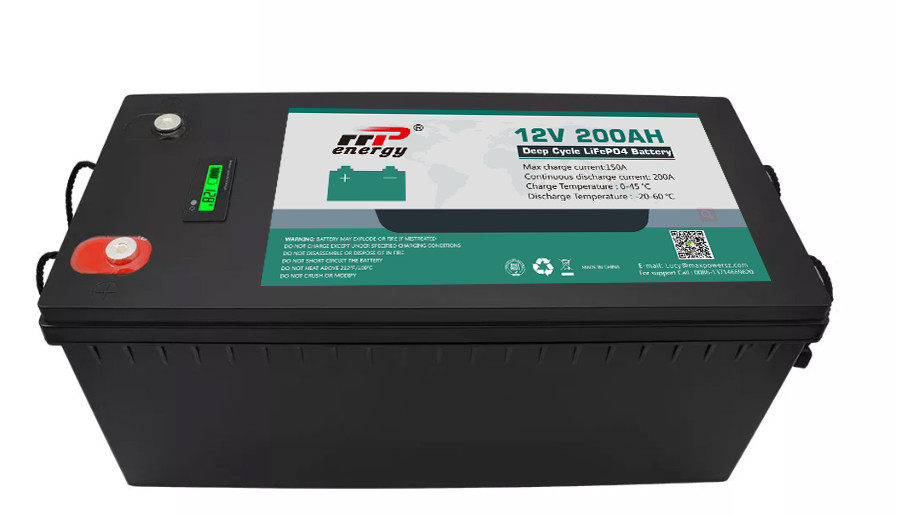

1. Can add LCD fuel gauge.
12.8V 200Ah Lithium Ion phosphate Lifepo4 Battery box Advantage:
◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
Lithium 12.8v 200AH battery pack Application: Caing car RV Boat Marine Yacht
Lithium battery 12.8V coact package suitable for overseas delivery via air sea or courier delivery .
MSDS UN38.3 and DG license offered to cusotmer side.
