| Place of Origin: | Japan |
| Brand Name: | SANYO |
| Certification: | IEC CE MSDS UN38.3 |
| Model Number: | UR18650ZM2 |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | UN Carton, Customized carton ,Standard export carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS PER DAY |
| Battery Type: | Rechargeable Li-ion Battery | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 2550mAh | Dimension: | Diameter :18mm Height :64.85mm |
| Weight: | 40g | Guarantee: | Two Year |
| High Light: | 3.7V 18650 Lithium Ion Rechargeable Batteries,3.7V 2550mAh Lithium Ion Rechargeable Batteries,Sanyo UR18650ZM2 |
||

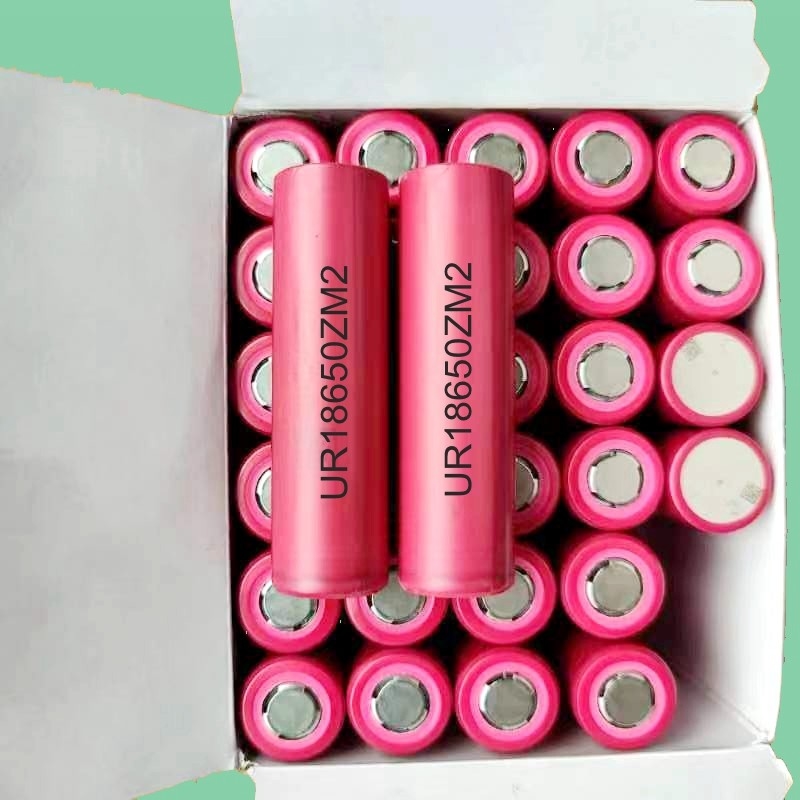

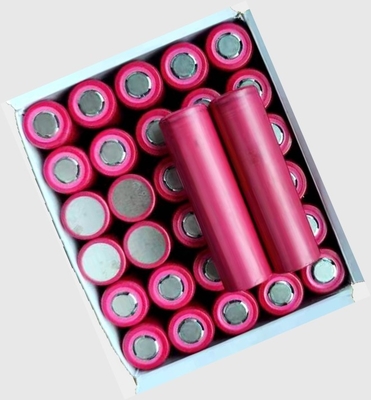

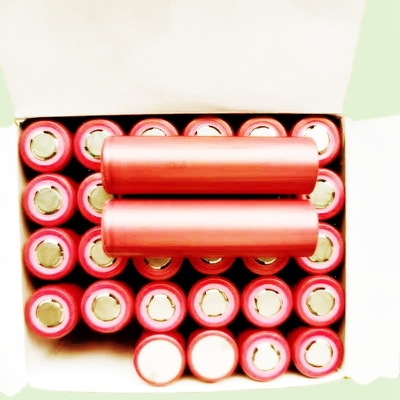

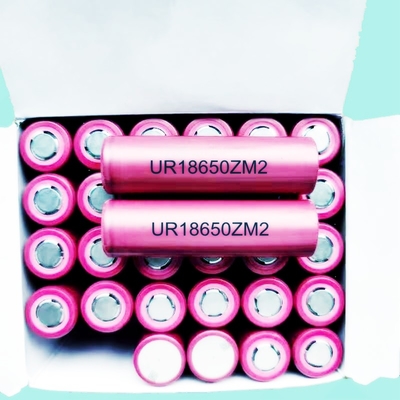

3.7V 2550mAh 18650 Lithium Ion Rechargeable Batteries Sanyo UR18650ZM2
1_180503_UR18650ZM2 Tentative Specification.pdf
UR18650ZM2 Data Sheet (Tentative)
Automotive &a; Industrial Systems Coany of Panasonic Group Rechargeable Battery Business Division, SANYO Electric Co., Ltd.
| Item | Specifications | Notes | ||
| Rated Capacity | 2420mAh | 0.49A(0.2C) discharge at 20℃ | ||
|
Capacity |
Minimum | 2470mAh | 0.49A(0.2C) discharge at 25℃ | |
| Typical | 2550mAh |
Reference only 0.49A(0.2C) discharge at 25℃ |
||
| Nominal Voltage | 3.6V | 0.49A(0.2C) discharge | ||
| Discharge End Voltage | 2.5V | |||
|
Charging Current (Std.) |
1.24A(0.5C) | 10～+45℃ | ||
| 0.62A(0.25C) | 0～+10℃ | |||
| Charging Voltage | 4.20±0.03V | |||
| Charging Cut Current | 49mA(1/50C) | |||
| Continuous Discharge Current (Max.) | 8.0A | 0～+40℃ | ||
| Internal Resistance | less than 40mΩ | AC iedance 1 kHz | ||
| Weight | less than 46.4g | |||
| Operating Teerature | Charge | 0～+45℃ | ||
| Discharge | -20～+60℃ | |||
|
Storage Conditions (Shipped Charge) SOC30% |
Less than 1 month | -20～+50℃ |
Recoverable Capacity 80% |
|
| Less than 3 months | -20～+40℃ | |||
| Less than 1 year | ||||
