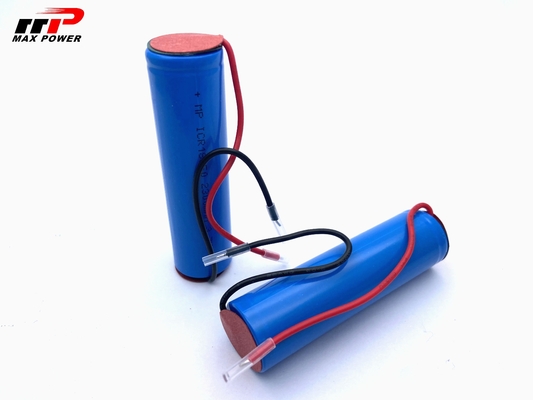

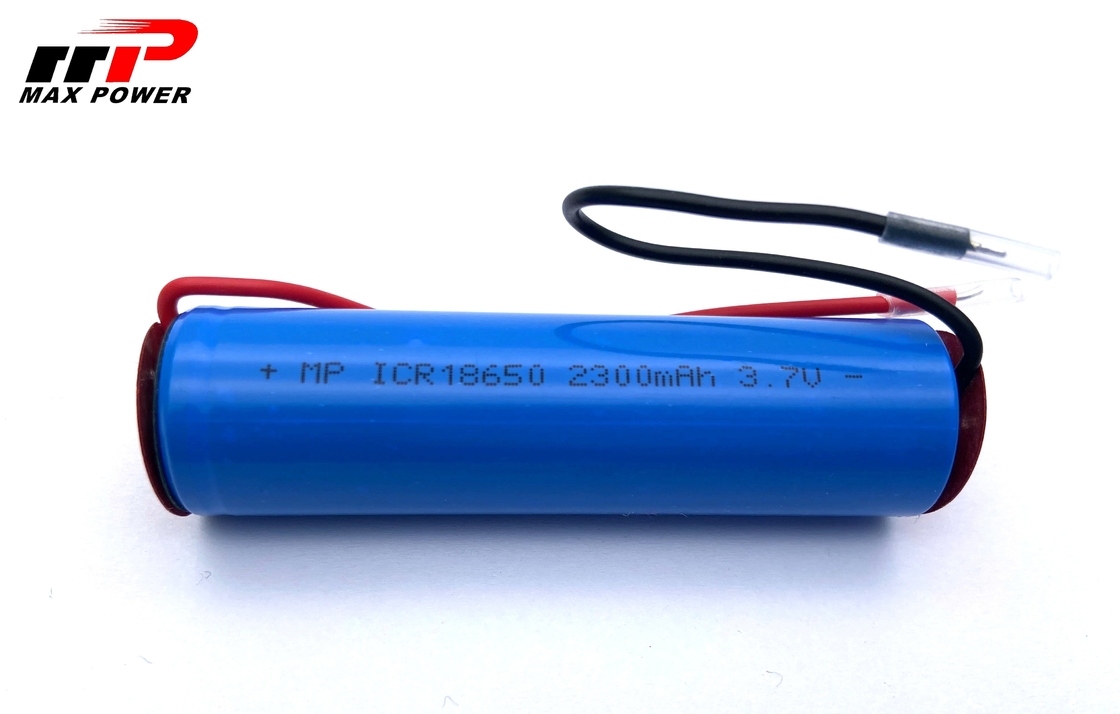

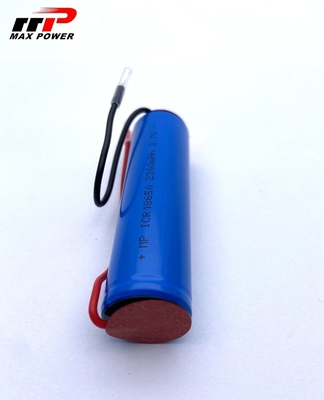

2300mAh 18650 3.7V Lithium Ion Rechargeable Batteries High Temperature Resistance
2300mAh 18650 3.7V Lithium Ion Rechargeable Batteries High Temperature Resistance
Basic Properties
Place of Origin:
China
Brand Name:
MaxPower/OEM/China TOP brand
Certification:
CE UL CB UN38.3 MSDS IEC ENC BIS
Model Number:
18650 2300mAh
Trading Properties
Minimum Order Quantity:
1000PKS
Price:
Negotiation
Product Summary
2300mAh 18650 3.7V Lithium Ion Rechargeable Batteries high teerature cell 18650 2300mAh 3.7V Rechargeable cylindrical Lithium Ion Batteries 3.7V CE BIS IEC2133 CB UL Lithium Ion Battery 18650 2300mAh 3.7V (series models are as below) Normal type Li-ion Cell or High teerature with customer design ...
Product Custom Attributes
Highlight
3.7V Lithium Ion Rechargeable Batteries
,2300mAh Lithium Ion Rechargeable Batteries
,18650 Lithium Ion Rechargeable Batteries
Battery Type:
Li-ion Cell
Capacity:
2300mAh
Voltage:
3.7V
Weight:
50g
Guarantee:
One Year
Life Cycle:
1000 Cycles
Internal Resistance:
≤100 MΩ(with PTC、CID)
Size:
D18.5mm*H65.2mm
Product Description
Detailed Specifications & Features
2300mAh 18650 3.7V Lithium Ion Rechargeable Batteries high teerature cell
18650 2300mAh 3.7V Rechargeable cylindrical Lithium Ion Batteries 3.7V CE BIS IEC2133 CB UL
- Lithium Ion Battery 18650 2300mAh 3.7V (series models are as below)
- Normal type Li-ion Cell or High teerature with customer design
- MaxPower brand or OEM brand is ok
- Accept the trial order around 1K with courier door to door service
- UL CE ROSH KC IEC62133 CCC UN38.3 MSDS BIS certification is aviliable for many li-ion battery models
- Original China top brand 18650 cells for lights
- We accept the Customized battery pack and design OEM and ODM project .
Specification of the 18650 2300mAh battery:
More pics.
Application :
Aircraft, spacecraft, high-speed trains, automobiles, motorcycles, power supplies, lighting, emergency light and
electric tools ETC.
POWER CELL(high rate for power tools)
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 14500 | 14500 | 850 | 3.6 | ≤70 | 2.75 | 1.7A(2C) | above 300 | -20~60 |
| 2 | 18650 | 18650P | 2000 | 3.6 | ≤20 | 2.75 | 20.0A(10C) | above 300 | -20~60 |
| 3 | 18650T | 2000 | 3.6 | ≤40 | 2.75 | 6.6A(3C) | above 500 | -40~90 | |
| 4 | 18650P5 | 2200 | 3.6 | ≤20 | 2.75 | 11.0A(5C) | above 5300 | -20~75 | |
| 5 | 18650P8 | 2500 | 3.6 | ≤18 | 2.5 | 30A(12C) | above 250 | -20~80 | |
| 6 | 18650M6 | 2600 | 3.6 | ≤35 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 7 | 18650M7 | 2600 | 3.6 | ≤30 | 2.75 | 7.5A(3C) | above 1000 | -20~60 | |
| 8 | 18650P9 | 2900 | 3.6 | ≤40 | 2.5 | 8.7A(3C) | above 1000 | -20~60 | |
| 9 | 18650M9 | 3200 | 3.6 | ≤40 | 2.5 | 9.3A(3C) | above 1000 | -20~60 | |
| 10 | 21700 | 21700F2E | 5000 | 3.62 | ≤25 | 2.5 | 14.4A(3C) | above 1000 |
-20~60 |
Energy Cell:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | Iedance(mΩ) | cut off voltage(V) | Max.Continuous Discharge Current | Cycle life | Operating Teerature |
| 1 | 18650 | 18650F56 | 2200 | 3.7 | ≤60 | 3 | 2.2A(1C) | above 300 | -20~60 |
| 2 | 18650R8 | 2600 | 3.7 | ≤60 | 3 | 2.6A(1C) | above 300 | -20~60 | |
| 3 | 18650F30 | 3000 | 3.7 | ≤60 | 3 | 4.5A(1.5C) | above 300 | -20~50 | |
| 4 | 18650L9 | 3350 | 3.6 | ≤60 | 2.5 | 4.8A(1.5C) | above 300 | -20~50 | |
| 5 | 21700 | 21700F2 | 5000 | 3.62 | ≤40 | 2.5 | 7.5A(1.5C) | above 300 | -20~50 |
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact JACKIE freely, wish 13years experience in battery area can help you out
in your project.
