| Place of Origin: | JAPAN |
| Brand Name: | PANASONIC |
| Certification: | PSE, KC, CB, UL |
| Model Number: | NCR18650GA |
| Minimum Order Quantity: | 1000PCS/ORDER |
|---|---|
| Price: | negotiate |
| Packaging Details: | 180pcs/pallet/ctn |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500000pcs/day |
| Material: | Li-ion | Color: | RED TUBE |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 3400mAh |
| Cycle Life: | 1000times | Size: | D18mm*H65mm |
| Weight: | 49.5g | Maxdischarge: | 10AH |
100% Original PANASONIC NCR18650GA 3.7V 3400mAh Rechargeable Li-ion Battery for Digital products, Medical equipment,Power supply/storage, Portable instrument, Light, Portable printer, Industrial intruments and so on...
Feature:
1. High capacity, same tecnical process by auto machine, same voltage and low inner resistance.
Very good performance to do industial pack.
2. High energy density and longer working time.
3. Light weight with small size. D18mm*H65mm
4. No memory effect, good discharge ability and high load and resist high teerature
6. Pollution free for environmental protection
7. 100% original Japan Panasonic li-ion rechargeable battery, 1year quality insurance.
8. Good anti-explosion protection and circuit protection inside.
Specification:
| Models: | Panasonic 18650 Original NCR18650GA cell |
| NCR18650GA | |
| Nominal Voltage | 3.7V |
| Nominal Capacity | 3500mAh |
| Inner resistance: | <25mΩ |
| Cell net weight | 49.5g |
| Constant Current: | 1.5 A |
| Charging Time Std. | 4.5 h |
| Max. continuous discharge | 10A |
| Instantaneous discharge current | 20A |
| Battery characteristics: | All iorted batteries are perfectly matched, and the voltage, internal resistance, capacity and other parameters of all batteries are consistent. The charging current can last for 1.675A (aeres) |
| Application | e-cigarettes, bicycles, electric motorcycles, scooters, balance bikes, drones, aircraft models, electric tools, communication, medical, aircraft, ships, aerospace technology, military, transportation equipment, security equipment, energy storage, solar energy, wind energy, thermal energy and other equipment are suitable, especially for the use of high current discharge equipment and high-capacity equipment! |
| Charging and discharging standards: | 1000 times or more, charging cut-off voltage 4.2V, discharging cut-off voltage 2.5V |
| Packaging standard: | 180PCS/box |

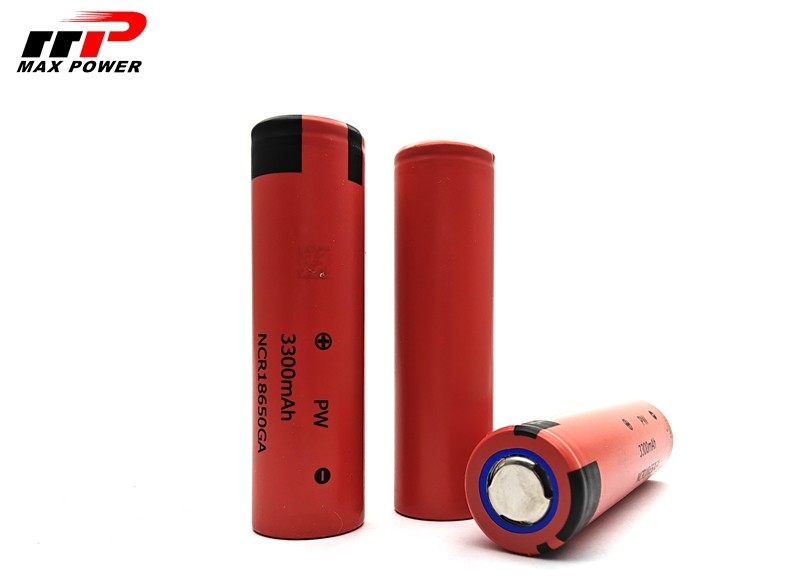

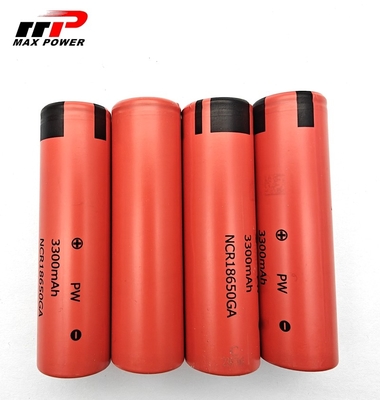

More pic of the NRC18650GA.
Related iort cell list:
| BRAND | size/capacity/rate | Colors | Rate |
| 18650系列 | PVC tube | continue dicharge | |
| SAMSUNG | 18650-22PM 10A/5C | purple | mid-rate cell |
| 18650-26JM 2C | pink purple | capacity cell | |
| 18650-26HM 2C | pink purple | capacity cell | |
| 18650-29ET 10A/3.5C | blue | mid-rate cell | |
| 18650-35ET 10A/3C | purple | mid-rate cell | |
| 18650-25RM 20A/8C | green | high rate cell | |
| 18650-30Q 15A | purple | high rate cell | |
| MP | B4L-2600mAh | light grey | capacity cell |
| MF1-2200mAh 10A/5C | purple | mid-rate cell | |
| F1L-3350mAh | purple | capacity cell | |
| M26-2600mAh 10A/3.9C | purple | mid-rate cell | |
| MG1-2600mAh 10A/3.4C | dark red | mid-rate cell | |
| MH1-3200mAh 10A/3C | blue | mid-rate cell | |
| MJ1-3500mAh 10A/3C | green | mid-rate cell | |
| HB3-1500mAh 22A/14C | grey | high rate cell | |
| SANYO | 16650ZTA-2500mAh | purple | capacity cell |
| 18650AA-2200mAh | red | mid-rate cell | |
| 18650NSX-2600mAh 20A/8C | red | high rate cell | |
| 18650ZY-2600mAh | red | capacity cell | |
| 18650ZTA-3000mAh | red | capacity cell | |
| 18650BF-3400mAh | red | capacity cell | |
| 18650GA-3500mAh | red | mid-rate cell | |
| PANASONIC | 18650PF-2900mAh 10A | green | mid-rate cell |
| 18650BD-3200mAh-8A | grey | mid-rate cell | |
| 18650BD-3200mAh-8A | grey | mid-rate cell | |
| 18650BM-3200mAh-3.87A | green | capacity cell | |
| 18500A-2030mAh | green | mid-rate cell | |
| 18650B-3400mAh 4.87A | green | capacity cell | |
| SONY | VC3-1900mAh 18A/10C | green | high rate cell |
| 18650VT3-1600mAh 20A/12.5C | green | high rate cell | |
| Bostoon | Bostoon 5300 | green | mid-rate cell |
Packing Info.
Color box /Blister box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 18pcs/blister/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Garrantee:
Panasonic coany garrantee for 1 year.
