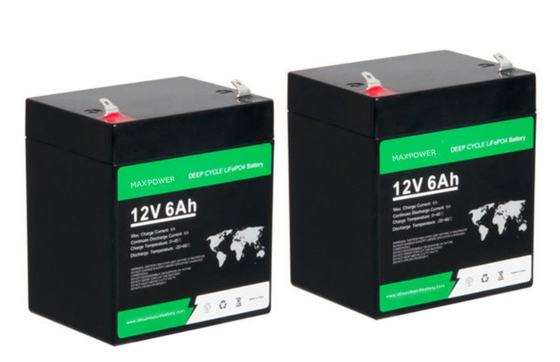

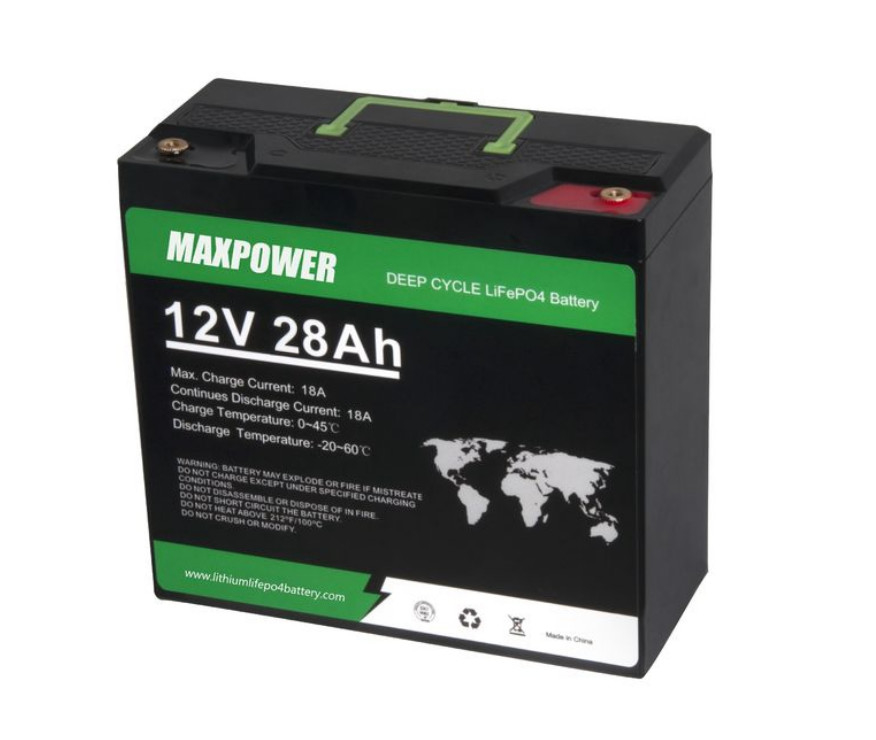

LiFePo4 BMS lithium Battery pack 12V 12.8V 24V 6Ah 7 ah 9ah 12ah 14ah 28ah 30ah
lifepo4 lithium ion battery pack .
Lead acid replacement battery superior safety longer cycle life
supports series connection with buit in BMS management system and balance function
the life span more than 10 years the cycle life more than 3000 cycles
Maintenance free and pollution free latest lithium lifepo4 battery technology
MSDS UN38.3 IEC62133 CB full battery delivery and export documents
100% in factory testing and OQC report COC certificate available
| Nominal Voltage |
12.8V |
| Nominal Capacity |
30Ah@0.2C |
| Energy |
384Wh |
| Internal Resistance |
＜55mΩ |
| Cycle Life |
3000 Cycles @0.2C Charging/Discharging,Until 70% Capacity |
| Self Discharge |
＜3.5% per month at 25℃ |
| Max.Charging Voltage |
14.0-14.6V |
| Charging Mode |
At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A,and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C5A |
| Charging Current |
6A |
| Max.Charging Current |
15A |
| Discharging Current |
6A |
| Max.Continuous Current |
30A |
| Max.Pulse Current |
60A(＜3S) |
| Discharging Cut-Off Voltage |
10 |
| Charge Temperature |
0℃-45℃ @60±25% Relative Humidity |
| Discharge Temperature |
-20℃-60℃ @60±25% Relative Humidity |
| Storge Temperature |
0℃-45℃ @60±25% Relative Humidity |
| Water Dust Resistance |
IP55 |
| Cell&Format |
IFR32700 N60,4S5P |
| Casing |
Plastic |
| Dimension(L*W*H*Th) |
165*175*125*125mm |
| Weight |
Approx. 3.9kg |
| Terminal |
M5 |
The 12V LIFEPO4 30AH Battery Pack Dimension :
The 12.8V lifepo4 battery lithium battery pack with smart BMS
Over charge protection
overcurrent protection
short circuit protection
temperature protection
Good Heat dissipation effect
The customized communication ,bluetooth connection
Data visualization are available
Contact our sales team directly for the 12v battery quotation and data sheet directly .
Email : Lucy@maxpowersz.com
Whatsapp:0086-13714669620
12.8V lifepo4 battery performance curve :
12V lifepo4 different DOD cycle life curve
lifepo4 battery open circuit voltage vs SOC%
12V lithium lifepo4 battery charge and discharge performance curve .
12.8V lifepo4 battery pack application :
Lithium batteries offer advantages such as environmental friendliness, high efficiency, and long lifespan,
making them ideal for green energy products. They are used in various applications including consumer electronics,
electric vehicles, and energy storage systems. The expanding market for lithium-ion batteries is driven by
industrial automation, civil convenience, and the internet of things.
They are also widely used in the yacht,marine,RV, military field for outdoor power supply, unmanned devices,
and high-energy weapon power supply.
lifepo4 battery 12V package and delivery info.
More 12V 24V 48V 72V lifepo4 battery pack models available
| Model |
Nominal Voltage(V) |
Capacity(Ah) |
Dimension(mm) |
Gross Weight kgs |
| Length |
Width |
Height |
| 12V(12.8V)Deep Cycle LiFePO4 battery |

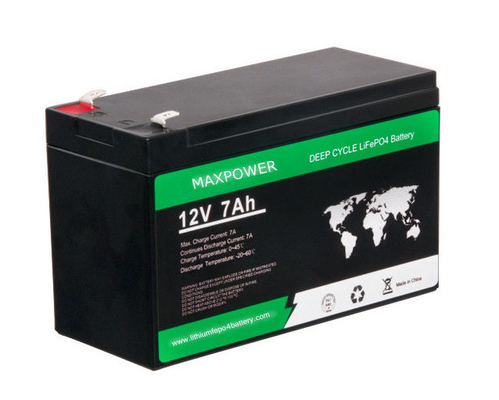

| LFP12V7.0 |
12.8 |
7 |
151 |
65 |
95 |
0.85 |

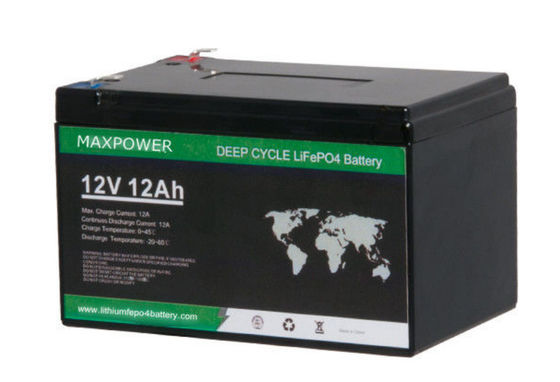

| LFP12V12 |
12.8 |
12 |
151 |
98.5 |
98.5 |
1.8 |
| LFP12V20 |
12.8 |
20 |
181 |
76 |
167 |
2.55 |
| LFP12V30 |
12.8 |
30 |
197 |
165 |
169 |
4.6 |
| LFP12V40 |
12.8 |
40 |
197 |
165 |
169 |
5.1 |
| LFP12V50 |
12.8 |
50 |
197 |
165 |
169 |
6.15 |
| LFP12V60 |
12.8 |
60 |
229 |
138 |
208 |
9.3 |
| LFP12V75 |
12.8 |
75 |
260 |
170 |
220 |
9.8 |
| LFP12V80 |
12.8 |
80 |
260 |
170 |
220 |
10 |
| LFP12V100 |
12.8 |
100 |
330 |
171 |
215 |
11.8 |
| LFP12V120 |
12.8 |
120 |
406 |
173 |
236 |
14.3 |
| LFP12V150 |
12.8 |
150 |
532 |
207 |
220 |
17.3 |
| LFP12V200 |
12.8 |
200 |
520 |
269 |
220 |
23.8 |
| LFP12V250 |
12.8 |
250 |
520 |
269 |
220 |
28.8 |
| LFP12V300 |
12.8 |
300 |
520 |
269 |
220 |
33.8 |
| LFP12V400 |
12.8 |
400 |
520 |
269 |
220 |
42.8 |
| 24V(25.6V)Deep Cycle LiFePO4 battery |
| LFP24V50 |
25.6 |
50 |
330 |
171 |
215 |
16.3 |
| LFP24V60 |
25.6 |
60 |
330 |
172 |
215 |
14.3 |
| LFP24V80 |
25.6 |
80 |
483 |
170 |
240 |
16.3 |
| LFP24V100 |
25.6 |
100 |
522 |
240 |
218 |
23.8 |
| LFP24V120 |
25.6 |
120 |
532 |
207 |
215 |
25.3 |
| LFP24V150 |
25.6 |
150 |
522 |
240 |
218 |
32.3 |
| LFP24V160 |
25.6 |
160 |
640 |
245 |
220 |
33.3 |
| LFP24V200 |
25.6 |
200 |
640 |
245 |
220 |
35.3 |
Contact our sales director Lucy as below to get immediate reply for the lithium batteries.
