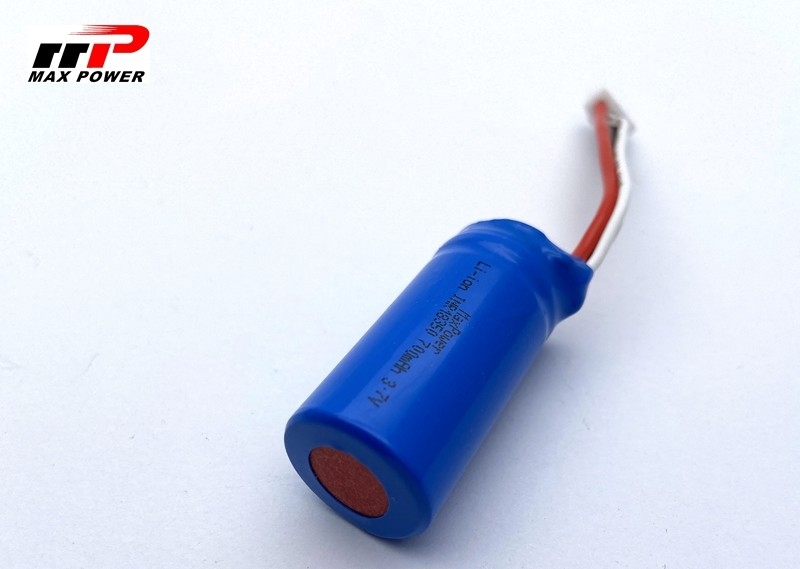

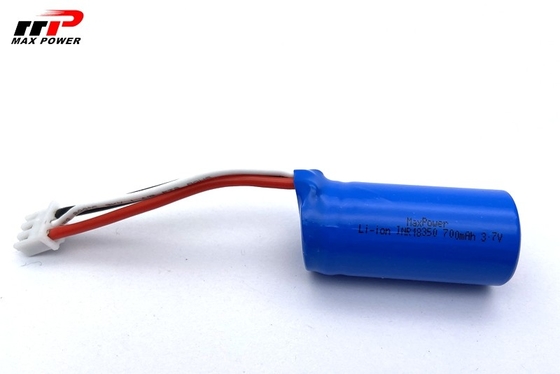

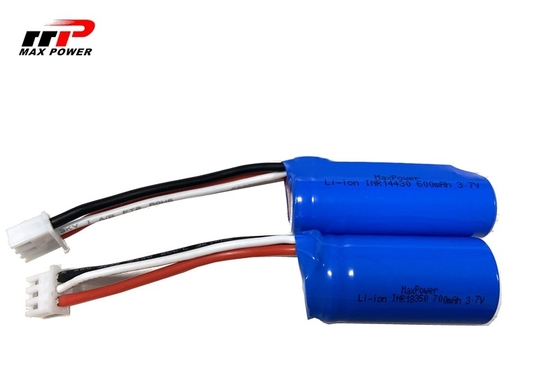

18350 3.7v 700mAh 10C High power discharge Rechargeable Lithium Ion Battery
With UL KC CB PSE
Feature:
- High capacity, advanced tecnical process producing by auto machine, same voltage and low inner resistance.
- Very good performance to do industial pack.
- High energy density and longer working time.
- Light weight with small size. D18mm*H35mm
- No memory effect, good discharge ability and high load and resist high teerature
- Pollution free for environmental protection
- Good anti-explosion protection and circuit protection inside.
- With UL, CE, KC,CB, PSE certification.
IMR18350HP draw info.:
Specification:
| NO. |
Item |
Specifications |
| 1 |
Typical Capacity |
700mAh @ 0.2C Discharge |
| Minimum capacity |
680mAh@ 0.2C Discharge |
| 2 |
Nominal voltage |
3.7V |
| 3 |
Standard Charge |
CC/CV,0.2C5A, 4.20V |
| 4 |
Standard Discharge |
CC,0.2C5A, 3.00V |
| 5 |
End-of-charge Voltage |
4.20±0.05V |
| 6 |
End-of-charge Current |
0.02C5A (At CV mode) |
| 7 |
End-of-discharge Voltage |
3.00 V |
| 8 |
Charging Time |
8.0hours(standard charge) |
| 9 |
Quick Charge Current |
700mA (1.0C5 rate) |
| 10 |
Quick Discharge Current |
7000mA (10.0C5 rate) |
| 11 |
Max continuous Discharge Current |
6000mA (15.0C5 rate) |
| 12 |
Initial impedence |
70mΩ |
| 13 |
Weight |
Approx(约):26g
|
| Charge teerature |
Discharge teerature |
| 25℃ |
-10℃ |
0℃ |
15℃ |
25℃ |
40℃ |
| Relative Capacity |
50% |
80% |
90% |
100% |
100% |
Application:
1. Electronic cigarettes:
18350 lithium batteries have become an ideal power source choice for electronic cigarettes due to their high energy density, stable voltage output, and high current discharge capacity. Product certifications such as ROHS, CE, UN38.3 ensure the safety and environmental friendliness of batteries.
2.Mining lamps and safety alarms:
In mining lamps, safety alarms, and other equipment, the 18350 lithium battery can provide stable and reliable energy support.
Long cycle service life, even after 500 consecutive charges and discharges, the battery capacity is still not less than 85% of the rated capacity.
3.In medical devices, the stability and safety of batteries are crucial. 18350 lithium batteries can meet these requirements and provide long-lasting power for medical devices.
4.Other electronic digital products:
In addition to the above applications, 18350 lithium batteries are also widely used in various electronic and digital products such as mobile power supplies, security equipment, electric tools, instruments and meters.
5.Applications in extreme environments:
Some special models of 18350 lithium batteries, have excellent temperature resistance and can operate normally in environments ranging from -20 ℃ to 60 ℃, making it an ideal choice for portable devices in extreme environments.
Special customization requirements:
Due to its standardized size and easy customization characteristics, 18350 lithium batteries are also commonly used in some customized devices that require special sizes and capacities.The 3.7V high current discharge lithium-ion battery of 18350 has a wide range of applications in various electronic digital products, such as electronic cigarettes, mining lamps, safety alarms, medical devices, etc., due to its high energy density, stable voltage output, and high current discharge capacity. Meanwhile, its excellent temperature resistance and customizability also enable it to meet special environments and customization needs.
NOTE:
1.1 Standard Charge
Unless otherwise specified, “Standard Charge” shall consist of charging at constant current of 1,075mA.
The cell shall then be charged at constant voltage of 4.2V while tapering the charge current. Charging
shall be terminated when the charging current has tapered to 50mA. For test purposes, charging shall be
performed at 25ºC ± 2ºC.
1.2 Standard Discharge
“Standard Discharge” shall consist of discharging at a constant current of 430mA to 2.75V. Discharging is
to be performed at 25 ºC ± 2 ºC unless otherwise noted (such as capacity versus teerature).
More models of high drain high discharge high power battery cell list:
| Discharge rate |
MODEL |
CAPACITY(mAh) |
VOLTAGE(V) |
SIZE(MM) |
| 10-20C |
26650HP |
3400 |
3.7 |
26.0 X 65.2 |
| 22650HP |
2000 |
3.7 |
22.0 X 65.2 |
| 22430HP |
1300 |
3.7 |
22.0 X 65.2 |
| 18650HP |
1500 |
3.7 |
18.0 X 65.2 |
| 18650HP |
1300 |
3.7 |
18.0 X 65.2 |
| 18500HP |
1100 |
3.7 |
18.0 X 50.2 |
| 18350HP |
600 |
3.7 |
18.0 X 35.0 |
| 18350HP |
700 |
3.7 |
18.0 X 35.0 |
| 16500HP |
800 |
3.7 |
16.8 X 50.2 |
| 16340HP |
600 |
3.7 |
16.8 X 34.0 |
| 17500HP |
850 |
3.7 |
17.0*50.0 |
| 17335HP |
700 |
3.7 |
17.0*33.5 |
| 14500HP |
650 |
3.7 |
13.9 X 50.2 |
Packing Info.
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 100pcs/box,4boxes/ctn
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Battery Delivery DG Code: UN3480 IMO Class : 9
Garrantee:
Our coany garrantee for 1 year.
For more info. Please feel free to contact me in any way below, hope 13years of battery area working experance can help you out.
