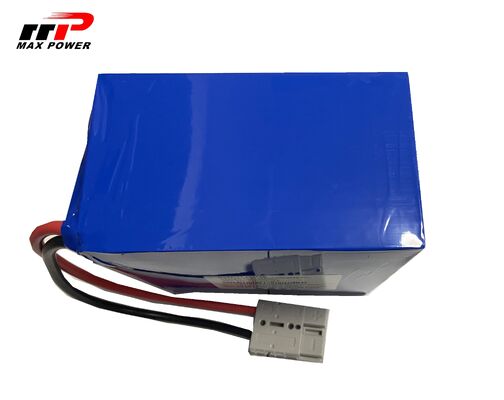

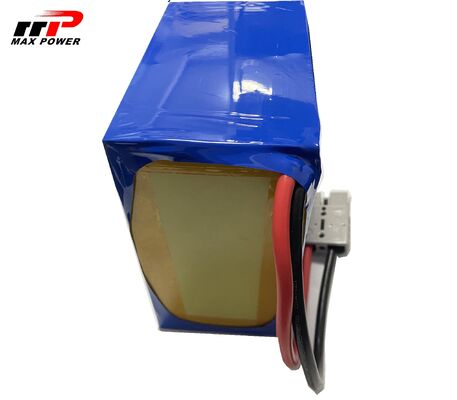

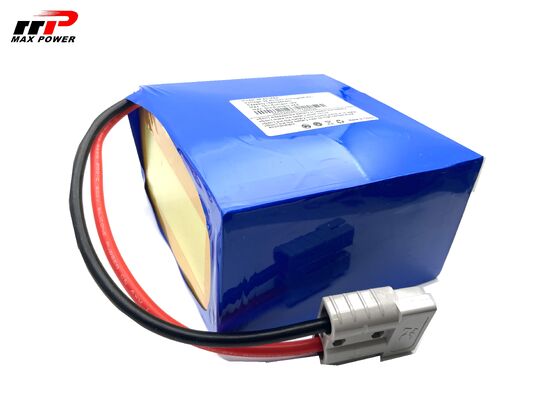

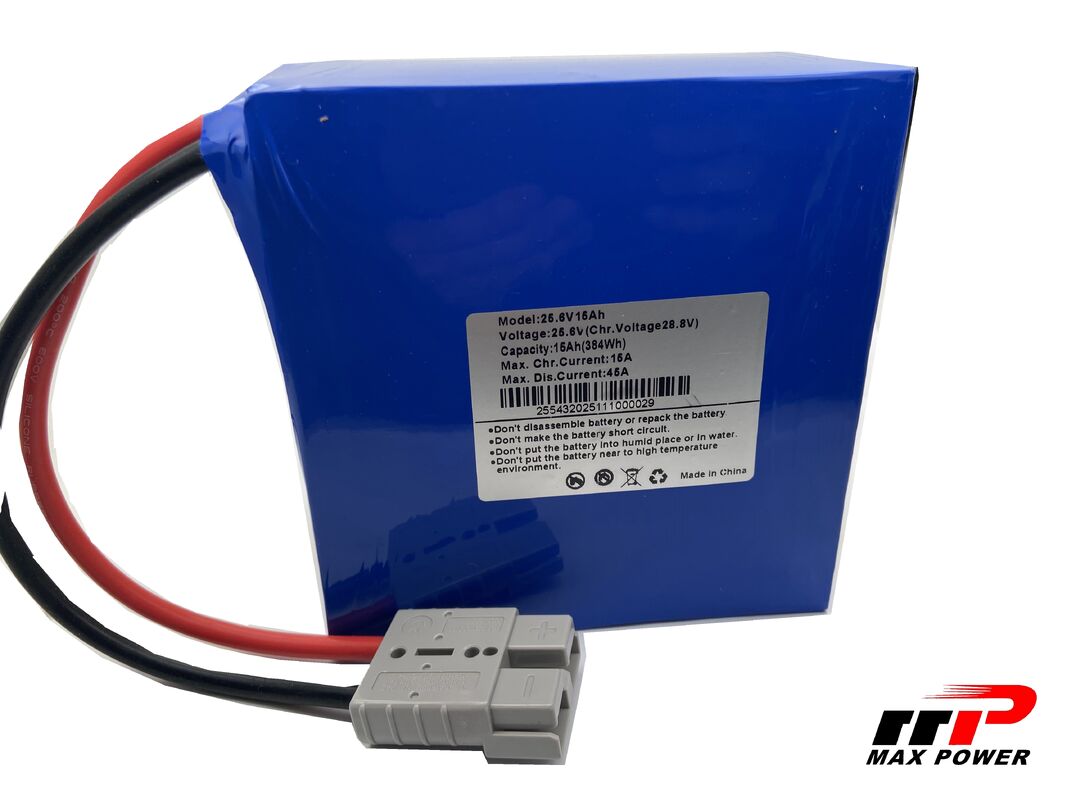

25.6V 15Ah 384Wh rechargeable Lithium LiFePO4 Battery pack for UPS
25.6V 15Ah 384Wh rechargeable Lithium LiFePO4 Battery pack for UPS
Basic Properties
Place of Origin:
MADE IN CHINA
Brand Name:
MP/OEM
Certification:
UL CB KC PSE
Model Number:
25.6V 50Ah-0001
Trading Properties
Minimum Order Quantity:
100pcs
Price:
negociatable
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
50000pcs/day
Product Summary
25.6V 15Ah 384Wh Lithium LiFePO4 Battery Long Cycle Life For UPS LiFePo4 Battery 384Wh Lithium LiFePO4 Battery Long Cycle Life For UPS WITH UL CE IEC CB MSDS CERTIFICATION Long cycle life design with more than 5 years High discharge rate with stable performance Accept cutomized lifepo4 battery pack ...
Product Custom Attributes
Highlight
25.6V LiFePO4 battery for UPS
,15Ah rechargeable lithium battery
,384Wh LiFePO4 battery pack
Material:
Lithium LiFEPO4
Capacity:
15Ah
Normal Voltage:
25.6V
SIZE:
Width 84.1±1mm T Hight 146±2mm H Length（total） 139.2±1mm
CYCLE LIFE:
2000
N.W:
2700G
Internal Iedance:
Less Than 50mΩ
Self Discharge Rate:
≤ 3 ﹪ Month
Product Description
Detailed Specifications & Features
25.6V 15Ah 384Wh Lithium LiFePO4 Battery Long Cycle Life For UPS
LiFePo4 Battery 384Wh Lithium LiFePO4 Battery Long Cycle Life For UPS WITH UL CE IEC CB MSDS CERTIFICATION
- Long cycle life design with more than 5 years
- High discharge rate with stable performance
- Accept cutomized lifepo4 battery pack with oem BMS management system
- MSDS UN38.3 IEC CB certificate can be available for safety delivery
- Air delviery sea deliver and door to door courier service available
50Ah, 25.6V LIFePo4 Battery pack Specification:
|
Index. |
Items |
Parameter |
| 1 | Charging Method | CC-CV |
| 2 | Charging Voltage | 28.8±0.2V |
| 3 | Over Charging Protect | 3.75±0.025V |
| 4 | Standard Charging Current | 3 A (0.2C) |
| 5 | Max. Charging Current | 15A |
| 6 | Cut-off Charging Current | 0.3A (0.02C) |
| 7 | Standard Discharging Current | 3 A (0.2C) |
| 8 | Max. Discharging Current | 45A |
| 9 | Max Peak Discharging Current | 200A(1S) |
| 10 | Discharging cut-off Voltage | 20V |
| 11 | Over Discharging Protect | 2.2±0.08V |
| 12 | Over Discharge Current | 120±30A |
| 13 | OCC Threshold | 50±10A |
| 14 | Cell Balance current | 60±10mA |
| 15 | Internal Resistance | <50mOhm |
| 16 | Standard Charge Teerature | 0~45℃ |
| 17 | Standard Discharge Teerature | -20~55℃ |
| 18 | Storage Humidity | 65%RH not condensed (无凝结) |
| 19 | Storage Teerature存储温度 |
less than 1 month -20 ~ +50℃ less than 3 months -20 ~ + 45℃ less than 1 year -20 ~ + 20℃ |
With 50A Anderson / Gray / UL3512 / 8AWG / Red positive pole, Black negative pole. Packing like following:
With one year warranty.
The battery pack can be customised like following:
LiFePO4 15Ah Battery Application :
The similar mode we have 80AH,105AH, for more please contact me freely. Wish my 12year experience in battery area can help you out.
