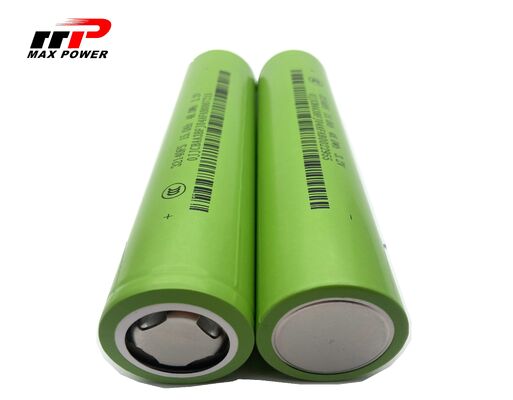

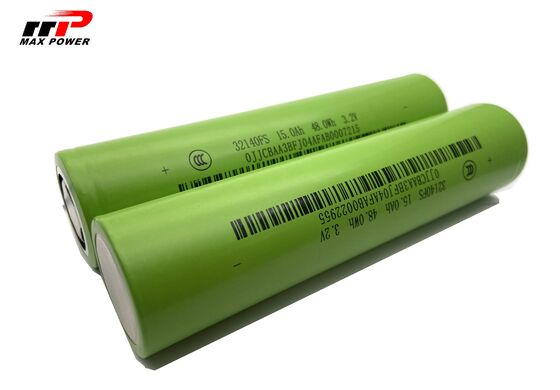

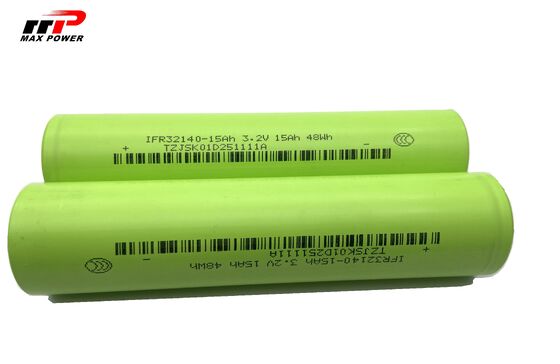

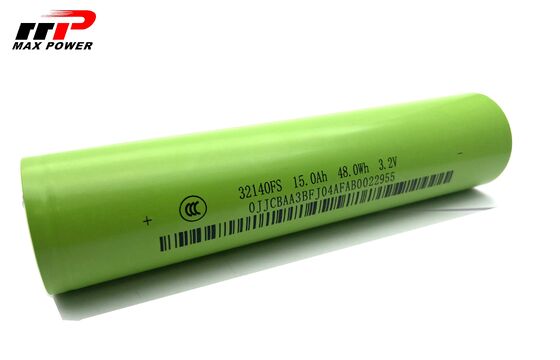

3214015Ah 48W 3.2 V lithium lifepo4 Battery cell

LFP 32140 33140 32135 32138 15Ah 3.2V 15Ah 48W Battery Cell

1. Original hig quality lifepo4 battery cell with CCC certificate

2. Extra cycle life with more than 3000 cycles

3. each cell has the barcode to scan and see the production process and cell info.

4. Support the customized battery pack with BMS

5. high quality battery performance support DIY power

6. Full certificate MSDS un38.3 DG license support overseas delivery

48wh lithium rechargeable battery 3.2V 15Ah 32140 lifepo4 specification:

CELL RATE DISCHARGE:

CYCLE LIFE:

HIGH-LOW TEMPERATURE DISCHARGE PERFORMANCE:

SHORT CIRCUIT TEST:

An oven is to be raised to the temperature of 55℃ and remain for 10min at that temp. A cell is to be placed into the oven and remain for 30min ~40min.Then the Cell is to be short-circuited by connecting the positive and negative terminals of the cell with copper wire having a maximum resistance load of 50mΩ. Monitor its temperature while testing, the cell is to be discharged until the cell case temperature has returned to be 10℃ less then peak temperature. Ambient Temp: 55±5℃ Pass criteria: 1.No fire, no explosion 2.Max. temp.< 150℃.

OVERCHARGE TEST:

A cell is charged in accordance with Standard Charge, then charged the cell up to 5.4V at CC of 10A until
that last 7h or the voltage is no more increased, then observed the cell for 1h. .
Pass criteria: No fire, no explosion.

Meanwhile we do force discharge test, crust test,impact test, heating test, viaberation test, drop test, temperature test,low pressure test ..to ensure the perfect quality of the cell. If you have any project need to use high end quality, please let us know.

Q&R:

1. Are you Manufacture or trader ?

1) We are direct factory

2) All battery goods are manufacturing by ourselves.

3) Provide you “customized products” along with the best price

2. How is your lifepo4 battery quality ?

1)100% tested in factory .OQC report offered .

2) COC and quality testing data shared to you before delivery

3. How do you ship the battery ?

1)Carton box or custom packaging.
2)Sale order: by Express ( DHL / UPS / FEDEX / TNT ,by Air)
3)Bulk order: by sea cargo, air freight, Express (DHL/UPS/FedEx/TNT)
Courier Door to Door service.

4. What is your battery guarantee ?

1) We keep one year Warranty Service with warranty card

2) All our products support after service for one year .

We can support battery DIY with screw and strips ,BMS and case etc.

Contact us for more info. directly .
