| Place of Origin: | CHINA |
| Brand Name: | MAXPOWER/OEM BRAND |
| Certification: | CE UL |
| Model Number: | 25.6V 6.8Ah |
| Minimum Order Quantity: | 100 |
|---|---|
| Packaging Details: | with polyloon package+master cartoon box |
| Delivery Time: | 10 WORKING DAYS |
| Material: | LIFEPO4 | Voltage: | 25.6V |
|---|---|---|---|
| Capacity: | 6.8Ah | Power: | 174Wh |
| Dimension(L*W*H): | 140*136*74MM |

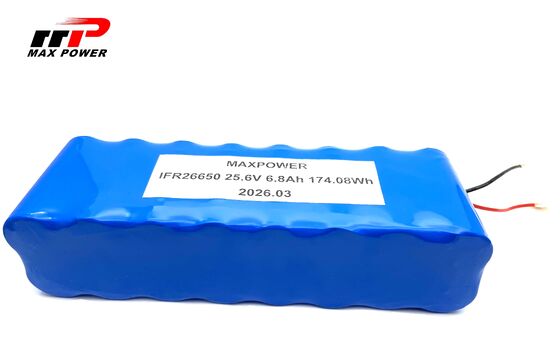

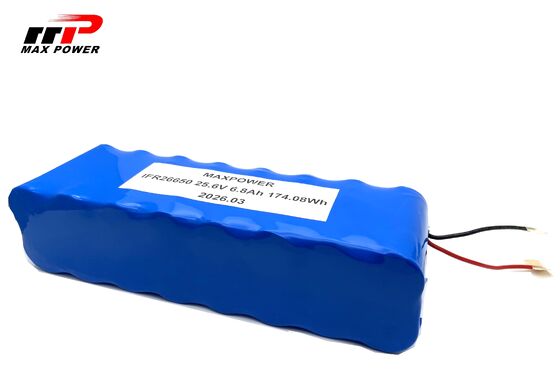

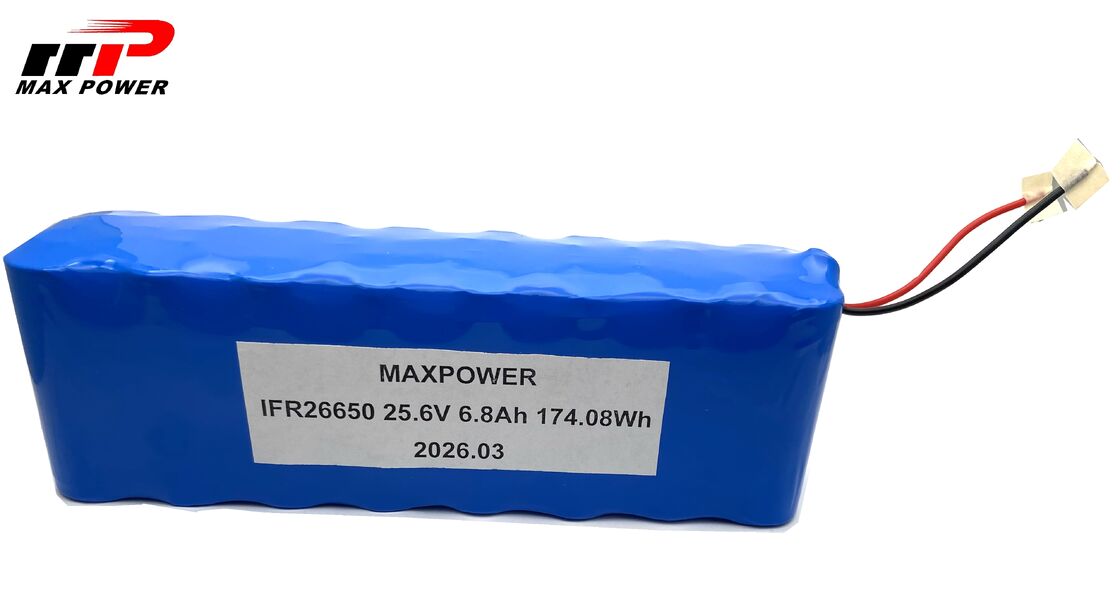

Discover the perfect balance of performance, safety, and longevity with our 8‑series, 2‑parallel (8S2P) 26650 lithium iron phosphate battery pack. Engineered for industrial and commercial applications, this 25.6V module delivers reliable power in a compact footprint.
![]()
📏 Dimensions & Configurations
Size varies by capacity and design. A typical 7.2Ah pack measures approximately 120 × 120 × 75 mm. Other common options include:
| Capacity Dimensions | (L×W×H) |
| 5.0 Ah | 115 × 75 × 140 mm |
| 6.2 Ah | 157 × 112 × 56 mm |
| 6.6 Ah | 195 × 95 × 90 mm |
| 6.8 Ah | 140 × 136 × 74 mm |
| 19.2 Ah | 135 × 197 × 172 mm |
| 25.6 Ah | 300 × 180 × 150 mm |
Custom sizes and capacities available upon request.
---
⚡ Key Performance Features
·
| Nominal Voltage: | 25.6V (fully charged: 29.2V) |
| Capacity Range: | 5Ah – 7.2Ah (standard), up to 25.6Ah for larger packs |
| High Discharge Rate: | Supports 3C or higher continuous discharge – ideal for high‑load equipment |
| Exceptional Cycle Life: | Over 2,000 cycles – outlasts lead‑acid by 5‑10× |
| Built‑in Safety: | Robust LiFePO₄ chemistry is non‑flammable, non‑explosive. Integrated BMS (Battery Management System) provides full protection against over‑charge, over‑discharge, over‑current, short‑circuit, and over‑temperature |
| Wide Temperature Range: | Discharge from -20°C to +60°C (low‑temperature versions available for -40°C) |
| Lightweight: | Weighs only 1.5–2.0 kg for standard packs – significantly lighter than equivalent lead‑acid batteries |
| Eco‑Friendly: | 100% recyclable, free of lead, cadmium, and other hazardous heavy metals |
---
🚀 Primary Application Areas
· Industrial Automation & Logistics
– AGVs (Automated Guided Vehicles)
– RGV (Rail‑Guided Vehicles)
– Industrial robots and mobile platforms
· Medical Equipment
– Uninterruptible backup power for critical devices
– Portable diagnostic and monitoring instruments
· Renewable Energy Systems
– Solar tracking controllers
– Off‑grid / hybrid solar storage
– Home and commercial energy storage cabinets
· Telecommunications & Transport
– Base station backup power
– Light electric vehicles (e‑bikes, e‑scooters, mobility scooters)
· Other High‑Demand Uses
– Heavy‑duty power tools
– Portable test & measurement instruments
– Emergency lighting and alarm systems
---
✅ Why Choose This Battery?
· Longer service life – reduce replacement costs
· Safer operation – no fire or explosion risk
· Wider operating conditions – reliable in extreme climates
· Plug‑and‑play compatibility with most 24V systems
· Customizable – we offer tailored voltages, capacities, and mechanical designs to fit your specific needs
Ready to power your next project? Contact us for datasheets, samples, and volume pricing.
![]()
