| Place of Origin: | MADE IN CHINA |
| Brand Name: | MP/OEM |
| Certification: | UL CB KC PSE |
| Model Number: | LF80 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 1pcs/box, 10pcs/ctn |
| Delivery Time: | 3-7days for samples |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000pcs/day |
| Material: | Lithium Iron Phosphate | Capacity: | 80Ah |
|---|---|---|---|
| Normal Voltage: | 3.2V | SIZE: | W Width 130.3 ±0.3mm T Thickness(30% SOC) 36.7 ±0.5mm H High（total） 170.5 ±0.5mm H1 High（subject） 165.5 ±0.5mm D Tabs Distance 67.0±1.0mm |
| CYCLE LIFE: | 2000 | N.W: | 1630G |
| Internal Impedance: | Less Than 0.5mΩ | Self Discharge Rate: | ≤ 3 ﹪ Month |
| High Light: | 12v lifepo4 battery,prismatic lifepo4 battery |
||

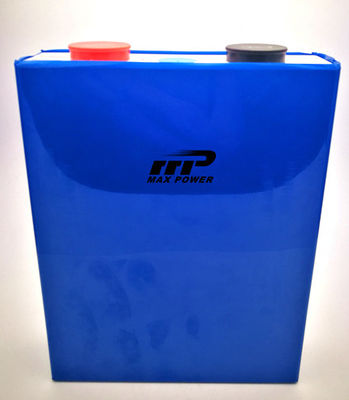

LiFePo4 Battery 3.2V 80Ah High Rate 5C FOR POWER STATION, EV CAR WITH UL CE IEC62133 CB MSDS CERTIFICATION
High discharge rate 5C design with stable performance
Long cycle life design with more than 2 years
50Ah,100Ah 3.2V cell also available
Accept cutomized lifepo4 battery pack with Seiko PCM wire and connectors
MSDS UN38.3 IEC CB certificate can be available for safety delivery
Air delviery sea deliver and door to door courier service by DG cargos are available
LF80 K 3.2V LIFePo4 Battery Cell Specification:
| NO | Item | Parameter | Remark | |
| 1 | Average capacity | 81.5 Ah@1.0C discharge | Standard charge and discharge @ @(25±2)C | |
| 2 | Minimum capacity | 80Ah@1.0C discharge | ||
| 3 | Nominal capacity | 80Ah | ||
| 4 | Nominal voltage | 3.2V | N.A. | |
| 5 | Working voltage | 2.5V~3.65V | N.A. | |
| 6 | AC impedance resistance | ≤0.5mΩ | N.A. | |
| 7 | SOC of shipment | 30%~40%SOC | N.A. | |
| 8 | Standard charge/ discharge | Charge/Discharge current | 0.5C/0.5C | (25±2)C |
| Cut off voltage of charge/discharge | 3.65V/2.5V | |||
| 9 | Max charge-current | Continuous charge | 3C | Refer to appendix B |
| Pulse charge (30s) | 5C | |||
| 10 | Charging time | Standard | 2.0h | 0.5C charge (time is reference) |
| Quick-charge | 1.0h | 1C charge (time is reference) | ||
| 10 | Max discharge current | Continuous discharge | 3C | Refer to appendix B |
| Pulse discharge (30s) | 5C | |||
| 11 | Recommend SOC window | 10%-90% SOC | N.A. | |
| 12 | Charging temperature | 0-55 C | Refer to appendix B | |
| 13 | Discharging temperature | minus 20-55 C | Refer to appendix B | |
| 14 | Storage temperature | One month | minus 20-45 C | Storage humidity<70% |
| one year | 0-35 C | |||
| 15 | Weight | 1630+/- 100g | N.A. | |
Discharge Rate of the battery:
The battery pack can be customised like following:
