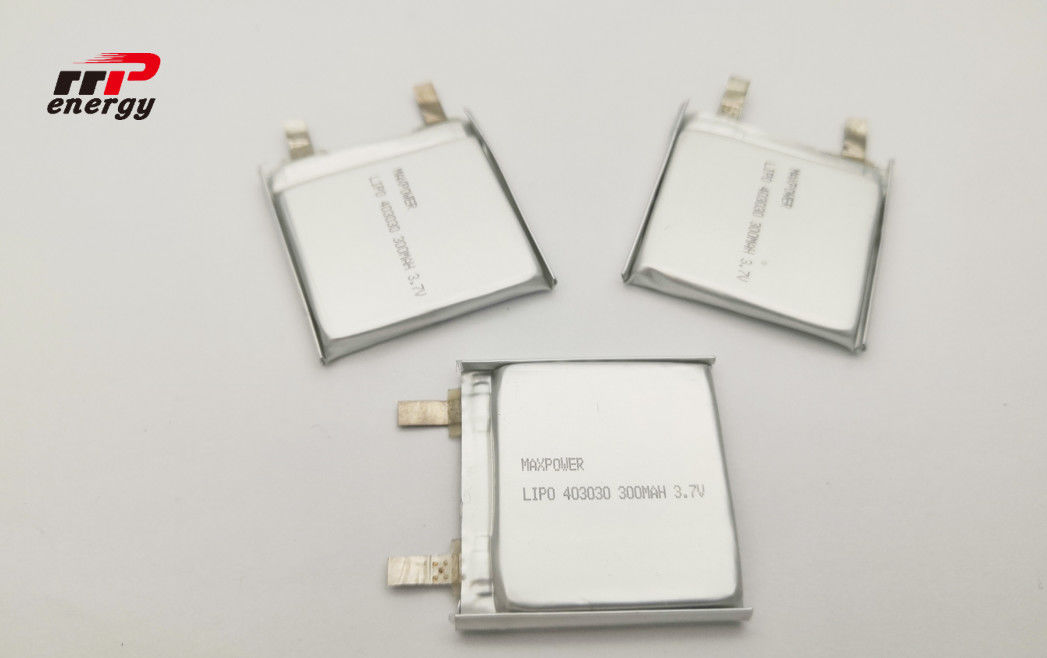

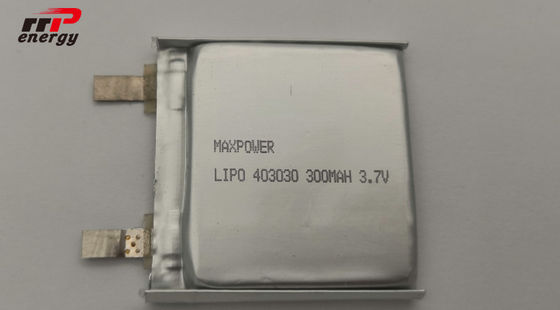

3.7V 300mAh Lithium Polymer Battery Pack IEC CB BIS KC MSDS UN38.3
3.7V 403030 300mAh Lithium Polymer Battery with long cyle life design
Lithium Polymer battery 3.7V 300mAh extra light weight
PCM and NTC ,wire and connector can be added with OEM,ODM project
Extra long cycle life more than 800 cycles with high level discharge performance
Suppurt high teerature and high discharge rate performance
MSDS,UN38.3 and DG license to support safety air,sea overseas delivery
403030 3.7V 300mAh LiPoymer battery specification :
| Lithium Polymer Battery |
rating |
Note |
| 403030 3.7V 300mAh |
| Capacity |
Typical 320mAh |
Discharge at 0.2C Ma |
| Normal 300mAh |
| Energy 1.11Wh |
| Norminal Voltage |
3.7V |
|
| AC internal resistance |
Less than 110mOhms |
|
| Discharge cut off Voltage |
3.0V |
|
| Charge voltage |
4.2V |
|
| Max Charge Voltage |
4.2V |
|
| Standard charge current |
60mA |
0.2Cma |
| Max Charge current |
300mA |
1.0C ma |
| Max discharge current |
300mA |
1.0C ma |
| Weight |
Approx. 5.98g |
|
| Operation teerature |
Charge |
0-45degree |
| |
Discharge |
-10-55degree |
| Storate teerature |
Less one month |
-10-45degree |
| |
less 6 months |
-10-35degree |
LiPolymer 300mAh 3.7V Drawing and dimension info.:
Lithium Polymer battery package and application :
RC Toy battery ,RC motors Battery , Medical devices Battery ,Vacuum cleaner battery ,
Robot Battery ,back up battery , high discharge rate battery pack , Solary system battery ,
Solar street battery , Controler battery , headset battery , Soft design battery ,industrial
battery pack.
Other similar lithium polymer battery models as below :
Capacity range : 250mAh to 600mAh
More models and capacity list ,contact MaxPower Lucy directly .
Lucy whatsApp: 0086-13714669620
Email: Lucy@maxpowersz.com
BatteryLucyXu@gmail.com
Mobile : 0086-13714669620
Skype: XuXuLucy114
| Lithium Polymer model |
Capacity (mAh) |
voltage |
fresh stock quantity(PCS) |
| 303035 |
280 |
3.7V |
218 |
| 303035 |
280 |
3.7V |
2344 |
| 303040 |
300 |
3.7V |
274 |
| 303040 |
300 |
3.7V |
5220 |
| 353035 |
300 |
3.7V |
566 |
| 333046 |
520 |
3.7V |
171 |
| 333048 |
450 |
3.7V |
754 |
| 402040 |
270 |
3.7V |
112 |
| 402040 |
280 |
3.7V |
1339 |
| 402050 |
380 |
3.7V |
119 |
| 402535 |
320 |
3.7V |
3465 |
| 402540 |
350 |
3.7V |
6216 |
| 402540 |
350 |
3.7V |
1303 |
| 403030 |
300 |
3.7V |
6416 |
| 403035 |
400 |
3.7V |
556 |
| 403048 |
600 |
3.7V |
7034 |
| 403040 |
500 |
3.7V |
703 |
| 452530 |
300 |
3.7V |
22663 |
| 452631 |
340 |
3.7V |
2074 |
| 453535 |
350 |
3.7V |
952 |
| 501943 |
390 |
3.7V |
648 |
| 502030 |
250 |
3.7V |
19037 |
| 502035 |
300 |
3.7V |
47837 |
| 502248 |
500 |
3.7V |
8481 |
| 502530 |
300 |
3.7V |
16555 |
| 502530 |
300 |
3.7V |
297 |
| 502532 |
390 |
3.7V |
11621 |
| 502540 |
500 |
3.7V |
41396 |
| 502540 |
620 |
3.7V |
323 |
| 502837 |
450 |
3.7V |
1100 |
| 532331 |
360 |
3.7V |
292 |
| 551735 |
320 |
3.7V |
7178 |
| 552225 |
250 |
3.7V |
14572 |
| 552035 |
350 |
3.7V |
6233 |
| 552548 |
700 |
3.7V |
15441 |
| 582446 |
650 |
3.7V |
1049 |
| 582526 |
350 |
3.7V |
5932 |
| 602030 |
300 |
3.7V |
1112 |
| 602030 |
300 |
3.7V |
25000 |
| 602045 |
500 |
3.7V |
21215 |
| 602060 |
700 |
3.7V |
18535 |
| 602240 |
500 |
3.7V |
469 |
| 602248 |
600 |
3.7V |
4075 |
| 602248 |
600 |
3.7V |
3041 |
| 602248 |
600 |
3.7V |
1059 |
| 602530 |
400 |
3.7V |
5144 |
| 602530 |
400 |
3.7V |
426 |
| 602535 |
500 |
3.7V |
1600 |
| 602827 |
420 |
3.7V |
3386 |
| 603030 |
500 |
3.7V |
47495 |
| 603035 |
600 |
3.7V |
1101 |
| 603040 |
700 |
3.7V |
1271 |
| 622334 |
500 |
3.7V |
10431 |
| 652035 |
420 |
3.7V |
4562 |
| 652432 |
450 |
3.7V |
350 |
| 653030 |
680 |
3.7V |
10025 |
| 672045 |
600 |
3.7V |
3425 |
| 701535 |
300 |
3.7V |
9000 |
| 701535 |
300 |
3.7V |
800 |
| 701738 |
400 |
3.7V |
2039 |
| 702025 |
300 |
3.7V |
3659 |
| 752233 |
450 |
3.7V |
11920 |
| 752530 |
520 |
3.7V |
1623 |
| 802030 |
400 |
3.7V |
4269 |
| 802035 |
500 |
3.7V |
8987 |
| 802045 |
700 |
3.7V |
346 |
| 802530 |
550 |
3.7V |
8905 |
| 962630 |
700 |
3.7V |
630 |
