550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite

550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite

  • 550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite
  • 550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite
  • 550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite
550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite
Product Details:
Place of Origin: Made in China
Brand Name: Maxpower/OEM
Certification: CB, CE, KC, ROHS, UN38.3
Model Number: 602540 550mAh
Payment & Shipping Terms:
Minimum Order Quantity: 3000pcs
Price: negociate
Packaging Details: 20pcs/blister palet, 20bllister pallet/ctn
Delivery Time: 10-30days according stock situation
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200000pcs/day
Contact Now
Detailed Product Description
Material: Lithium Polymer,pure Cobalt SIZE: 602540
Voltage: 3.7V Capacity: 550mAh
Contant Discharge Current: 2C Resistance: ≤ 110 MΩ
Weight: 17.6g Dimensions(T.W.H.): Thickness: 10.0 Mm Max, Width: 26.5 Mm Max, Length: 45.0 Mm Max
High Light:

high capacity lithium polymer battery

,

high power lipo battery

602540P 550mah 3.7V LI-POLYMER battery for medical device bluetooth pos machie With KC CB UL

  • It is high energy density lithium polymer battery pack
  • Thinner design &a; lighter weight with aluminum-plastic coosite
  • More than 500 cycles of charging &a; discharging life
  • Enhanced safety performance with Japan/Taiwan IC &a; MOS protectors
  • Easy to assemble with mounted connectors (Molex, Tyco and so on)
  • OEM &a; ODM services for special size of lithium polymer battery
  • Rigorous testing to ensure the quality of all lithium polymer batteries


1. Products info and draw.

550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite 0




2. Cell specification and safty performance.

No. Items Specifications Remark
1 Nominal Capacity 550mAh 0.2C Standard discharge
2 Minimum Capacity 550mAh
3 Nominal Voltage 3.7V Mean Operation Voltage
4 Delivery voltage 3.7~3.9V Within 10 days from Factory
5 Charge Voltage 4.2V±0.03V By standard charge method
6 Standard charging method 0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C 0.2C CC 4.2V CV charge to the current≤0.01C
7 Charge current 0.2C 110mA Standard charge, charge time:6.5h(Ref)
    1C 550mA Rapid Charge, charge time:2.5h(Ref)
8 Standard discharging method 0.2C constant current discharge to 3.0V   0.2C CC discharge to 3.0V
9 Cell Internal Iedance ≤110mΩ Internal resistance measured at AC 1KHZ after 50% charge
10 Maximum charge current 1.0C For continuous charging mod
11 Peak discharge current 2C Continuous discharge current 1C
12 Operation Teerature and relative humidity Range Charge 0~45 60±25%R.H. Charge at a very low teerature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
Discharge -20~60 60±25%R.H.
13 Storage teerature for a long time -20~25   Do not storage exceed half year. Must charge once when storage for half year. Must charge the battery which with protect circuit when storage for three months.
60±25%R.H.

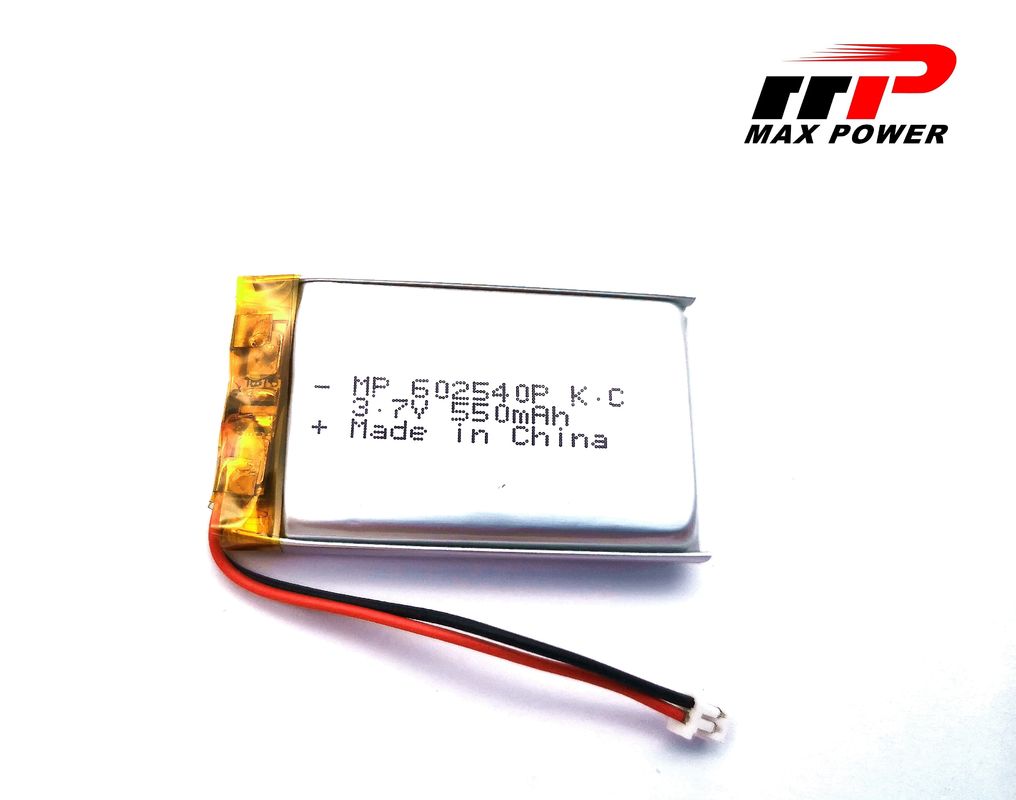

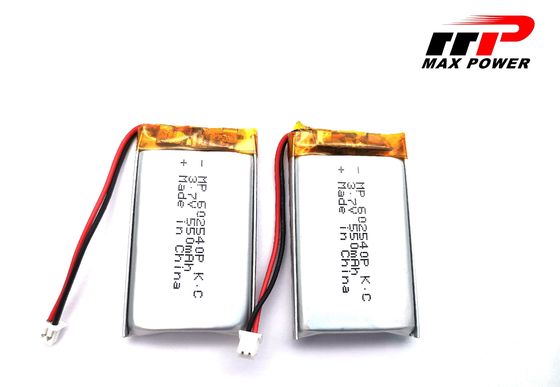

3. More PIC of 602540 battery.
550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite 1

The customized connectors we normally use:



550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite 2

The packing of the polymer battery:



550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite 3

The application of the polymer battery:

 (For bluetooth, headphone, pos machine, medical device, mobile, powerbank, GPS,iwatch....)

550mah 3.7V Lithium Polymer Battery 602540P With Aluminum - Plastic Coosite 4




Waranty for customer:

We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.

Q&a;A:

1.  Q: How long to make the cargos?
     A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life       ageing as well in every single pc. That will takes a fixed date.

 2.  Q:How to start the cooperate?
      A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.

 3. Q: What will be the packing?
     A:  We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.

 4. Q: Can the connectors be customized?
     A:  Yes, we can choose the right connector according your requirement.Or help to match your device

.

 5  Q: Is OEM/ODM battery pack available?

     A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.



 6 Q: What information do you need to make a customized battery pack?

    A: We need the details below:

        1. Size of the battery pack you need in mm.

        2. Capacity of the Battery pack.

        3. Voltage of the battery pack.

        4. Max discharge current.

        5. Cable and connector types you need.

        6. Casing and Terminals if required.

        7. Any protection circuits you may need.



 7  Q: How do you arrange shipment for batteries?

     A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).



 8  Q: Do you have the documents required for battery shipments?

     A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.



For more info please contact me freely, wish my 13years experience in battery area  can help you in your project.
