| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, IEC62133, UN38.3 |
| Model Number: | 902540 720mAh |
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negotiable |
| Packaging Details: | 20pcs/blister palet, 20bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer,pure Cobalt | SIZE: | 902540 |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 720mAh |
| Contant Discharge Current: | 20C For Cell, 10C For Pack | Resistance: | ≤ 70 MΩ |
| Weight: | 17.6g | Dimensions(T.W.H.): | Thickness: 10.0 Mm Max, Width: 26.5 Mm Max, Length: 45.0 Mm Max |
| High Light: | high capacity lithium polymer battery,high power lipo battery |
||
20C High Discharge Rate UAV Drone Lithium Polymer Battery 902540P 720mah 3.7V
with UL, CB, KC, IEC62133 UN38.3
1. Products info and draw.
2. Cell specification and safty performance.
| No. | Items | Specifications | Remark |
| 1 | Nominal Capacity | 720 mAh | 0.5 C discharge |
| 2 | Minimum. Capacity | 684 mAh | 0.5 C discharge |
| 3 | Charge Voltage | 4.2 ± 0.08 V | |
| 4 | Charge Current | Standard charge : 0.5 C ( 360 mA) | 3.0 hours (Ref.) |
| Rapid charge 1.0 C ( 720 mA) | 2.0 hours (Ref.) | ||
| Max. charge current:1.0 C (720mA ) | |||
| 5 | Cont.. Discharge Current | 20.0 C ( 14400 mA ) | single cell |
| 10.0 C ( 7200mA ) | pack | ||
| 6 | Cutoff Voltage | 3V | |
| 7 | Resistance | ≤70mΩ | 1kHz AC Method |
| 8 | Weight (Approx.) | 17.6 g | WITH PCM |
| 9 | Dimensions(T.W.H.) | Thickness : 10.0 mm max | |
| Width: 26.5 mm max | WITH PCM | ||
| Length: 45.0 mm max | |||
| 10 | Operating Teerature | Charge: 0 ~ 45℃ | |
| Discharge: -10~50℃ | |||
| 11 | Storage Teerature | Short period less than 1 month | -20℃~45℃ |
| Long period more than 1 month | -10℃~30℃ |

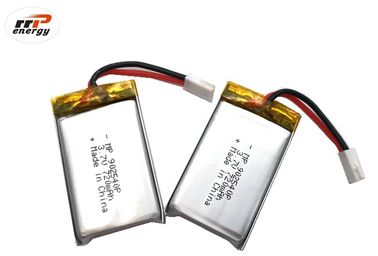

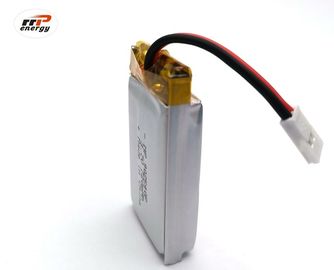

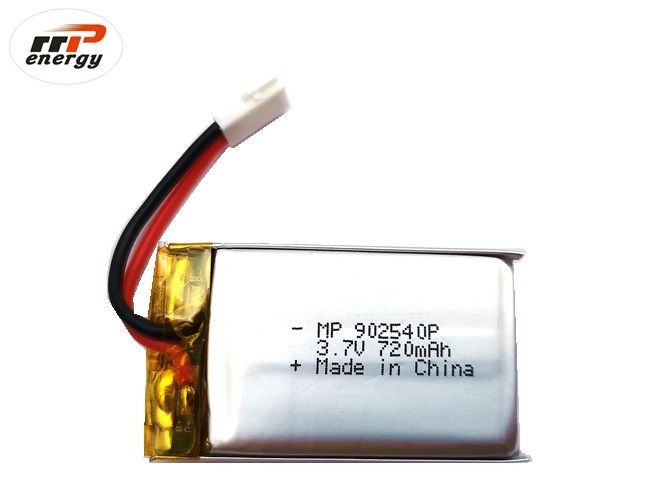

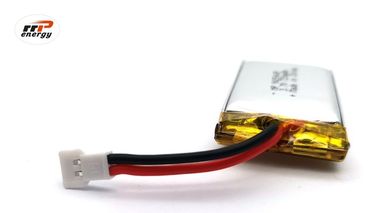

3. More PIC of 902540 battery.
The customized connectors we normally use for UAV Drone:
EC3, EC5,JST,TRX,XT60, XT90, XT150, AS150...
The packing of the polymer battery:
The application of this polymer battery: (For UAV,DRONE....)
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
