|Place of Origin:||Made in China|
|Certification:||CB, CE, KC, IEC62133|
|Model Number:||113445 1800mAh|
|Minimum Order Quantity:||3000pcs|
|Packaging Details:||12pcs/blister palet, 20bllister pallet/ctn|
|Delivery Time:||10-30days according stock situation|
|Payment Terms:||L/C, T/T, Western Union|
|Material:||Lithium Polymer,pure Cobalt||Voltage:||3.7V|
|Capacity:||1800mAh||Contant Discharge Current:||1C|
|Dimensions(T.W.H.):||Thickness: 11.5 Mm Max, Width: 50.5 Mm Max, Length: 73.0 Mm Max||Inner Resistance:||Cell ≤58mΩ Pack ≤220mΩ|
high capacity lithium polymer battery,
high power lipo battery
1. Products info and draw.
2. battert pack specification
|1||Capacity for assembled cell discharging by 0.2C||≥1800mAh||Standard discharging method|
|2||Battery Voltage||3.8V~4.05V||Delivery voltage, within 10 days from Factory|
|3||Standard charge condition||Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C||Charge volage:4.2V±0.02V Charge current:0.2C|
|4||Standard discharging method||0.2C constant current discharge to 3.0V||0.2C CC discharge to V=3.0V|
|5||Internal Impedance||Assemblage Impedance ≤220mΩ||Measure two sides of the drawing line after assembling.|

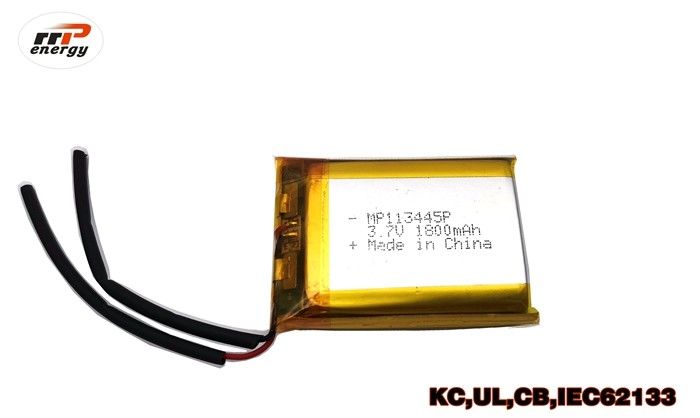

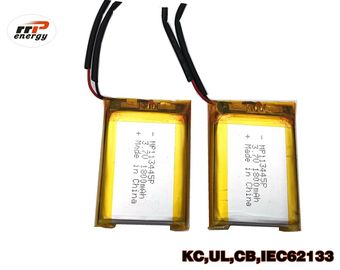

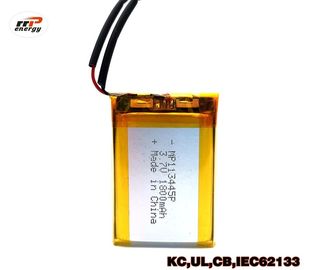

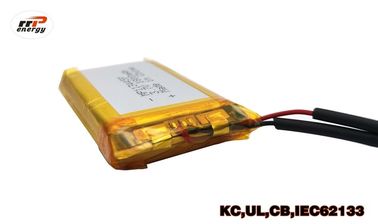

3. More PIC of 113445 battery.
The packing of lithium polymer battery:
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high temperature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sample orders. In 3-5days will be ready the samples, then you test.We make the standard according the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
