1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
1250mah 3.7V Lithium Ion Polymer Battery 5C Contant Discharge Current 653050 For Medical
Basic Properties
Place of Origin:
Made in China
Brand Name:
Maxpower/OEM
Certification:
CB, CE, KC, ROHS, UN38.3
Model Number:
103450
Trading Properties
Minimum Order Quantity:
3000pcs
Price:
negociate
Payment Terms:
L/C, T/T, Western Union
Supply Ability:
200000pcs/day
Product Summary
653050 1250mah 3.7V Lithium Ion Polymer Battery for Medical use coly With UL CE KC IEC62133 ,UN38.3 1. Battery pack info and draw. No. Item Type Qty 1 Cell 653050 1 2 PCM DW01+8205*2+NTC 1 3 CONNECTOR JST XHP 3P opposite 4 UL1571 22AWG black ,yellow, red 1set 2. battert pack specification Typical ...
Product Custom Attributes
Highlight
high capacity lithium polymer battery
,high power lipo battery
Material:
Lithium Polymer,pure Cobalt
Voltage:
3.7V
Capacity:
1950mAh
Contant Discharge Current:
5C
Dimensions(T.W.H.):
Thickness: 4.2 Mm Max, Width: 20 Mm Max, Length: 25 Mm Max
Inner Resistance:
Cell ≤58mΩ Pack ≤220mΩ
Product Description
Detailed Specifications & Features
653050 1250mah 3.7V Lithium Ion Polymer Battery for Medical use coly With UL CE KC IEC62133 ,UN38.3
1. Battery pack info and draw.
| No. | Item | Type | Qty |
| 1 | Cell | 653050 | 1 |
| 2 | PCM | DW01+8205*2+NTC | 1 |
| 3 | CONNECTOR | JST XHP 3P | opposite |
| 4 | UL1571 22AWG | black ,yellow, red | 1set |
2. battert pack specification
- Typical capacity: 1250 mAh
- Min. capacity: 1250 mAh
- Iedance : ≤160mΩ
- Maximum Continuous Discharging Current: 4A
- Over Current: 4-8A
- Operating Consution Current: 7uA (Max)
- NTC Resistor: 7~13KΩ
- ESD Test: ±4KV

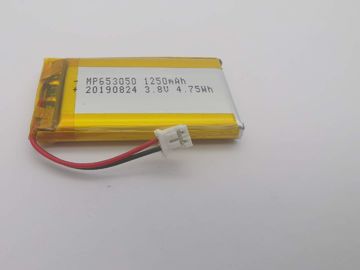

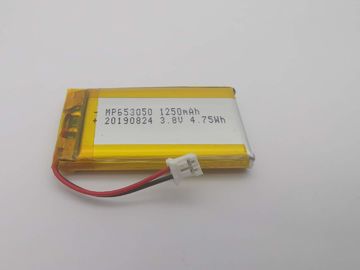

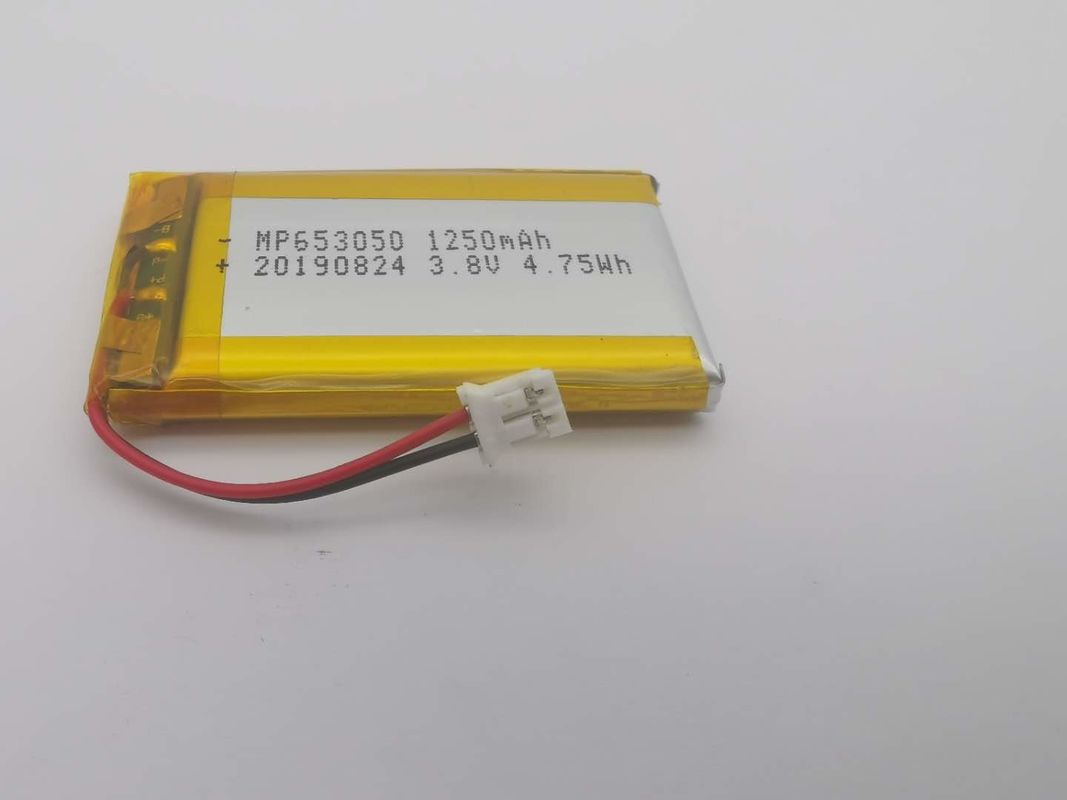

3. More PIC of 653050 battery.
The packing of the polymer battery:
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
