| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 351132 |
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negociate |
| Packaging Details: | 12pcs/blister palet, 20bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer,pure Cobalt | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 80mAh | Contant Discharge Current: | 20C |
| Dimensions(T.W.H.): | L*W*T=33*11.5*4mm | Inner Resistance: | Cell ≤120mΩ |
| High Light: | high capacity lithium polymer battery,high power lipo battery |
||
1. Battery pack info and draw.
2. battert cell specification
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 80mAh | 0.2C standard charge and discharge | |
| 2 | Minimum Capacity | 76mAh | 0.2C standard charge and discharge | |
| 3 | Nominal Voltage | 3.7V | Mean Operation Voltage | |
| 4 | Delivery voltage | 3.8V-4.05V | Within 10 days from Factory | |
| 5 | Charge Voltage | 4.2V±0.02V | By standard charge method | |
| 6 | Standard charging method | 0.5C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C | 0.5C CC4.2V CV charge to currency≤0.01C, time around 3hours | |
| 7 | Charge current | 0.5C | 40mA | Standard charge, charge time: 3h(Ref) |
| 1C | 80mA | Rapid Charge, charge time: 2h(Ref) | ||
| 8 | Standard discharging method | 0.2C constant current discharge to 3.0V | ||
| 9 | Cell Internal Iedance | ≤120mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| 10 | Max charge current | 1.0C | For continuous charging mod | |
| 11 | Max Continuous Discharge current | 20C | ||
| 12 | Peak discharge current | 40C | ||
| 13 | Operation Teerature and relative humidity Range | Charge | 0~45℃ | Charge at a very low teerature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| 60±25%R.H. | ||||
| Discharge | -20~60℃ | |||
| 60±25%R.H. | ||||
| 14 | Storage teerature for a long time | -20~25℃ | Do not storage exceed half year. Must charge once when storage for half year. Must charge the battery which with protect circuit when storage for three months. | |
| 60±25%R.H. | ||||

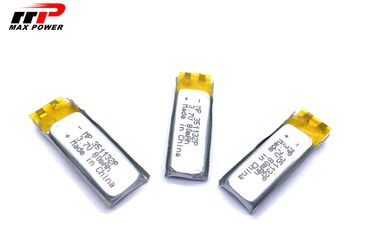

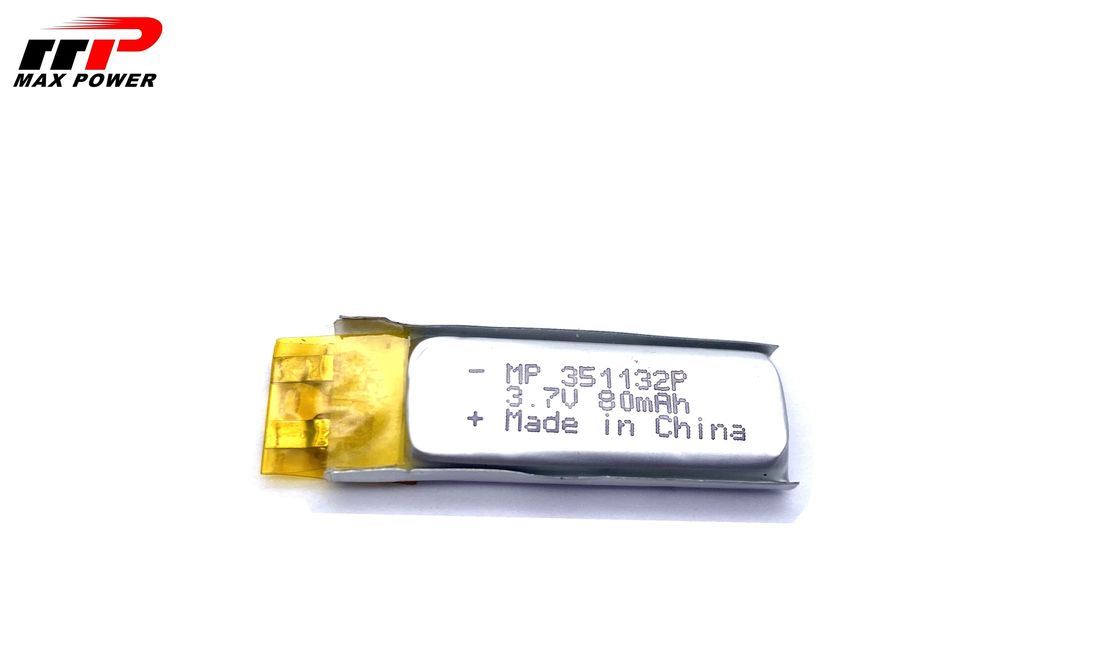

3. More PIC of 351132 battery.
The packing of the polymer battery:
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
