Low Teerature Li Polymer Battery 8042130 5300 MAh 3.7V For Power Tools

Product Details:

Place of Origin:	Made in China
Brand Name:	Maxpower/OEM
Certification:	CB, CE, KC, ROHS, UN38.3；IEC62133
Model Number:	8043130

Payment & Shipping Terms:

Minimum Order Quantity:	3000pcs
Price:	negociate
Packaging Details:	12pcs/blister palet
Delivery Time:	10-30days according stock situation
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	200000pcs/day

Contact Now

Detailed Product Description

Material:	Lithium Polymer,pure Cobalt	Voltage:	3.7V
Capacity:	5300 MAh	Contant Discharge Current:	15C-30C
Dimensions(T.W.H.):	LWT=421308mm	Inner Resistance:	Cell ≤80mΩ
Highlight:	high capacity lithium polymer battery , high power lipo battery

LOW Teerature Li Polymer Battery 8042130 5300 mAh 3.7V for POWER TOOLS With KC CB ;IEC62133

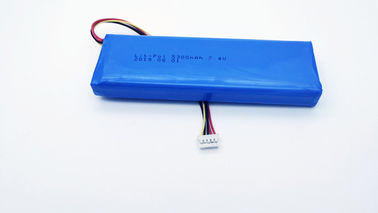

Low Teerature Li Polymer Battery 8042130 5300 MAh 3.7V For Power Tools 0

1. Specification

NO.	Item	Specifications		Notes
4.1	Nominal capacity	5300mAh		After the standard charge, 0.2C discharge 5.6V 0.2C 5.6V
	Minimum capacity	5200mAh
4.2	Initial Iedance	Pack ≤180mΩ		After standard charge,AC1KHz test
4.3	Weight	Approx(约):208g
4.4	Nominal voltage	7.4V
4.5	Charge limit voltage	8.4V
4.6	Discharge cut-off voltage	5.6V
4.7	Standard charge current	1060mA		Ambient teerature
4.8	Maximum charge current	2650mA		Ambient teerature 15~+45℃
4.9	Standard discharge current	1060mA		Ambient teerature -10~+55℃
4.10	Maximum discharge current	5300mA		Ambient teerature 10~+45℃
4.11	Charging time	6.0-8.0 hours(Ref.) 6.0-8.0		Standard Charging
		3.5 至4.5hours(Ref.) 3.5 至4.5		Rapid charge
4.12	Operating teerature	0℃~45℃	Charging
		-20℃~55℃	Discharging
	Storage teerature	-10℃~ +45℃	less than 1 month		Recommended storage teerature: 25℃,at the shipment state
		-10℃~ +35℃	less than 6 months

Recoverable capacity

Constant current 0.2C charge to 8.4V, then constant voltage 8.4Vcharge to current declines to 0.01C, rest for 10min,constant current 0.2C discharge to 5.6V,rest for 10min.Repeat above steps 3 times, recording the maximum capacity

Storage Humidity

≤75% RH

Appearance

Without distortion and leakage

Standard testing condition

Teerature : 25±2℃

Humidity : ≤75%RH

Atmospheric Pressure: 86-106 Kpa

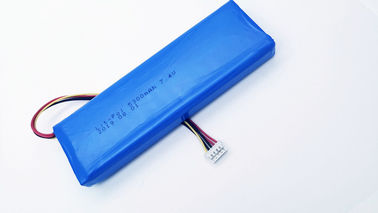

Low Teerature Li Polymer Battery 8042130 5300 MAh 3.7V For Power Tools 1
