|Place of Origin:||Made in China|
|Certification:||CB, CE, KC, ROHS, UN38.3|
|Model Number:||701435 300mAh|
|Minimum Order Quantity:||3000pcs|
|Packaging Details:||12pcs/blister palet, 288bllister pallet/ctn|
|Delivery Time:||10-30days according stock situation|
|Payment Terms:||L/C, T/T, Western Union|
|Material:||Lithium Polymer,pure Cobalt||SIZE:||701435|
|Contant Discharge Current:||1C||Resistance:||Cell≤ 120 MΩ|
|Dimensions(T.W.H.):||Thickness: 6.0 Mm Max, Width: 30.5 Mm Max, Length: 45.5 Mm Max||Peak Discharge Rate:||1C|
701435 Lithium Polymer Rechargeable Battery,
300mAh Lithium Polymer Rechargeable Battery,
MSDS Lithium Polymer Cell

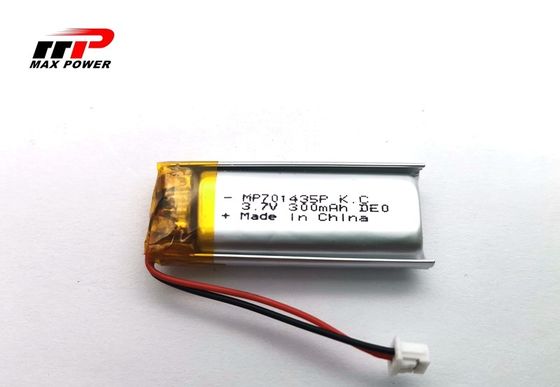

lithium polymer battery 701435 300mAh 3.7V for bluetooth smart led jump rope long cycles
with KC CB UL
1. Products info and draw.
2. Cell specification and safty performance.
|1||packing way||one cell|
|≤150mW(with pcb)temperature 25℃|
|4||Dimensions (mm)||≤6.0(T) * ≤30.5(W) *≤47.0(L) (mm)|
|6||Overcharge protection voltage||4.30V|
|7||Max. charge current||1.0C|
|8||Over discharge protection voltage||2.5V|
|9||Max discharge current||1.0C|
|10||Charge temperature||10℃ ～ + 45℃|
|11||Discharge temperature||-10℃ ～ + 55℃|
|12||Storage temperature||-5℃～ 35℃ recomend(25±5℃)|
|13||storage capacity||40%-50% of the full capacity|
|14||Storage humidity||≤ 75%|
|15||Cell Weight||Approx: 14.85g|
|16||Cell Dimension||Length : 45.5mm Max (not including tabs)|
|Width : 30.5mm Max|
|Thickness : 6.0mm Max|
3. More PIC and packing info. of lithium polymer 701435 300mAh battery.
The customized connectors can be use:
The packing of the polymer battery:
The application of the polymer battery:
(For medical device, bluetooth, headphone, pos machine, medical device, mobile,
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
1. Q: How long to make the cargos?
A: Need 30day around if we dont have stock of that model. Coz need strictly test and high temperature,high voltage life aging as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sample orders. In 3-5days will be ready the samples, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges shipments to all over the world. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
Contact Person: Jackie Xie
