| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 8553112 |
| Minimum Order Quantity: | 5000pcs |
|---|---|
| Price: | negociate |
| Packaging Details: | 12pcs/blister palet, 20bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 7000mAh | Contant Discharge Current: | 0.2C |
| Dimensions(T.W.H.): | Thickness: 8.5mm Max, Width: 53 Mm Max, Length: 112 Mm Max | Inner Resistance: | Cell ≤150mΩ Pack ≤220mΩ |
| Highlight: | 7000mah Lithium Polymer Battery,0.2C Lithium Polymer Battery,KC Ion Polymer Battery |
||
wide range teerature 752950 1200mah 3.7V Li Polymer Battery with UL ,IEC62133
It is high energy density lithium polymer battery pack
Thinner design &a; lighter weight with aluminum-plastic coosite
More than 500 cycles of charging &a; discharging life
Enhanced safety performance with Japan/Taiwan IC &a; MOS protectors
Easy to assemble with wires
OEM &a; ODM services for special size of lithium polymer battery
Rigorous testing to ensure the quality of all lithium polymer batteries
this battery can work at -30 ℃ and + 60 ℃
long cycle life
1. Battery pack info and draw.
|
No. |
Item |
Type |
Qty |
|
1 |
Cell |
752950 |
1 |
|
2 |
PCB |
1714 |
1 |
|
3 |
CONNECTOR |
molex 51021-2p negtive |
opposite |
|
4 |
WIRE 1571 26AWG |
black ,yellow, red |
1set |
2. battert pack specification
Typical capacity: 1200mAh
Min. capacity:1200mAh
Iedance : ≤158mΩ
DIMENSIONS: Thickness 75 mm* width 29.0mm* length 50.5mm
Distance of tab center: 13.5+/-2mm Tab width: 4+/-0.2mm

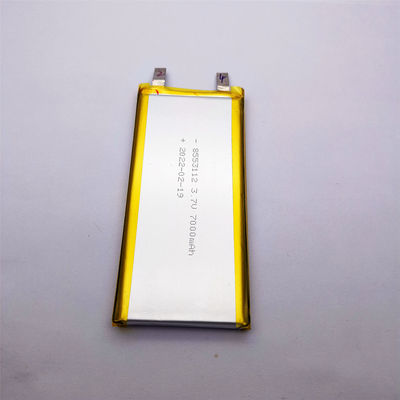

3. More PIC of 8553112 battery.
The packing of the polymer battery:
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
