| Place of Origin: | China |
| Brand Name: | MAXPOWER |
| Certification: | IEC62133,UN38.3,CE,ROHS,UL,REACH |
| Model Number: | MP- 601230 160 mAh 3.7V |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | TRAY / Blister packing |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2, 00, 000PCS |
| High Light: | high capacity lithium polymer battery,high power lipo battery |
||
|---|---|---|---|

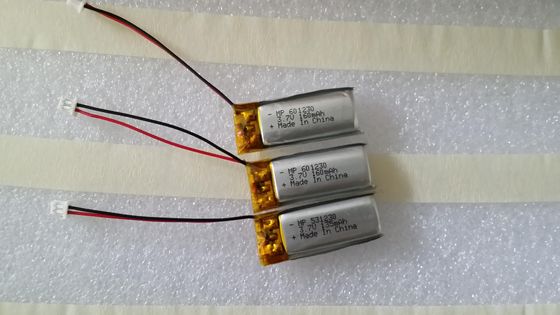

High & Low Temp 601230 160mAh 3.7V Lithium Polymer Battery Car Black Box IEC62133
Quick Detail:
1.Nominal Capacity: 160mAh
2.Nominal Voltage: 3.7V
3.Size: Thickness 6.0mm Width:12mm Length:30mm
4.High & Low Temperature: can work under minus 20 C.Degree and 70 C.Degree
5.Long life cycles up to 500 cycles
6.Certificate: IEC62133,CE,ROHS,UL,UN38.3,REACH
7.Abbreviations: LiPO,Li-poly,PLI,Li-pol,LIP or LiP battery
8.Discharge cut-off voltage: 3.0V
Description:
Can work under High Temp 70C. Degree and low temperature minus 20 C.Degree
Support high temperature storage up to 85 C.Degree
Long cycle life,High storage features
High energy density with light weight and small size
No memory effect
High voltage which is three times of NiMH or NiCd
Can be fast charged with exclusive Lithium ion battery charger under CC-CV mode.
High safety which passed UL-1642
Extremely Low self-discharge rate with 10% fading per month
Customized configuration or shape is welcome
Applications:
Car black box,Blue tooth device,headphones,PDAs,MP3 / MP4 player,digital cameras,digital camcorders,Medical devices,Eyeglass,Portable DVD,GPS Tracking,E-book,Notebook PC,Ipad, Net book,Tablet PC,Electronic toys etc.
Specifications:
|
Bitmap |
MAXPOWER INDUSTRIAL CO.LTD |
|
MP- Lithium Polymer battery specification |
|
|
Model |
MP- 601230 160mAh 3.7V |
|
Dimension |
60*12*30 MM (Thickness*Width*Length) |
|
Voltage |
3.7 V |
|
Capacity |
160 mAh |
|
Impedance |
<180 mΩ |
|
Discharge cut-off voltage |
3.0V |
|
Maximum Charge voltage |
4.2V |
|
Standard charge current |
0.2C |
|
Standard discharge current |
0.2C |
|
Approx Weight |
4g |
|
Working temperature |
Charge:0-70 degree |
|
Discharge:-20-70 degree |
|
|
Storage temperature |
minus 20 - 85 degree |
|
Normal temperature capacity |
160mAh |
|
Cycle life |
500-800 cycles |
Competitive Advantage:
Professional and good post-sales service
Good factory price
High quality with 1 year warranty
Prompt delivery according to customer request
Communication with customers
A: Does Lithium Polymer battery have memory effect?
B: No memory effect.
A: what is the cycle life for the Lithium Polymer battery?
B: Cycle life is the number of charge and discharge cycles a battery can achieve
Before the discharged capacity drops to end of life, our Lithium Polymer battery cycle life can reach 500 cycles
A: What is the post-sales service?
B: We provide one year quality warranty after delivery and 0.1% spare parts.
A: How do you deliver the battery?
B: We can do sea or air shipment for storage battery with authorized MSDS and Guarantee Letter. They are usually 30% pre-recharged before shipment.
