| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 952238 |
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negociate |
| Packaging Details: | 12pcs/blister palet, 20bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer,pure Cobalt | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 750mAh | Contant Discharge Current: | 1C 750mA |
| Dimensions(T.W.H.): | L*W*T=38.5*22.5*9.5mm | Inner Resistance: | Cell ≤90mΩ |
| Charge Current: | 150mA | ||
| Highlight: | 750mAh 3.7 v polymer lithium battery,3.7 v lithium polymer battery,3.7 volt lithium polymer battery |
||
1. 952238 Battery pack info and draw.
2. 952238 battery cell specification
| 3.7V 180mAh Lithium Polymer Battery | Li-Polymer battery 3.7V 952238 750mAh Specification |
| Lithium Polymer Battery manufacture | MaxPower Industrial Co.,Ltd |
| LiPolymer HS CODE | 8507600090 |
| Normal Capacity | 750mAh |
| Resistance | less than 90mOhms |
| Normal Voltage | 3.7V |
| Charging Voltage | 4.2V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Dimension | L*W*T=27*20.5*4.4mm See the drawing details |
| Charge current | 150mA |
| Rapid charge | 750mA |
| Recommend discharge current | 150mA |
| Max. discharge current | 1500mA |
| Operation Teerature | -20-60 degree |
| Weight | 13g |
| Quality Guarantee | One years |
| Battery document | CB Data sheet MSDS UN38.3 Quality guarantee Letter |
| Application | medical device, bluetooth, electronics, electrical toothbrush, headphone, speaker, toys, light, sports bracelet, power bank, |
| Sale lead time | 5-8 working days |
| Mass Production lead time | 10-15 working days |
422025 battery application:

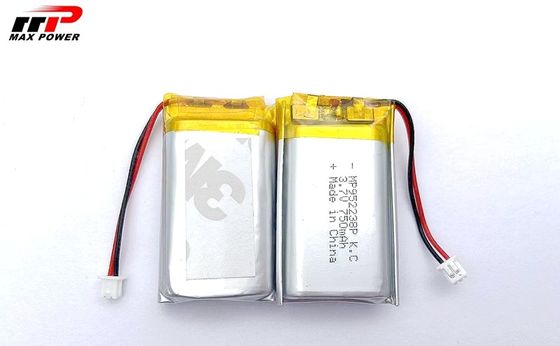

3. More PIC of 952238 battery.
The packing of the polymer battery:
Waranty for customer:
We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have the stock of that model. Coz need strictly test and high teerature,high voltage life ageing as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
