| Place of Origin: | Made in China |
| Brand Name: | Maxpower/OEM |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 302631 220mAh |
| Minimum Order Quantity: | 3000pcs |
|---|---|
| Price: | negociate |
| Packaging Details: | 12pcs/blister palet, 288bllister pallet/ctn |
| Delivery Time: | 10-30days according stock situation |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200000pcs/day |
| Material: | Lithium Polymer,pure Cobalt | SIZE: | Thickness*wideth*hight=3.0mm*26mm*31mm |
|---|---|---|---|
| Voltage: | 3.7V | Capacity: | 220mAh |
| Contant Discharge Current: | 1C | Resistance: | Pack≤ 280 MΩ |
| Peak Discharge Rate: | 1C | Model: | PC302631 |

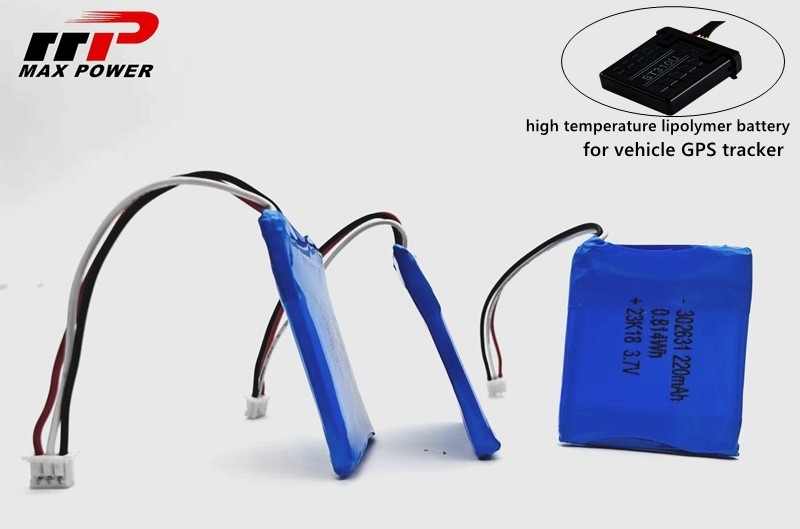

PC302631 220mah 3.7V Li polymer battery for vehicle GPS device KC certified
1. Products info and draw.
2. PC302631 220mAh 3.7V specification and safty performance.
| 3.7V 220mAh Lithium Polymer Battery | Vehicle GPS Tracking device lithium polymer battery |
| Lithium Polymer Battery Manufacture | MaxPower Industrial Co.,Ltd |
| H.S. Code | 850600090 |
| Normal Capacity | 220mAh |
| Normal Voltage | 3.7V |
| Energy | 0.814wh |
| Dimension | 3.0mm *26.5 mm * 31.0mm |
| Internal Resistance | Less than 280mOhms |
| Charging Voltage | 4.2V |
| Discharge Cut Off Voltage | 2.4V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Weight | 50g |
| Charge current | 44mA |
| Continuous discharge Current | 1C 220mA |
| battery protection function | over charge Protection ,over discharge protection ,teerature and balance function |
| Operation Teerature | -20-60 degree |
| Quality Guarantee | Two years |
| Application | GPS,Personnel tracking, cargo tracking ,power bank,tablet |
| Solar System battery , EV ,EBIKE UPS,RV Caer | |
| Sale lead time | 6-8 working days |
| Mass Production lead time | 10-15 working days |

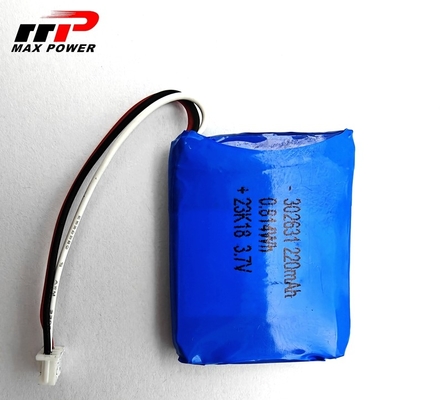

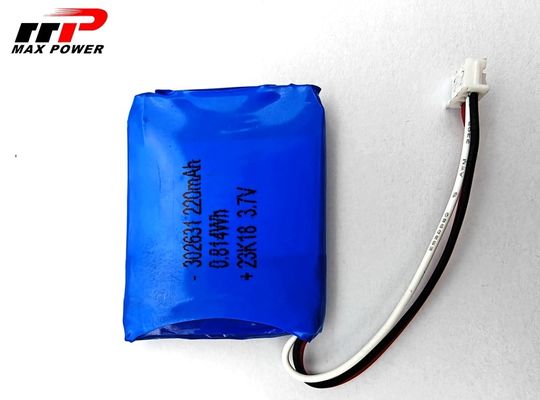

3. More PIC of PC302631 220mAh 3.7V battery.
OEM service(our factory are producing more than 5000 nos. of polymer battery models for your choice, also we can design for your device if have enough qty) : the customized connectors we normally use as following for your ref.
The packing of the polymer battery:
The application of the polymer battery:
(For bluetooth, headphone, pos machine, medical device, mobile, powerbank, GPS,iwatch....)
Waranty for customer:
We give 2 years warranty. If the battery has problem coz of our quality issue, We will give replacement any time.
Q&a;A:
1. Q: How long to make the cargos?
A: Need 30day around if we dont have stock of that model. Coz need strictly test and high teerature,high voltage life aging as well in every single pc. That will takes a fixed date.
2. Q:How to start the cooperate?
A: Lets start with the sale orders. In 3-5days will be ready the sales, then you test.We make the standard according
the data sheet which we give.Once you confirm the quality, we can talk for further.
3. Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4. Q: Can the connectors be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device
.
5 Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6 Q: What information do you need to make a customized battery pack?
A: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.
7 Q: How do you arrange shipment for batteries?
A: We have long-standing forwarder partner who arranges shipments to all over the world. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
8 Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
For more info please contact me freely, wish my 13years experience in battery area can help you in your project.
