Place of Origin: | China |
Brand Name: | MP/OEM brand |
Certification: | PSE, KC, CB, UL |
Model Number: | 21700 25Ah 22.2V |
Minimum Order Quantity: | 100PCS/ORDER |
---|---|
Price: | negotiate |
Packaging Details: | 100pks/ctn |
Delivery Time: | 3-5days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500000pcs/day |
Material: | Li-ion Battery Cell | Color: | BLUE/grey/orange |
---|---|---|---|
Voltage: | 22.2V | Capacity: | 25Ah |
Cycle Life: | 500times | Size: | T73.5*W110*L200MM |
Weight: | 2400g | Maxdischarge: | 15A |

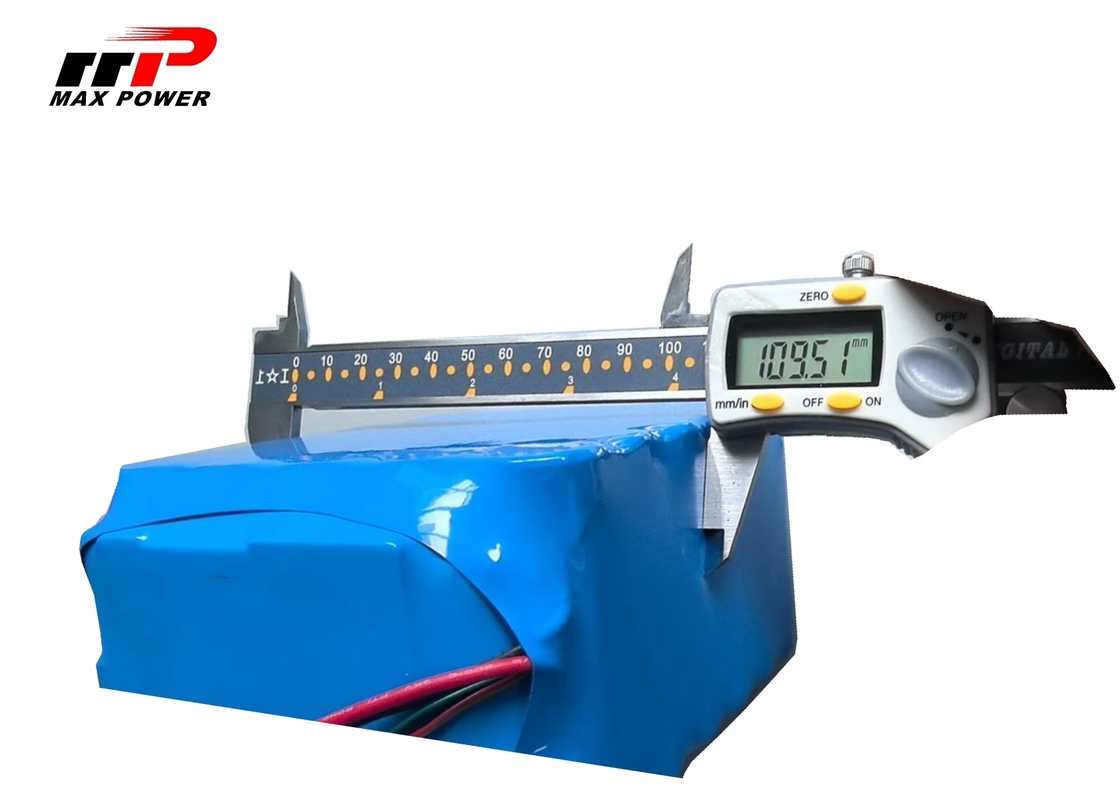

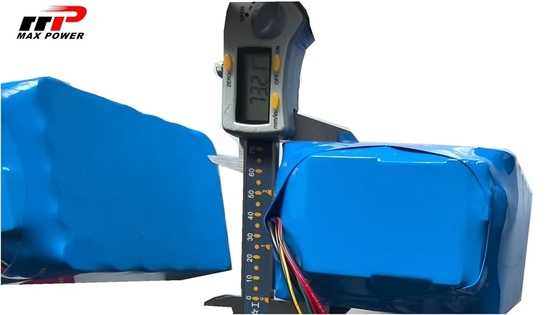

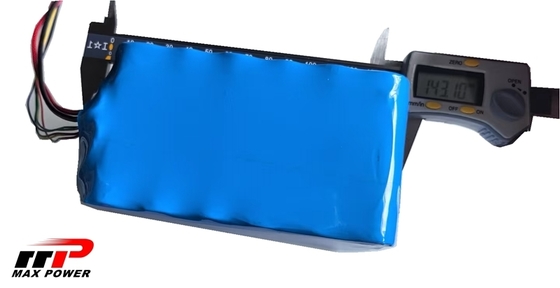

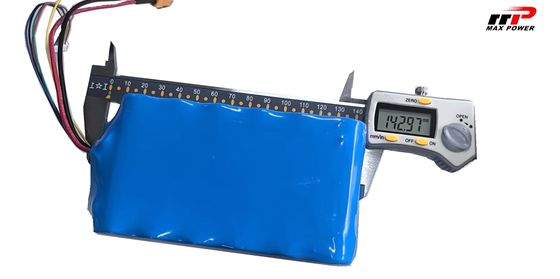

22.2V 21700 25AH Lithium-ion Battery For ROBOT with 485 communication smart 6 series 15A discharge
Quick view:
NO | Item | Specifications |
1 | Assemblymode: | 6S5P |
2 | Capacity: | 25Ah |
3 | Nominal voltage: | 22.2V |
4 | Impedance ≤ | 300mΩ |
5 | Dimensions(mm) : | T:≤73.5mm *W:≤110mm *H≤143mm |
6 | Weight(g): | about 2400g |
7 | overcharge protection voltage | 25.5V |
8 | Max.chargecurrent : | 15A |
9 | over discharge protection voltage | 16.2V |
10 | Maxdischargecurrent : | 15A |
11 | Charge temperature: | 0℃~+45℃ |
12 | Discharge temperature: | -20℃~+60℃ |
13 | Storage temperature:-5℃~35℃: | (better in 25±5℃) charge to 40%~50% of full capacity when storage |
14 | Storage humidity: | ≤75% |
15 | Delivery Voltage: | ≥21.6V |
XT60 female connector 3239-16AWG
Application: ROBOT PROJECT
The packing info.
Industrial brown box
1. All goods are 100% inspected and packed very well.
2. standard industrial use packing; 120pcs/6box/ctn
OEM PACK SERVICE:
Delivery:
Air or Sea transportation are available.
For sales:delivery within 1-2 days.
For formal order: Within 100k pcs, 7days around; 100-500k pcs, 10 days around; over 500k pcs, 15 days around.
Garrantee:
Our company gives garrantee for 1 year.
For more info. Please feel free to contact me in any way below, hope 14years of battery area working experance can help you out.
