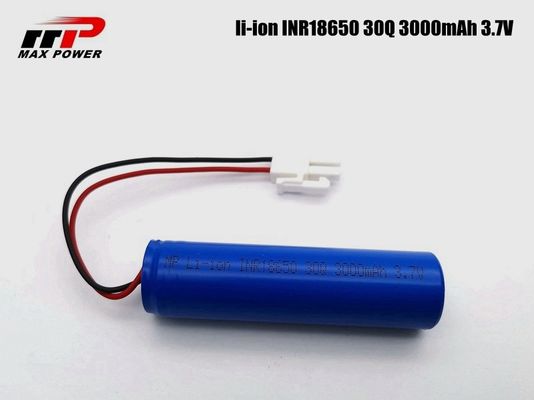

5C Discharge 3000mAh 3.7V 30Q SAM 15A 18650 Li ion Cell for gas and fire detector
5C Discharge 3000mAh 3.7V 30Q SAM 15A 18650 Li ion Cell for gas and fire detector
Basic Properties
Place of Origin:
China
Brand Name:
MaxPower
Certification:
CE UL CB UN38.3 MSDS IEC ENC BIS
Model Number:
18650 3000mAh
Trading Properties
Minimum Order Quantity:
1000PKS
Price:
Negotiation
Product Summary
18650 3000mAh 3.7V 30Q SAM cell 15A 5C discharge rate Rechargeable cylindrical Lithium Ion Batteries CE BIS IEC2133 CB Lithium Ion Battery 18650 2300mAh 3.7V (series models are as below) High top Or Flat Top is available Normal type Li-ion Cell or High Rate 5C 10C 25C 30C with customer design The ...
Product Custom Attributes
Highlight
15A 18650 Li Ion Cell
,3000mAh 18650 Li Ion Cell
,5C Discharge 30Q SAM Cell
Battery Type:
Li-ion Cell
Capacity:
3000mAh
Voltage:
3.7V
Cell Weight:
48g
Guarantee:
One Year
Life Cycle:
2000 Cycles
Internal Resistance:
≤26 MΩ
Size:
D18.4mm*H65.3mm
Product Description
Detailed Specifications & Features
18650 3000mAh 3.7V 30Q SAM cell 15A 5C discharge rate Rechargeable cylindrical
Lithium Ion Batteries CE BIS IEC2133 CB
- Lithium Ion Battery 18650 2300mAh 3.7V (series models are as below)
- High top Or Flat Top is available
- Normal type Li-ion Cell or High Rate 5C 10C 25C 30C with customer design
- The logo with MaxPower or OEM brand
- Accept the trial order around 1K with courier door to door service
- UL CE ROSH KC IEC62133 CCC UN38.3 MSDS BIS certification is aviliable for many li-ion battery models
- Original iorted 18650 cells is available MP HE4 Samsung Panosonic ETC.
- We accept the Customized battery pack and design OEM and ODM project .
Specification of the 18650 3000mAh battery:
| No | Item | Specification |
| 1 | Nominal discharge capacity | 3,000mAh |
| 2 | Charge: | 1.50A, 4.20V,CCCV 150mA cut-off, |
| 3 | Discharge: | 0.2C, 2.5V discharge cut-off |
| 4 | Nominal voltage | 3.6V |
| 5 | Standard charge CCCV, | 1.50A, 4.20 ± 0.05 V, 150mA cut-off |
| 6 | Rapid charge CCCV, | 4A, 4.20 ± 0.05 V, 100mA cut-off |
| 7 | Charging time | |
| 8 | Standard charge : | 180min / 150mA cut-off |
| 9 | Rapid charge: | 70min (at 25℃) / 100mA cut-off |
| 10 | Max. continuous discharge(Continuous) | 15A(at 25℃), 60% at 250 cycle |
| 11 | Discharge cut-off voltage(End of discharge) | 2.5V |
| 12 | Cell weight | 48.0g max |
| 13 | Cell dimension | Height : 64.85 ± 0.15mm |
| Diameter : 18.33 ± 0.07mm | ||
| 14 | Operating teerature(surface teerature) | |
| 15 | Charge : | 0 to 50℃(recommended recharge release < 45℃) |
| 16 | Discharge: | -20 to 75℃(recommended re-discharge release < 60℃) |
| 17 | Storage teerature(Recovery 90% after storage) | 1.5 year -30~25℃(1*) |
| 3 months -30~45℃(1*) | ||
| 1 month -30~60℃(1*) |
| Discharge condition(Current) | 0.6A | 5A | 10A | 15A | 20A |
| Relative Capacity | 100% | 97% | 100% | 97% | 95% |
More pics.
Application :
Torches , Flash light ,power tools , LED light , Emergency lighting, Toys ,
Robot ,Medical device ,sweeper , E-Bike ,Consumer devices ETC.
Hot saling model:
| models | capactity | models | capactity | note |
| 18650 | 1200mAh | 18350 | 700mah | |
| 18650 | 1300mAh | 36600 | 7500mah | (militery use) |
| 18650 | 1500mAh | 32600 | 5000mah | (militery use) |
| 18650 | 1800mAh | 18500 | 1900mah | |
| 18650 | 2000mAh | 18500 | 1200mah | |
| 18650 | 2200mAh | 16310 | 850mah | |
| 18650 | 2500mAh | 10840 | 650mah | |
| 18650 | 2600mAh | 16650 | 1600mah | |
| 18650 | 3400mah | 14650 | 1000mah |
Regular saling models:
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | |
| 1 | Lithium Cylindrical | 13490 | 650 | 3.7 | 12.9 | 48.5 | |
| 2 | Lithium Cylindrical | 14430 | 650 | 3.7 | 13.9 | 42.5 | |
| 3 | Lithium Cylindrical | 14500 | 700 | 3.7 | 13.9 | 64.5 | |
| 4 | Lithium Cylindrical | 14650 | 800 | 3.7 | 13.9 | 64.5 | |
| 5 | Lithium Cylindrical | 14650 | 1100 | 3.7 | 13.9 | 64.5 | |
| 6 | Lithium Cylindrical | 17280 | 600 | 3.7 | 16.65 | 27.5 | |
| 7 | Lithium Cylindrical | 17335 | 750 | 3.7 | 16.65 | 33.5 | |
| 8 | Lithium Cylindrical | 17500 | 1100 | 3.7 | 16.65 | 48.5 | |
| 9 | Lithium Cylindrical | 17650 | 1200 | 3.7 | 16.65 | 64.5 | |
| 10 | Lithium Cylindrical | 17650 | 1600 | 3.7 | 16.65 | 64.5 | |
| 11 | Lithium Cylindrical | 18490 | 1200 | 3.7 | 18.05 | 48.5 | |
| 12 | Lithium Cylindrical | 18490 | 1400 | 3.7 | 18.05 | 64.5 | |
| 13 | Lithium Cylindrical | 18650 | 1400 | 3.7 | 18.05 | 64.5 | |
| 14 | Lithium Cylindrical | 18650 | 1800 | 3.7 | 18.05 | 64.5 | |
| 15 | Lithium Cylindrical | 18650 | 2000 | 3.7 | 18.05 | 64.5 | |
| 16 | Lithium Cylindrical | 18650 | 2200 | 3.7 | 18.05 | 64.5 | |
| 17 | Lithium Cylindrical | 18650 | 2600 | 3.7 | 18.05 | 65.5 | |
| 18 | Lithium Cylindrical | 18740 | 1600 | 3.7 | 18.05 | 71.5 | |
| 19 | Lithium Cylindrical | 21750 | 3200 | 3.7 | 21.5 | 74.5 | |
| 20 | Lithium Cylindrical | 22430 | 2000 | 3.7 | 22.05 | 42.5 | |
| 21 | Lithium Cylindrical | 26650 | 3000 | 3.7 | 26.05 | 64.5 | |
| High Rate Series Li-ion 18650 re-chargeable battery | |||||||
| No. | Type | Models | Capacity (mAh) | Nominal Voltage (V) | diameter ±0.05(mm) | Height ±0.5(mm) | Discharge Rate(10C) |
| 1 | Lithium Cylindrical | 18650P-1100 | 1100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 2 | Lithium Cylindrical | 18650P-1200 | 1200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 3 | Lithium Cylindrical | 18650P-1300 | 1300 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 4 | Lithium Cylindrical | 18650CP-1400 | 1400 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 5 | Lithium Cylindrical | 18650CP-1500 | 1500 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 6 | Lithium Cylindrical | 18650CP-1600 | 1600 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 7 | Lithium Cylindrical | 18650CP-1700 | 1700 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 8 | Lithium Cylindrical | 18650CP-1800 | 1800 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 9 | Lithium Cylindrical | 18650CP-1900 | 1900 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 10 | Lithium Cylindrical | 18650CP-2000 | 2000 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 11 | Lithium Cylindrical | 18650CP-2100 | 2100 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
| 12 | Lithium Cylindrical | 18650CP-2200 | 2200 | 3.7 | 18.05 | 64.5 | 10C 15C 20C |
For more info please contact me freely, wish 13years experience in battery area can help you out
in your project.
