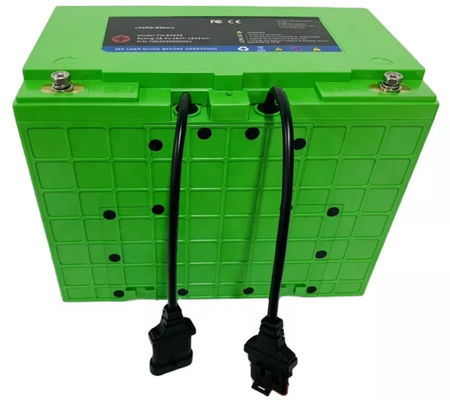

12V battery module LiFePO4 automotive batteries
with high voltage and capacity
1. Passed ECE R100 (EV safety regulation in Europe)
2.12V lifepo4 battery module support in series and Parallel connection
3. Battery cell cycle life more than 4000 cycles (80% DOD)
4.RS485 Support and Customize protocol is supported
5.Easy installation and easy maintenance
6.mature technology with over 10 years manufacturing experience
| 12V Battery module |
Specification
|
|
One Battery module
|
145AH
|
|
Size
|
310 mm x 180 mm x 234 mm
|
|
Terminals, Female- Threaded
|
M8*1.25
|
|
Weight
|
20kg
|
|
Nominal module voltage
|
12.8V
|
|
Maximum module voltage
|
14.6V
|
|
Minimum module voltage
|
10.0V
|
|
Nominal load current
|
150A max. continuous current @ 23° C
|
|
Peak load current
|
300A max for 30 sec @ 23° C
|
|
Stand charge voltage
|
14.6V
|
|
Recommend charge current
|
73A ( 0.5C)
|
|
Charge time
|
2.5h
|
|
Operating Teerature
|
Charge:0-45℃, Discharge: -20-60℃
|
|
|
Energy storage systems, AGV, Forklifts
Hybrid or electric vehicle etc.
|
The battery module support the:
Max.48 modules in series 12V to 750V
Max. 126 batteries in Parallel and mix series
and parallel connection
The LFP battery in a variety of capacities, can be used to building block of a larger energy storage system by assembling in series of parallel.Prototype systems can be assembled faster than any time previously, therefore reducing project development time and
decreasing non-recurring engineering expense
more 12V lithium lifepo4 battery modules with different capacity available :
| Specification |
12.8V45Ah |
12.8V118Ah |
25.6V56Ah |
12.8V145Ah |
25.6V72Ah |
38.4V48Ah |
| Voltage |
12.8V |
12.8V |
25.6V |
12.8V |
25.6V |
38.4V |
| Capacity (C/2) |
45Ah |
118Ah |
56Ah |
145Ah |
72Ah |
48Ah |
| Size (L*W*H)mm |
197*131*183 |
260*172*225 |
260*172*225 |
310*180*234 |
310*180*234 |
310*180*234 |
| Weight |
6.1Kg |
15.8Kg |
15.8Kg |
20Kg |
20Kg |
20Kg |
| Terminals Female-threaded |
M6*1.0 |
M8*1.25 |
M8*1.25 |
M8*1.25 |
M8*1.25 |
M8*1.25 |
| Specific Energy |
94Wh/kg |
96Wh/kg |
91Wh/kg |
95Wh/kg |
99Wh/kg |
94Wg./kg |
| Standard Discharge |
Charge time |
80A |
150A |
112A |
200A |
140A |
96A |
| max. 30 sec pulse |
120A |
300A |
168A |
400A |
350A |
150A |
| cut-off voltage |
10V |
10V |
20V |
10V |
20V |
30V |
| Standard Charge |
Charge voltage |
14.6V |
14.6V |
29.2V |
14.6V |
29.2V |
43.8V |
| Float |
13.8V |
13.8V |
27.6V |
13.8V |
27.6V |
41.4V |
| max. cont current |
22.5A |
59A |
28A |
72A |
36A |
24A |
| Charge time |
2.5hrs |
2.5hrs |
2.5hrs |
2.5hrs |
2.5hrs |
2.5hrs |
| DC internal Resistance (approx) |
15mΩ |
6mΩ |
16mΩ |
5mΩ |
15mΩ |
25mΩ |
The lifepo4 battery module 12V,0V:the supply of the BMS from e-boat controller or DC-DC
CAN bus: CAN L and CAN H. This CAN is dedicated to the link between e-boat controller and BMS
The lifepo4 battery pack module widely used for :
nergy storage system, AGV, forklifts,EV CAR ,
E-Car two wheels vehicles E-boat etc
